Quick Details
-
Type:
-

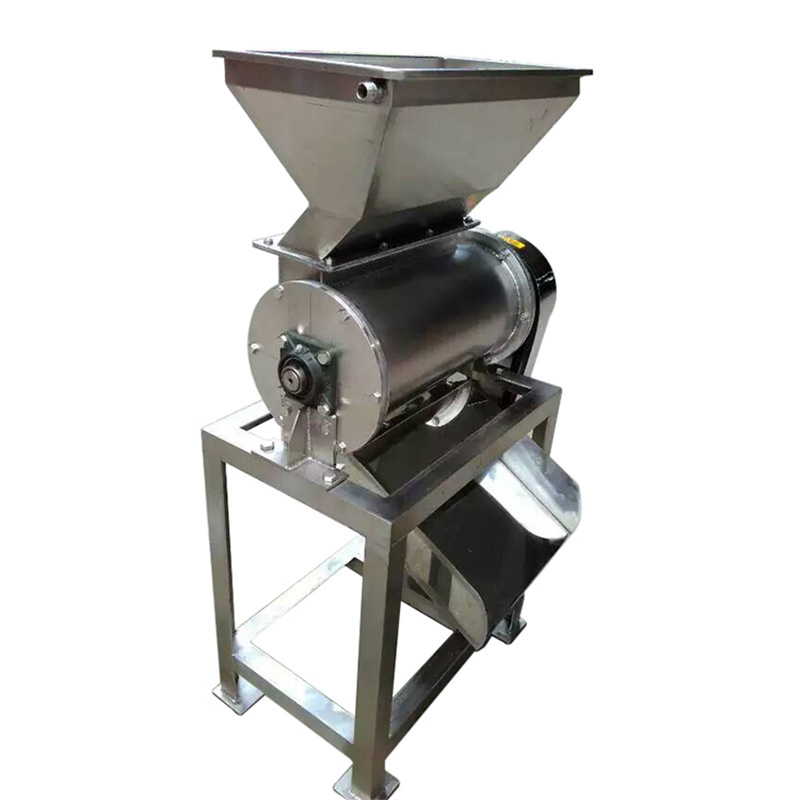

Fruit and vegetable crusher
-
Voltage:
-
220V/380V
-
Power:
-
2.2-15kw
-
Weight:
-
170 KG
-
Dimension(L*W*H):
-
550*380*1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KINDING
-
Type:
-
Fruit and vegetable crusher
-
Voltage:
-
220V/380V
-
Power:
-
2.2-15kw
-
Weight:
-
170 KG
-
Dimension(L*W*H):
-
550*380*1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Products Description
Application
The machine is widely used for material crushing in the industries of chemical and foodstuff, etc. It can be the first step equipment of fine grinding.
Working Principle
The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being fed into the grinding chamber through the upper feeder, grinded by the revolving and fixed knives, and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to ‘GMP’ standard, with the characteristics of compact structure, easy washing, and low noise. It is not affected by material viscosity, hardness, softness, fiber and other restrictions. It plays a good effect to any material.
|
Model
|
Capacity (kg/h)
|
Spindle speed
|
Feeding size (mm)
|
Fineness (mesh)
|
Power (kw)
|
Weight (kg)
|
Overall dimension (mm)
|
|
KDCS-100
|
15-100
|
500r/min
|
≤50
|
0.5-20
|
2.2
|
170
|
550*380*1000
|
|
KDCS-200
|
30-300
|
|
≤50
|
|
3
|
220
|
600*400*1000
|
|
KDCS-300
|
50-500
|
|
≤100
|
|
4
|
300
|
700*500*1100
|
|
KDCS-400
|
100-800
|
|
≤150
|
|
5.5
|
380
|
800*780*1300
|
|
KDCS-500
|
150-1000
|
|
≤200
|
|
7.5
|
490
|
850*840*1450
|
|
KDCS-600
|
200-1500
|
|
≤250
|
|
11
|
660
|
920*900*1600
|
|
KDCS-800
|
300-2000
|
|
≤250
|
|
15
|
850
|
1150*1050*1600
|
