Quick Details
-
Injection Rate (g/s):
-
71 g/s
-
Injection Weight (g):
-
80 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
1300 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
TFV4-35
-
Power (kW):
-
9.1 kW
-
Oil Tank Capacity:
-
130L
-
Motor Power:
-
5.5Kw
-
Heater Power:
-
3.6Kw
-
Certification:
-
CE
Quick Details
-
Ejector Stroke(mm):
-
40 mm
-
Ejector Force(kN):
-
17.2 kN
-
Theoretical Shot Volume(cm³):
-
86 cm³
-
Injection Rate (g/s):
-
71 g/s
-
Injection Weight (g):
-
80 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
1300 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
TFV4-35
-
Power (kW):
-
9.1 kW
-
Oil Tank Capacity:
-
130L
-
Motor Power:
-
5.5Kw
-
Heater Power:
-
3.6Kw
-
Certification:
-
CE
Product Description

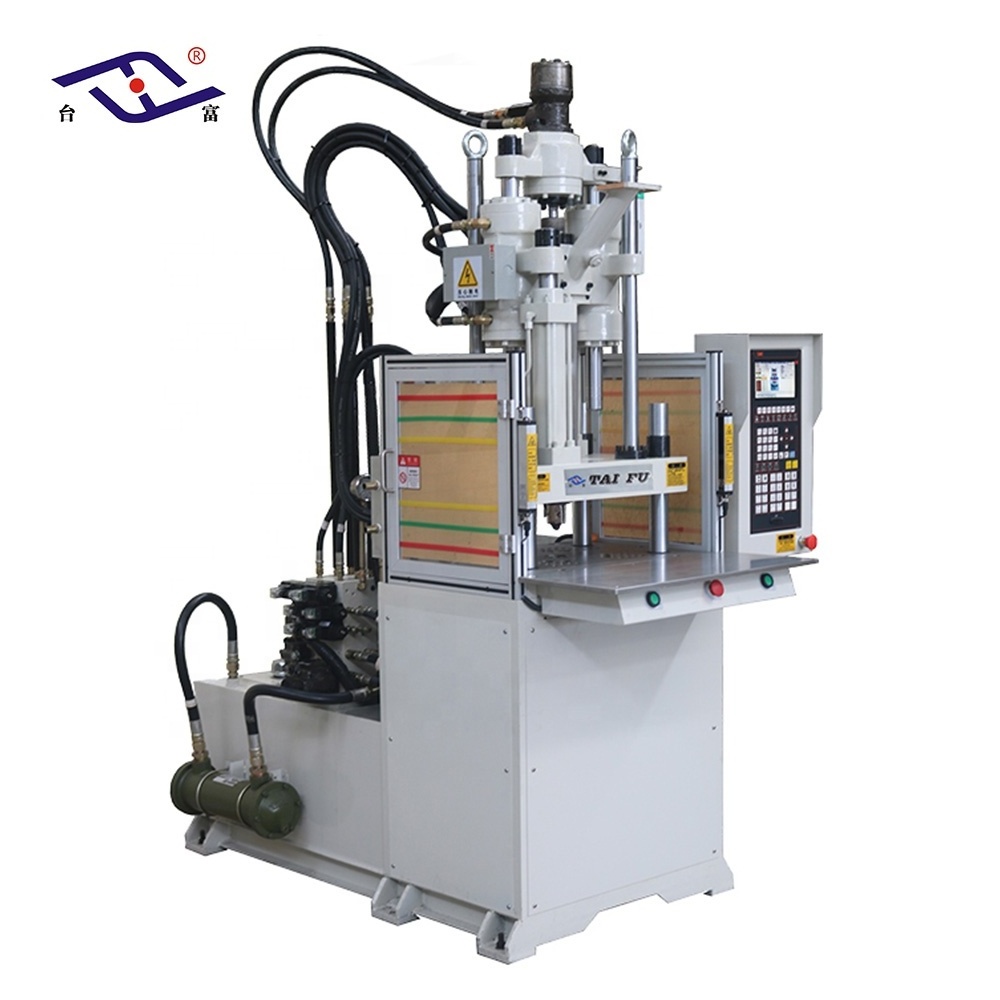

Vertical Injection Molding Machine-V Standard Series
Taifu vertical injection molding machine is known for the
quality, reliability and proven performance,
allowing for safe and easy handling and extremely high operating safety
.
Our machines are widely applied in the field of
injection overmolding
,
multi-colors injection molding
,
multi-components injection molding
,
high-precision injection molding
,
thermosetting injection molding
and
liquid silicone injection molding
.
There are various machine models we have V-35/55/85/120/160/200/250/300
It is available to customize machines to meet your needs.
Contact us
to get more information.
Recommend Products
Applications
Tell us your products, we are ready to provide custom solution.
Contact Us Now!
Certifications
Photo Gallery
DELIVE RY
We products and delivers more than 2,000 sets of vertical injection molding machines
annually
. All the machines will be
packed well before shipment.
OUR WORKSHOP
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
CUSTOMER SITES
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
