Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DLX
-
Voltage:
-
380V/50Hz Three-phase electricity
-
Dimension(L*W*H):
-
3200*3200*100
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Stone Cutting Machine
-
Maximum processing size(L*W*H):
-
3200*3200*100mm
-
Saw blade diameter:
-
400-700mm
-
Working desk size:
-
3200*2000mm
-
Workbench vertical flip angle:
-
0/85
-
Workbench rotation angle:
-
90°/360°
-
Main motor power:
-
15kW
-
Water Consumption:
-
4m3/h
-
Overall dimensions (length*width*height):
-
6000*4500*2800mm
-
Key word:
-
Stone Cutting Machine
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
15 KW
-
Cutting thickness (max):
-
120mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DLX
-
Voltage:
-
380V/50Hz Three-phase electricity
-
Dimension(L*W*H):
-
3200*3200*100
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Stone Cutting Machine
-
Maximum processing size(L*W*H):
-
3200*3200*100mm
-
Saw blade diameter:
-
400-700mm
-
Working desk size:
-
3200*2000mm
-
Workbench vertical flip angle:
-
0/85
-
Workbench rotation angle:
-
90°/360°
-
Main motor power:
-
15kW
-
Water Consumption:
-
4m3/h
-
Overall dimensions (length*width*height):
-
6000*4500*2800mm
-
Key word:
-
Stone Cutting Machine

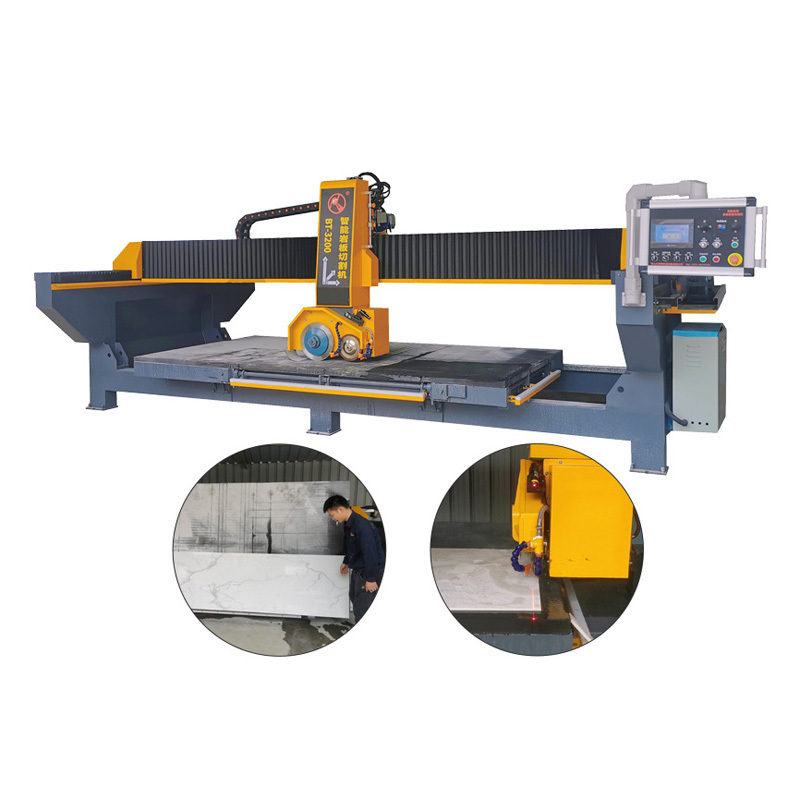

Factory Supplier Granite Stone Cutting Machine CNC Laser Tile Cutting Machine Bridge Saw 5 Axis Stone CNC Bridge Cutting Machine
| Model | DLXSQ-500 | DLXSQ-600 | DLXSQ-700 |
| Maximum processing size | 3200*3200*100mm | 3200*3200*150mm | 3200*3200*220mm |
| Saw blade diameter | Φ400-Φ500mm | Φ400-Φ600mm | Φ400-Φ700mm |
| working desk size | 3200*2000mm | ||
| Workbench vertical flip angle | 0/85 | ||
| Workbench rotation angle | 90/360 | ||
| main motor power | 15kW | 18.5kW | 22kW |
| Water Consumption | 4m³/h | ||
| Overall dimensions (length*width*height) | 6000*4500*2800mm | 6000*4500*3050mm | 6000*5000*2800mm |
| Total Weight | 5000kg | 5500kg | 6000kg |
Factory Supplier Granite Stone Cutting Machine CNC Laser Tile Cutting Machine Bridge Saw 5 Axis Stone CNC Bridge Cutting Machine
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
