Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEB
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
12000*2300*3200mm
-
Weight:
-
7000 kg
-
name:
-

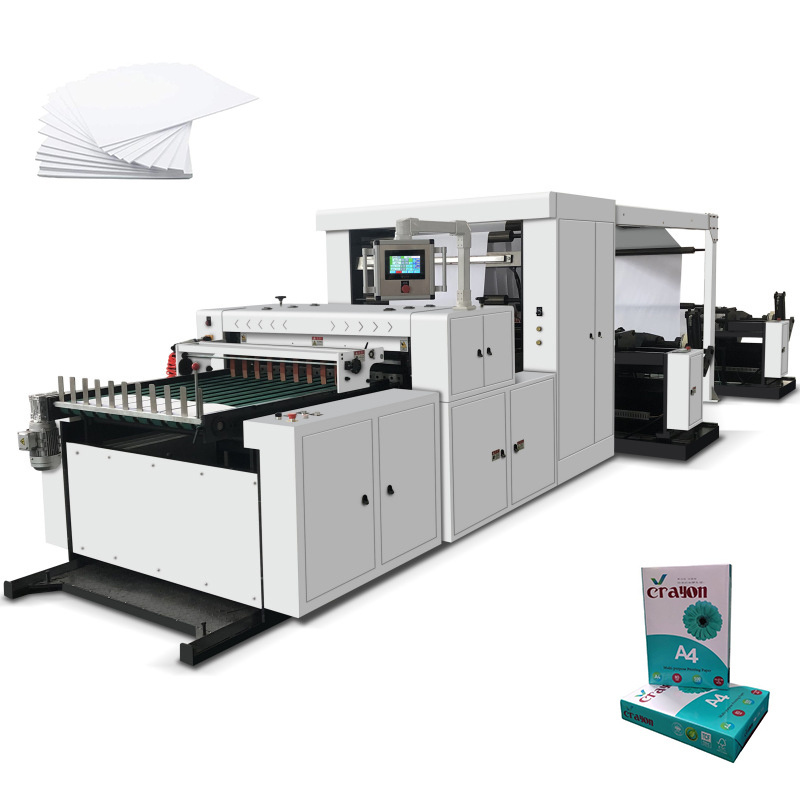

A4 Paper Cutting Machine
-
Function:
-
a4 paper cutting and packing machine
-
After-sales Service Provided:
-
Engineers
-
Application:
-
A4 Cutting Paper Machine
-
Speed:
-
30-200 Sheets/min
-
Finished Products:
-
A4 Paper /Office Paper/Notebook Paper
-
Color:
-
Cutomized
-
Raw material:
-
30-500g/㎡
-
power:
-
20kw
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
200 sheets/min
-
Max. workable width:
-
1600mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEB
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
12000*2300*3200mm
-
Weight:
-
7000 kg
-
name:
-
A4 Paper Cutting Machine
-
Function:
-
a4 paper cutting and packing machine
-
After-sales Service Provided:
-
Engineers
-
Application:
-
A4 Cutting Paper Machine
-
Speed:
-
30-200 Sheets/min
-
Finished Products:
-
A4 Paper /Office Paper/Notebook Paper
-
Color:
-
Cutomized
-
Raw material:
-
30-500g/㎡
-
power:
-
20kw
Product Description
Specification
|
Model
|
GEB-A4-1100
|
GEB-A4-1400
|
GEB-A4-1600
|
|
Max cutting width
|
1100mm
|
1400mm
|
1600mm
|
|
Max unwinder roll ID
|
φ1400mm
|
φ1400mm
|
φ1400mm
|
|
Cutting length
|
A4/A3
|
A4/A3
|
A4/A3
|
|
Cutting speed
|
30-200 cuts/min
|
30-200 cuts/min
|
30-200 cuts/min
|
|
Precision
|
±0.2mm
|
±0.2mm
|
±0.2mm
|
|
Cutting thickness
|
70-500g/m2
|
70-500g/m2
|
70-500g/m2
|
|
Stacking height
|
Max 500mm
|
Max 500mm
|
Max 500mm
|
|
Total power
|
16-20kw
|
16-20kw
|
16-20kw
|
|
Weight
|
6000-8000kgs
|
8000-10000kgs
|
10000-13000kgs
|
|
Dimension
|
cutting: 12000/17000*3200*2200
|
12000/17000*3500*2200
|
12000/17000*3700*2200
|
|
|
packing:3200*4000
|
3200*4000
|
3200*4000
|
Features
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
