Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1740mm*1150mm*1370mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15M3
-
Marketing Type:
-
New Product 2022
-
Name:
-
Mini skid steer loader
-
Speed:
-
6km/h
-
Full width:
-
1160mm
-
Rated lifting weight:
-
350kg
-
Attachments:
-
Optional
-
Hitch plate:
-
Quick attach
-
Flow range (L/min):
-
35
-
Number of Cylinder:
-
2
Quick Details
-
Engine Brand:
-
HONDA
-
Power:
-
17.2 kw
-
Brand Name:
-
MENG
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1740mm*1150mm*1370mm
-
Machine Weight:
-
900 kg
-
Bucket capacity:
-
0.15M3
-
Marketing Type:
-
New Product 2022
-
Name:
-
Mini skid steer loader
-
Speed:
-
6km/h
-
Full width:
-
1160mm
-
Rated lifting weight:
-
350kg
-
Attachments:
-
Optional
-
Hitch plate:
-
Quick attach
-
Flow range (L/min):
-
35
-
Number of Cylinder:
-
2
Customer Photos
Faverable Comment
Product Description
√ A
pplication: Construction ,Grounds Maintenance, Landscaping use mini skid steer loader:
√ B
riggs&stratton/HONDA/ RATO 23HP engine, optional. EPA certification available.
√ 4
PCS Danfoss hydraulic driving motors. 4WD
√ C
ompact size: only 45 inches/1150mm wide for wheeled, 33 inches/830mm wide for tracked.
√ B
igger size wheels improved it's stability. 20*10-10.
√ O
ptional counter weight increased it's loading power. 25kg/pc.
√ A
ccept customize hitch plate to fit your local attachments.
|
Meng mini skid steer loader specification
|
|
|
||
|
Mini skid steer driving Type
|
Wheeled skid steer TY-323S
|
Tracked skid steer TY-323T
|
||
|
Engine Model
|
Optional: Honda, Briggs&Stratton; Rato
|
|
||
|
Mini kid steer rated power
|
23hp/17kw
|
|
||
|
Rotating speed
|
3600rpm
|
|
||
|
Mini skid steer rated loading
|
280kgs/616lb
|
|
||
|
Skid steer Max. lift
|
350kgs/770lb
|
|
||
|
Bucket Capcity
|
0.15m³
|
|
||
|
Max. travel speed
|
6km/h; 3.7m/h
|
|
||
|
Skid steer operating weight
|
900kgs/1980lb
|
|
||
|
MINI SKID STEER WORKING SYSTEM
|
|
|
||
|
System pressure
|
17mpa
|
|
||
|
Skid steer arm lift time
|
4s
|
|
||
|
Skid steer tipping bucket time
|
1.2s
|
|
||
|
Landing time
|
3s
|
|
||
|
MINI SKID STEER LOADER ACCESSORIES
|
|
|
||
|
Mini skid steer tire/track model
|
20*10-10
|
200*72*32
|
||
|
Fuel tank capacity
|
25L
|
|
||
|
Engine displacement
|
625ml
|
|
||
|
MINI SKID STEER LOADER MAIN DIMENSION
|
|
|
||
|
The Max. working height
|
2452mm/97ins
|
2435mm/96ins
|
||
|
Max. hinge pin height
|
1914mm/75ins
|
1897mm/75ins
|
||
|
Biggest unloading height
|
1515mm/60ins
|
1498mm/59ins
|
||
|
Dumping reach
|
545mm/21ins
|
612mm/24ins
|
||
|
Rollback of bucket on the ground(°)
|
26
|
26
|
||
|
Rollback of bucket full height (°)
|
114
|
114
|
||
|
Angle of departure(°)
|
23
|
25
|
||
|
Dumping angle at Max. height(°)
|
33.7
|
33.7
|
||
|
Mini skid steer loader total height
|
1370mm/54ins
|
1355mm/53ins
|
||
|
Ground clearance
|
140mm/5.5ins
|
92mm/3.6ins
|
||
|
Wheel base
|
657mm/25.8ins
|
720mm/28.3ins
|
||
|
Overall length with bucket
|
2170mm/85.4ins
|
2170mm/85.4ins
|
||
|
Length without bucket
|
1740mm/68.5ins
|
1740mm/68.5ins
|
||
|
Mini skid steer total width
|
1150mm/45.2ins
|
830mm/32.6ins
|
||

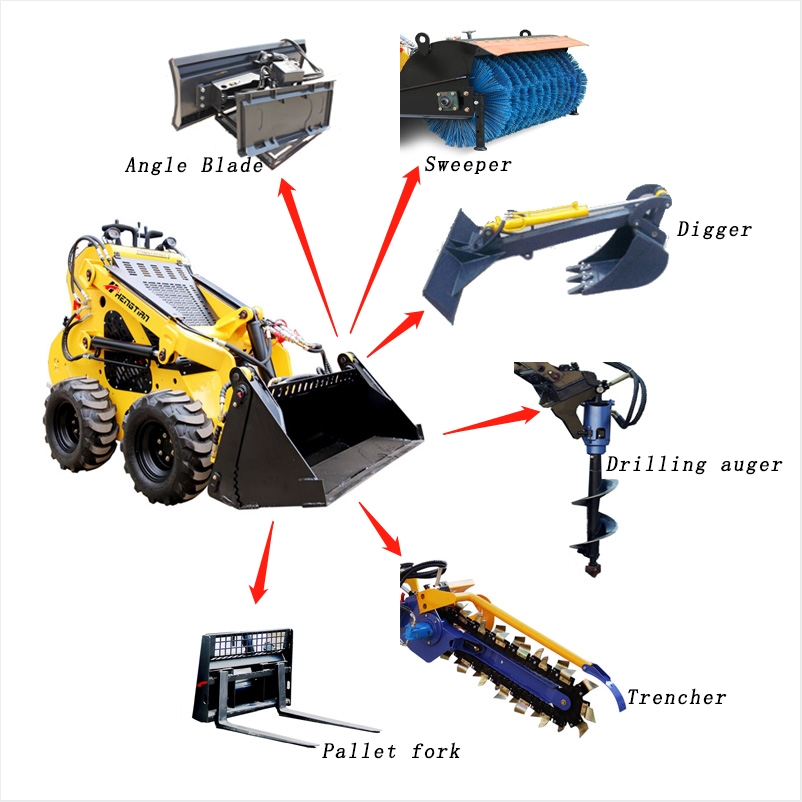

Optional attachments for
mini backhoe quick attach skid steer loader for building
as followings:
Detailed Images
All the spare parts for
mini backhoe quick attach skid steer loader for building
adopted reliable brand and long time cooperation supplier as well as our own workshop.
Packing&Shipping
Packing:
For order of 1-2 pcs, the mini track skid steer loader should be packed by steel frame and plywood box.
6 units in a 20ft' container.
12 units in a 40ft' container.
Shipping:
1: FOB-- We deliver to local port China, your agent collect there. 2: CIF-- We ship to your local port, you collect your self. 3: DDU--We ship to your home or appointed place.
What's skid steer loader?
Meng skid steer loader or skid steer is a small, rigid-frame, engine-powered machine with lift arms and multi-fit hitch plate to a wide variety of labor-saving attachments or tools.
Meng skid steer loaders are typically four wheeled or tracked vehicles with the wheels mechanically locked in synchronization on each side, and where the left-side drive wheels can be driven independently of the right-side drive wheels. The wheels typically have no separate steering mechanism and hold a fixed straight alignment on the body of the machine. Turning is accomplished by differential steering, in which the left and right wheel pairs are operated at different speeds, and the machine turns by skidding or dragging its fixed-orientation wheels across the ground. The extremely rigid frame and strong wheel bearings prevent the torsional forces caused by this dragging motion from damaging the machine. As with tracked vehicles, the high ground friction produced by skid steers can rip up soft or fragile road surfaces. They can be converted to low ground friction by using specially designed wheels such as the Mecanum wheel. Skid-steer loaders are capable of zero-radius, "pirouette" turning, which makes them extremely maneuverable and valuable for applications that require a compact, agile loader. Meng skid steer loaders are sometimes equipped with tracks instead of the wheels, and such a vehicle is known as a compact mini track loader,it has mechanical and hydraulic control style.
The Meng skid steer loaders lift arms on both sides of the machine. operator standing on or seating in to move booms and auxiliary for different working, previous style skid loaders were not as safe as conventional front loaders, particularly due to the lack of a ROPS. Some Meng skid loaders have cabins,A/C, open or fully enclosed and other features to protect the operator. Like other front loaders, they can push material from one location to another, carry material in the bucket, load material into a truck or trailer and perform a variety of digging,lifting cargo,trenching,drilling...
After Sales Service
1: One year warranty for engine.
2: Spare parts delivery for machine repairing.
3: Machine operation instruction by videos if requested.
4: Daily maintenance technical support.
5: Other technical issues support if needed.
Company Introduction
Hi-Tech Sunrise Machinery Co., Ltd , is a machinery manufacturer, professional skid steer loader and attachments maker( digger, bucket, trencher, excavator, sweeper...). Our factory located at a beautiful environmental place with convenient transportation leading to all the megacities, airports and and cargo port, very easy for skid steer loaders transportation as well as clients to visit our factory.
We have our own technicians to design, to produce loaders, and our own test base to ensure the quality of every single skid steer loader from our factory. We achieved countless good feedback, which are pushing us to produce better loaders. We are always try our best to provide reliable service and durable skid steer loaders.
For all the customers are welcomed to visit our skid steer loader factory leave us your valuable comments.
