Good biomass pellet machine For SZLH/MZLH/Buhler/CPM/Kahl pellet mill ring die

Good biomass pellet machine For SZLH/MZLH/Buhler/CPM/Kahl pellet mill ring die

FOB Reference Price: Get Latest Price

≥1 Sets

US $580

≥3 Sets

US $550

≥10 Sets

US $530

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 30 kg

Marketing Type:: New Product 2022

Quick Details

Max. Capacity:: 20 ton/h

Place of Origin:: Jiangsu, China

Brand Name:: YS

Weight:: 30 kg

Marketing Type:: New Product 2022

Ring die for animal feed pellet machine	Hole Diameter(mm)	Compression Ratio
Poultry&livestock feed	2.5 - 4	1:4-1:11
Fish feed	2.0 - 2.5	1:12-1:14
Shrimp feed	0.4 - 1.8	1:18-1:25
Ring die for biomass pellet machine	6.0 - 8.0	1:4.5-1:8

Range of ring die spare parts' Application

Applicable for Biomass pellet machine : wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk
pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.

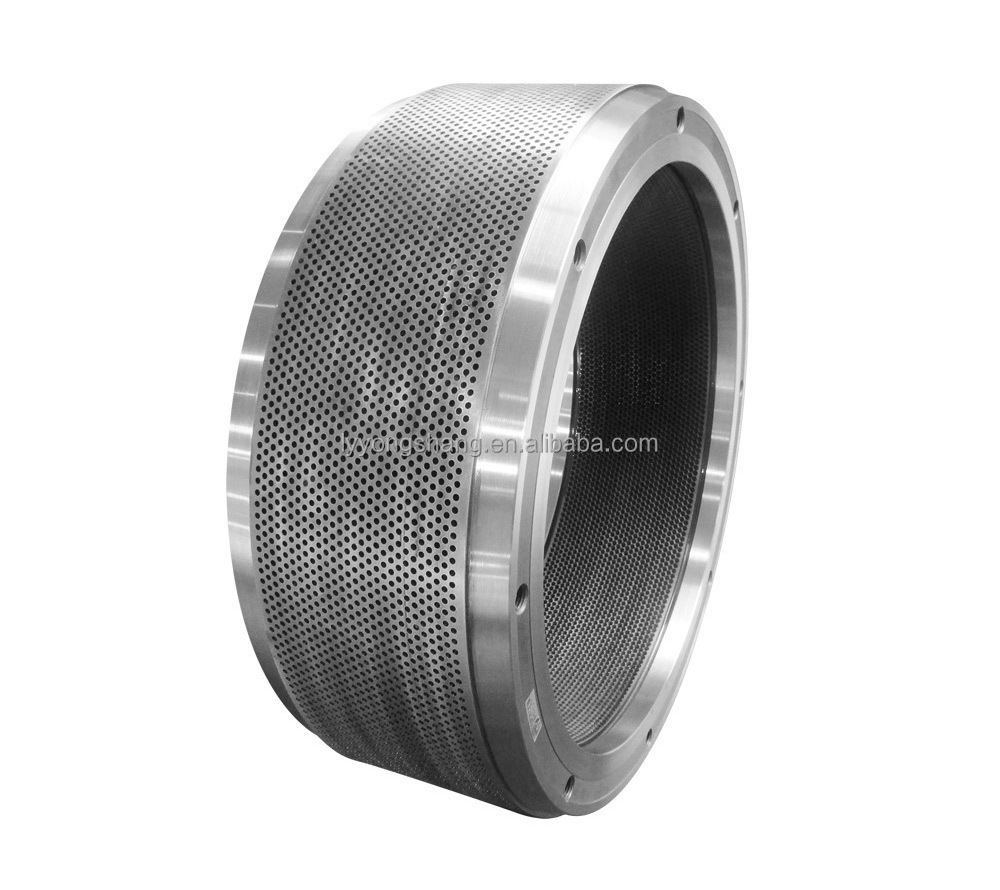

Introduction of pellet mill ring die, pellet die, feed die

1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized

2. Hardness of ring dies: HRC54-60.

3. Diameter of ring die can do: 1.0mm up to 28mm

4. Pellet die type can do: Ring Die or Flat Die

5. Outer diameter can do: Outer diameter up to 1800mm

6. Pellet Die model we can customize: CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador,Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.

Process for making pellet mill ring die, pellet die, feed die

Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole,etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.

Product model

Model Number
SZLH250	SZLH300	SZLH320	SZLH400	SZLH420
MUZL180	MUZL350	MUZL420	MUZL600	MUZL610
Buhler304	Buhler420	Buhler560	Buhler660	Buhler900
Awalia 420	Awalia 350	PM-42L	PM-51SA	PM-53SC
