Quick Details
-
Model Number:
-
ZGS11
-
Coil Number:
-
2
-
Use:
-
Power Distribution
-
Coil Structure:
-
TOROIDAL
-
Product name:
-
compact structure 13.8kv 25kva 45kva 50kva pad mounted transformer
-
Type:
-
Pad Mounted
-
Standard:
-
IEC60076
-
Frequency:
-
50/60 Hz
-
Winding Material:
-
Copper\Aluminum
-
Vector Group:
-
Dyn11 / Yyn0
-
Cooling Method:
-
ONAN ONAF
-
Feature:
-
Compact
-
Warranty:
-
2 Years
-
Delivery lead time:
-
15 days
-
Rated Primary Voltage:
-
13.8
-
Rated Secondary Voltage:
-
0.4
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Zene
-
Model Number:
-
ZGS11
-
Coil Number:
-
2
-
Use:
-
Power Distribution
-
Coil Structure:
-
TOROIDAL
-
Product name:
-
compact structure 13.8kv 25kva 45kva 50kva pad mounted transformer
-
Type:
-
Pad Mounted
-
Standard:
-
IEC60076
-
Frequency:
-
50/60 Hz
-
Winding Material:
-
Copper\Aluminum
-
Vector Group:
-
Dyn11 / Yyn0
-
Cooling Method:
-
ONAN ONAF
-
Feature:
-
Compact
-
Warranty:
-
2 Years
-
Delivery lead time:
-
15 days
-
Rated Primary Voltage:
-
13.8
-
Rated Secondary Voltage:
-
0.4
Products Description

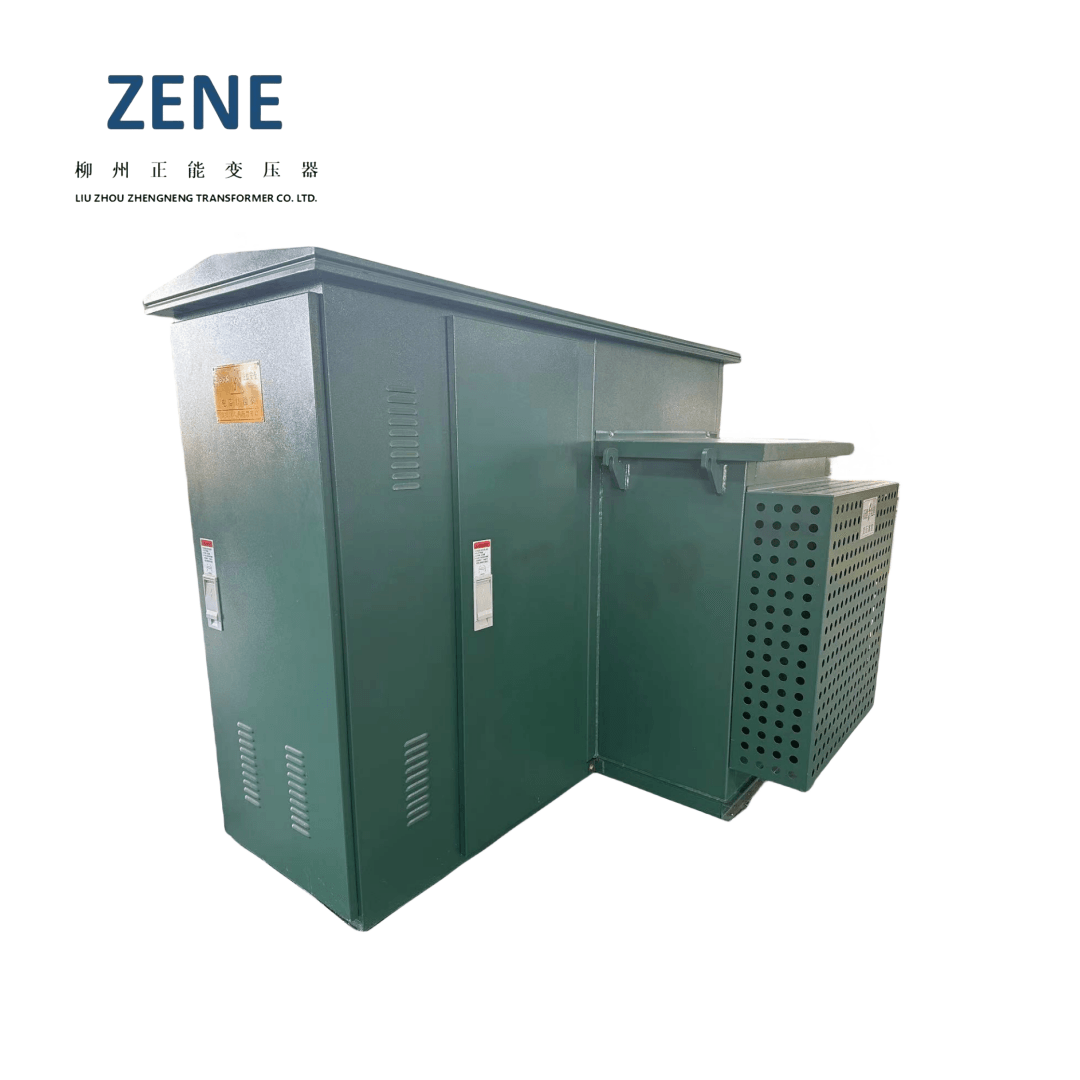

Product View
What is Transformer ?
A pad mount transformer is a ground-mounted utility distribution transformer, which usually is housed in a locked metal cabinet, situated on a small concrete pad. These distribution transformers are normally located in residential subdivisions. Since all of the live contact points are enclosed in a grounded metal box, this kind of transformer can be situated in residential locations and do not need to be fenced, like transformers in utility substations.Pad mounted transformers are connected to underground utility distribution lines at what is called a "service drop", in order to step down the primary voltage on the utility distribution line to the lower secondary voltage which is then supplied to a utility customer. Many pad mounted transformers may serve a single large building, or it may serve many residences.
Product Specification
|
Item
|
Value
|
|
|
|
|||
|
Place of Origin
|
Liuzhou, Guangxi Autonomous Region, China
|
|
|
|
|||
|
Name of Brand
|
Zhengneng (Zene)
|
|
|
|
|||
|
Name of Product
|
Pad Mounted Transformer
|
|
|
|
|||
|
Model of Product
|
ZGS
|
|
|
|
|||
|
Number of Phase
|
Three
|
|
|
|
|||
|
Rated Primary Voltage
|
10.5kV, 11kV, 13.8kV, 15kV, 20kV
|
|
|
|
|||
|
Rated Secondary Voltage
|
0.2kV, 0.4kV
|
|
|
|
|||
|
Power
|
30-3150kVA
|
|
|
|
|||
|
Rated Capacity
|
30-3150kVA
|
|
|
|
|||
|
Application
|
Power Distribution
|
|
|
|
|||
|
PCertification
|
ISO
|
|
|
|
|||
|
Frequency
|
50/60Hz
|
|
|
|
|||
|
Cooling Class
|
ONAN
|
|
|
|
|||
|
Vector Group
|
Dyn11/Yyn11
|
|
|
|
|||
|
Winding Material
|
100% Copper/100% Aluminum
|
|
|
|
|||
|
Brand of Components and Parts
|
China Brand or Customer Specified
|
|
|
|
|||
|
Core Material
|
Silicon Steel
|
|
|
|
|||
|
Warranty
|
Two Years
|
|
|
|
|||
|
|
|
|
|
|
|||
Highlight of Product Detail
|
Item
|
Name
|
|
1
|
Pressure Gauge
|
|
2
|
Pressure Relief Valve
|
|
3
|
Oil Injection Hole
|
|
4
|
Thermometer
|
|
5
|
Oil Level Indicator
|
|
6
|
Short-Circuit Fuse
|
|
7
|
Load Switch
|
|
8
|
Tap Changer
|
|
9
|
HV Bushings
|
S11 Series of Product Specification in General
|
Primary Side Voltage : 10kV; Secondary Side Voltage: 0.4kV; Taping Range: ±2*2.5%
|
|
|
|
|
|
|
|
|
|
|||||||
|
Product Model
|
Rated Capacity (kVA)
|
Loss (W)
|
|
Off-load Current
%
|
Circuit Impendence
%
|
Weight (kg)
With Copper Coil
|
Weight (kg) With Aluminum Coil
|
|
|
|||||||
|
|
|
No load
|
On load
|
|
|
|
|
|
|
|||||||
|
S11-30/10-0.4
|
30
|
90
|
600
|
1.4
|
4
|
294
|
242
|
|
|
|||||||
|
S11-50/10-0.4
|
50
|
130
|
870
|
1.2
|
|
340
|
311
|
|
|
|||||||
|
S11-80/10-0.4
|
80
|
175
|
1250
|
1.1
|
|
422
|
462
|
|
|
|||||||
|
S11-100/10-0.4
|
100
|
200
|
1500
|
1.0
|
|
488
|
499
|
|
|
|||||||
|
S11-125/10-0.4
|
125
|
235
|
1800
|
1.0
|
|
539
|
569
|
|
|
|||||||
|
S11-160/10-0.4
|
160
|
270
|
2200
|
0.9
|
|
625
|
683
|
|
|
|||||||
|
S11-200/10-0.4
|
200
|
325
|
2600
|
0.9
|
|
749
|
763
|
|
|
|||||||
|
S11-250/10-0.4
|
250
|
395
|
3050
|
0.8
|
|
865
|
881
|
|
|
|||||||
|
S11-315/10-0.4
|
315
|
475
|
3650
|
0.8
|
|
1000
|
1036
|
|
|
|||||||
|
S11-400/10-0.4
|
400
|
565
|
4300
|
0.7
|
|
1175
|
1245
|
|
|
|||||||
|
S11-500/10-0.4
|
500
|
675
|
5100
|
0.7
|
|
1300
|
1475
|
|
|
|||||||
|
S11-630/10-0.4
|
630
|
805
|
6200
|
0.6
|
4.5
|
1555
|
1750
|
|
|
|||||||
|
S11-800/10-0.4
|
800
|
780
|
7500
|
0.6
|
|
1815
|
2040
|
|
|
|||||||
|
S11-1000/10-0.4
|
1000
|
1155
|
10300
|
0.4
|
5
|
2040
|
2210
|
|
|
|||||||
|
S11-1250/10-0.4
|
1250
|
1365
|
12000
|
0.5
|
|
2375
|
2709
|
|
|
|||||||
|
S11-1600/10-0.4
|
1600
|
1650
|
14500
|
0.4
|
|
2915
|
3151
|
|
|
|||||||
|
S11-2000/10-0.4
|
2000
|
1950
|
17150
|
0.5
|
|
3429
|
3688
|
|
|
|||||||
|
S11-2500/10-0.4
|
2500
|
2280
|
20300
|
0.5
|
|
4070
|
4196
|
|
|
|||||||
|
S11-3150/10-0.4
|
3150
|
3510
|
23800
|
0.4
|
|
4700
|
5044
|
|
|
|||||||
Product Features
|
1.
|
Compact Structure
|
|
|
|
|||
|
2.
|
Cover small Floor Space
|
|
|
|
|||
|
3.
|
Low noise
|
|
|
|
|||
|
4.
|
Fully sealed and insulated structure
|
|
|
|
|||
