Quick Details
-
WIFI:
-
NO
-
Network:
-
Normal
-
Customized support:
-
oem, odm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHINELITE
-
Model Number:
-
L301
-
Product name:
-
UK Wall Switch Socket
-
Keyword:
-
Switch and Socket
-
Material:
-
Plastic Acrytic
-
Color:
-
White/Gold/Silver/ODM
-
Certificate:
-
CE CB RoHS
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Sample:
-
Free samples
-
Function:
-
Electrical Outlet Connection
Quick Details
-
Rated Voltage:
-
220V-250V
-
Rated Current:
-
10A, 20A, 13A
-
Application:
-
Commercial
-
WIFI:
-
NO
-
Network:
-
Normal
-
Customized support:
-
oem, odm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHINELITE
-
Model Number:
-
L301
-
Product name:
-
UK Wall Switch Socket
-
Keyword:
-
Switch and Socket
-
Material:
-
Plastic Acrytic
-
Color:
-
White/Gold/Silver/ODM
-
Certificate:
-
CE CB RoHS
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Sample:
-
Free samples
-
Function:
-
Electrical Outlet Connection

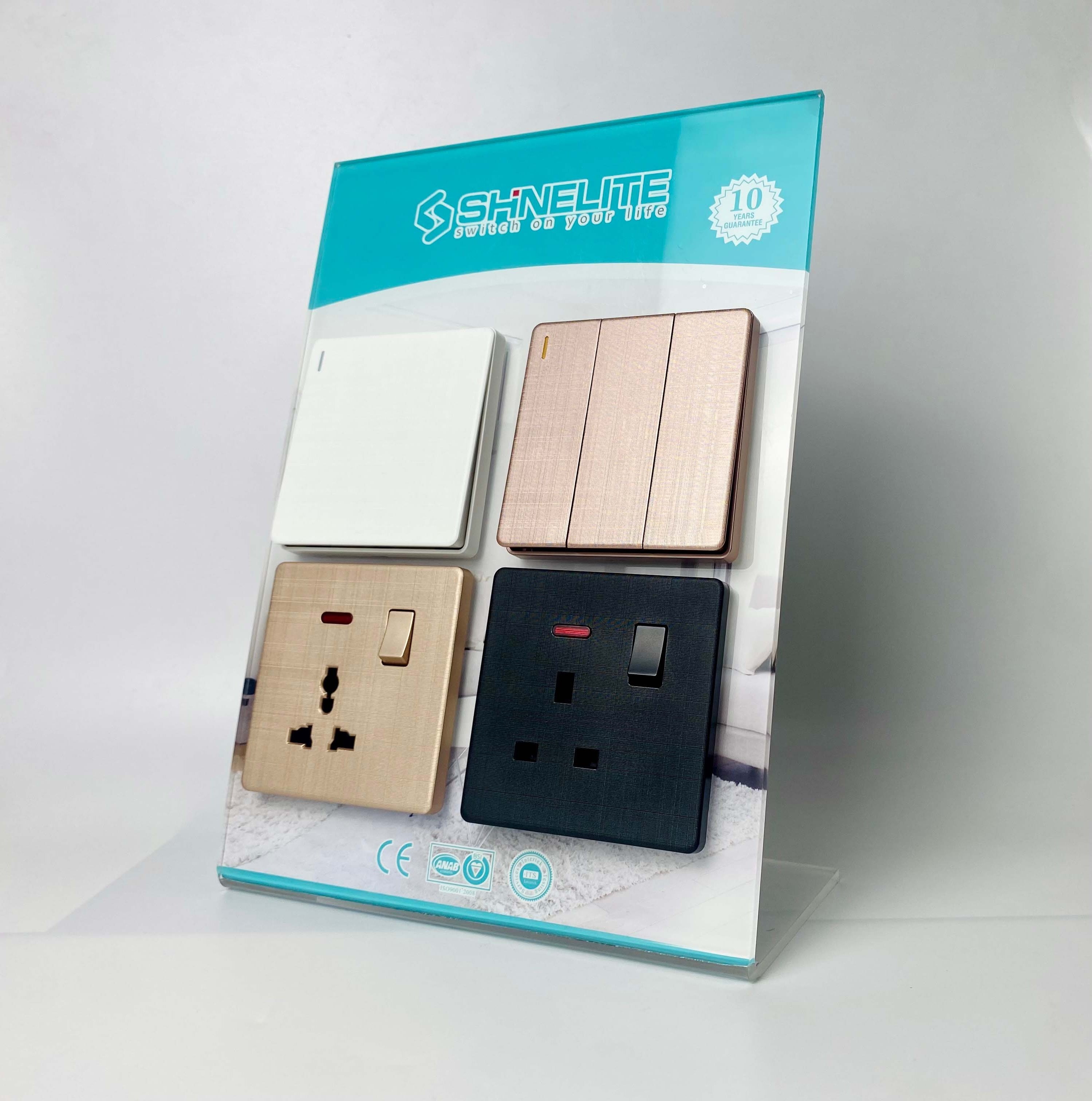

2024 GCC CE UKCA SQM BS UK Wall Switch And Socket New Mesh Panel Hot Sales Push Button Switch Socket
The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
|
Outline size: |
86x86mm |
|
Installation size: |
60 |
|
Material: |
Plastic |
|
Copper: |
QSn5.6-0.1 H62 Hpb59 |
Switch Specification
|
Lifetime |
≥40000 |
|
Heat-resistant |
100 • C / 1h |
|
Insulation Resistance |
≥5M Ω |
|
Damp Resistance |
48h > 5M Ω |
|
Temperature Raise |
≤ 45K |
|
Earthing Provision |
≤0.05M Ω |
Socket Specification
|
Lifetime |
≥5000 |
|
Heat-resistant |
100 • C / 1h |
|
Insulation Resistance |
≥5M Ω |
|
Damp Resistance |
48h > 5M Ω |
|
Temperature Raise |
≤ 45K |
|
Earthing Provision |
≤0.05M Ω |
|
Electric Strength |
2000 V ~1 min |
