Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19F-AJS-11ZE/2X/12v/blue
-
Product name:
-
auto push button switch
-
LED color:
-
blue red green
-
LED Voltage:
-
12V DC
-
Emitting Type:
-
Illuimnated LED
-
Mounting hole:
-
19mm
-
Contact configuration:
-
1NO
-
Enclosure Material:
-
316L Stainless steel
-
Protection class:
-
IP67
-
Operation type:
-
Push Spring Return
-
Certification:
-
ROHS CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
20A
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA19F-AJS-11ZE/2X/12v/blue
-
Product name:
-
auto push button switch
-
LED color:
-
blue red green
-
LED Voltage:
-
12V DC
-
Emitting Type:
-
Illuimnated LED
-
Mounting hole:
-
19mm
-
Contact configuration:
-
1NO
-
Enclosure Material:
-
316L Stainless steel
-
Protection class:
-
IP67
-
Operation type:
-
Push Spring Return
-
Certification:
-
ROHS CE
Quick Description

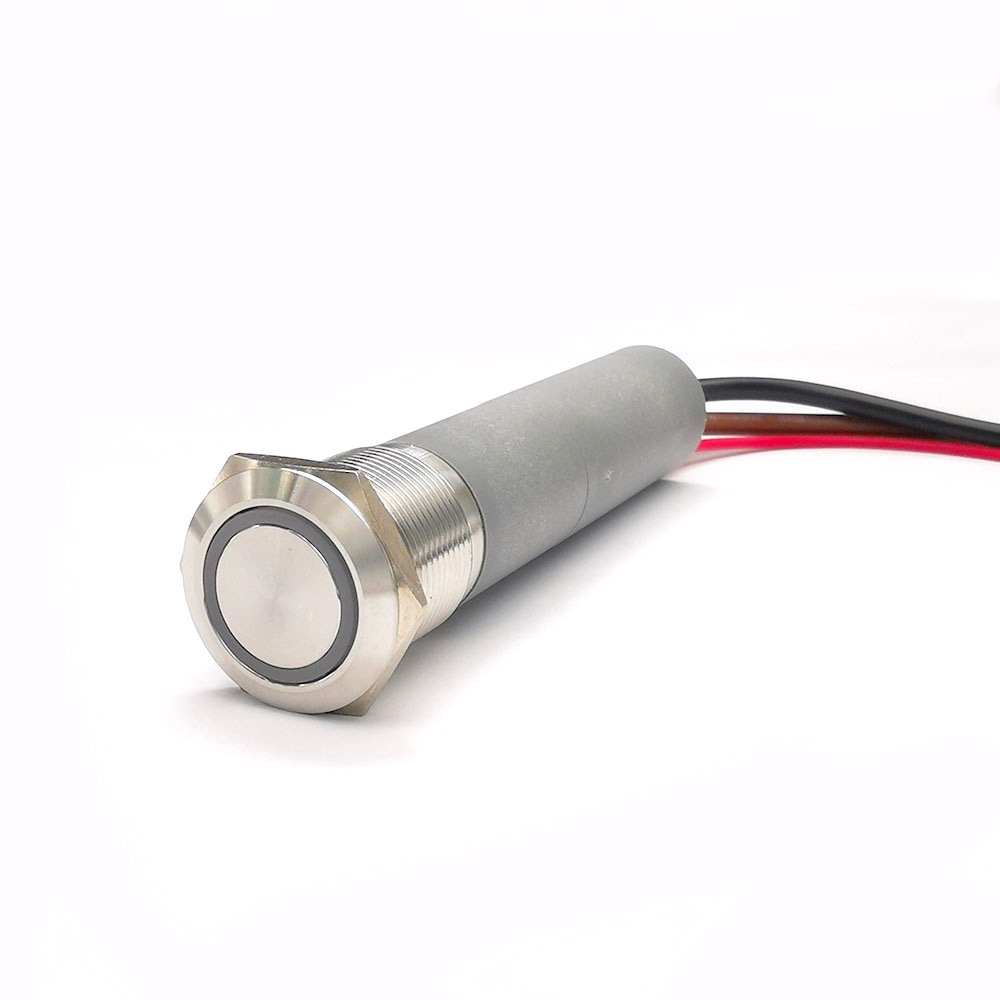

20A High Current Metal Push Button Switch
Mounting Size : 19mm;
Switch Rating : 20A , 12 V DC
IP Class : IP67
Function : Normal Open
Material ：Stainless Steel / A
luminium oxide
Operating Type : Latching(Push spring return)
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
19mm
|
|
|
Operation Type
|
Latching (push spring return)
|
|
|
Switch Combination
|
1NO
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
3 wire
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Operating Distance
|
About 2.5mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Button Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Base Material
|
PBT
|
|
|
Contact Material
|
Silver Alloy
|
|
|
LED SPECIFICATIONS
|
|
|
|
LED Type
|
Annular LED
|
|
|
LED Color
|
Blue red green
|
|
|
LED Voltage
|
12-24v
|
|
|
LED Life
|
More Than 40,000 hours
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
20A / 250V AC/ DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Mechanical Life
|
More than 1000,000 cycles
|
|
|
Electrical Life
|
More than 100,000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP 67
|
|
|
Operation Temperature
|
20℃～+55℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Torque
|
5-14Nm
|
|
Wire Connection Reference
Why Choose Us
Waterproof ,D
ustproof ,V
andal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push
buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance,
not easy to fade, excellent performance, IP67 protection level
are great for all kinds of first level equipments.
Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use
ILLUNINATED
High bright solid color LED light, beautiful not dazzling.
Built-in buck resistor. Customized LED light sign.
7 colors optional, can be customized Bi-colors, Tri-colors.
