Quick Details
-
Production Capacity:
-
10
-
Power:
-
7
-
Dimension(L*W*H):
-
5000mmx2000mmx2720mm
-
Air Pressure::
-
0.5MPa~0.8MPa
-
Air Consumption::
-
80L/min
-
Input Voltage::
-
380V/220V 50Hz
-
Input Power::
-
7KW
-
Welding Height::
-
25mm~160mm
-
Max. Welding Width::
-
120mm
-
Welding Range::
-
350mmx350mm~1800mmx3000mm
-
Overall Dimension::
-
5000mmx2000mmx2720mm
-
Weight::
-
2650kg
-
Product name:
-
upvc Window Four Corner Head Welding Machine CNC
-
Certification:
-
CE
Quick Details
-
Brand Name:
-
WINDOTEK
-
Voltage:
-
380
-
Weight:
-
2650
-
Production Capacity:
-
10
-
Power:
-
7
-
Dimension(L*W*H):
-
5000mmx2000mmx2720mm
-
Air Pressure::
-
0.5MPa~0.8MPa
-
Air Consumption::
-
80L/min
-
Input Voltage::
-
380V/220V 50Hz
-
Input Power::
-
7KW
-
Welding Height::
-
25mm~160mm
-
Max. Welding Width::
-
120mm
-
Welding Range::
-
350mmx350mm~1800mmx3000mm
-
Overall Dimension::
-
5000mmx2000mmx2720mm
-
Weight::
-
2650kg
-
Product name:
-
upvc Window Four Corner Head Welding Machine CNC
-
Certification:
-
CE

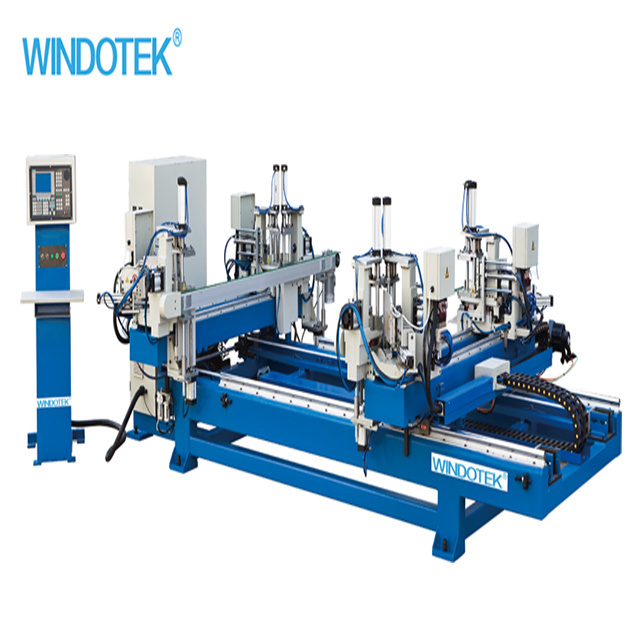

upvc Window Four Corner Head Welding Machine CNC
Function:
UPVC Window Fabricating Machine, Used for plastic profile CNC welding. One frame can be finished by one working cycle. pvc window making machine.
Features:
The common profile fi x ture with the machine can meet the processing requirements of different height profiles.
Special profile fi x ture is easy to be changed, which can ensure the high corner strength and later good cleaning effect.
Imported whole set linear bearing system can keep the stable running and good craftsmanship.
Special Know-How technique ensures stable welding size and increasing corner strength.
Parameter:
|
Air Pressure: |
0.5MPa~0.8MPa |
|
Air Consumption: |
80L /min |
|
Input Voltage: |
380V/220V 50Hz |
|
Input Power: |
7KW |
|
Welding Height: |
25mm ~160mm |
|
Ma x . Welding Width: |
120mm |
|
Welding Range: |
350mm x 350mm ~1800mm x 3000mm |
|
Overall Dimension: |
5000mm x 2000mm x 2720mm |
|
Weight: |
2650kg |
| Main Accessory | |
| Solenoid | SXPC |
| Temperature Controller | Omron |
| PLC | Omron, Misibisi |
| Cylinder | JPC (Festo China) |
| Motor | Anhui Sanyang/Zhenyang |
| Saw Blade | Uniken |
| Mechanical Parts | High Precision |
| Air Filter Device | STNC |
| Electrical Button and Switcher | Schneider |
| AC Contactor and Circuit Breaker | Schneider |
| Approach Switcher | Swiss CONTRINEX or Japan Omron |
