Product Description

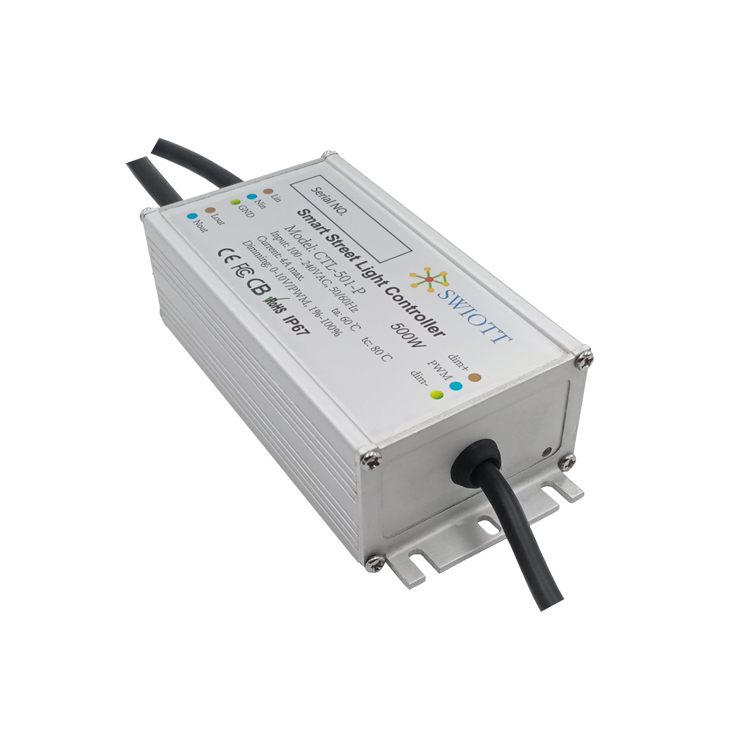

CTL-501-P
PLC Smart Street
Light Controller
Small size with rubber leads for easy deployment and construction
Built-in SON PLC communication module to achieve long-distance transmission, low-power operation, large-capacity networking, and high-reliability communication.
It can be connected to GTW-720 smart street light gateway, and also supports remote control of street light system, such as on/off, dimming, reading street light status, etc.
Built-in power acquisition chip, measurement accuracy of 2%. The acquisition range includes: voltage, power, current, energy consumption, power factor, temperature and frequency, etc.
With the radar vehicle sensor, the street light linkage control can be realized (optional).
Built-in motion sensing, easy for street lights to achieve adaptive lighting function (optional).
Built-in advanced data synchronization mechanism and communication mechanism
Support OTA firmware upgrade function.
Service life of more than 5 years.
Specification
Input voltage
|
100Vac~240Vac
|
Short circuit protection
|
No
|
Rated voltage
|
220Vac
|
Overheating protection
|
Yes
|
input frequency
|
47Hz to 63Hz
|
waterproof level
|
IP66
|
Max power
|
500W
|
MTBF
|
>200khours
|
Max current
|
4A
|
Operating temperature
|
-40℃ to +60℃
|
Standby power
|
<2W
|
Storage temperature
|
-40℃ to +85℃
|
PLC frequency
|
50kHz~500kHz
|
size packaging(L*W*H)
|
117mm*63mm*38mm
|
Dimming output
|
0V-10V @ 27mA(max)
|
Weight
|
0.5kg
|
Measurement accuracy
|
<2%
|
case max temperature
|
80℃
|
Harmonic content
|
<10%
|
Safety standards
|
CE、FCC、CB
|
Overload protection
|
Yes
|
EMC
|
EN55015、EN55022
|
Smart function
|
Function description
|
|
|
|
Dimming
|
Adjust the 0-10V voltage output and PWM duty cycle output of the controller through PLC communication, the dimming range is
0%~100%, and the stepless dimming. Adjustment accuracy <2%.
|
|
|
|
Energy metering
|
The built-in electric energy measurement function can report electric energy data to the concentrator through the PLC. The
measurable electric energy includes: input voltage, input current, power, power factor and temperature, and the measurement
accuracy can reach 1%.
|
|
|
|
fault report
|
Actively report the running status of the controller in real time through PLC, including: temperature, short circuit, open
circuit, overvoltage, undervoltage, normal, dimming, etc.
|
|
|
|
Fault type
|
fault condition
|
perform action
|
Remark
|
temperatur too high
|
>95℃±2℃
|
Report fault, shutdown, temperature <90℃±2℃ return to the state before shutdown
|
Inside temperature, not ambient temperature
|
temperature too low
|
<-25℃±2℃
|
Report a fault, do not shut down, the temperature is >-25℃±2℃ to remove the fault state
|
Inside temperature, not ambient temperature
|
output open
|
power<5W±1W
|
Report a fault, do not shut down, the power is less than 5W±1W in the power-on state, and the power is less than 5W±1W to remove
the fault state |
|
Power too high
|
>520W±5W or >4.2A±200mA
|
Report a fault, shut down, restart after recovery
|
|
Voltage too high
|
>285V±3V
|
Report failure, shutdown, <280V±3V return to the state
|
|
Voltage too low
|
<95V±3V
|
Report failure, shutdown, <100V±3V return to the state
|
|
