Quick Details
-
Production Capacity:
-
1000 m2
-
Place of Origin:
-
China
-
Brand Name:
-
STONEPLUS
-
Voltage:
-
3Phase 380V 50HZ
-
Dimension(L*W*H):
-
2000*1000*2000mm
-
Weight:
-
1500 kg
-
Model:
-
Stoneplus Granite and marble Cutting Machine
-
Polish convexes pieces-high:
-
200mm
-
Max deep of drilling:
-
300mm
-
Polishing & drilling at 45°:
-
200mm
-
vertical drill & polishing:
-
900mm
-
Table size:
-
2800*1200mm
-
Arm lifting stroke:
-
470mm
-
Rpm of spindle:
-
600-3200mm
-
Spindle lifting stroke:
-
150mm
-
Main motor power:
-
5.5kw
Quick Details
-
Type:
-
Stone Polishing Machine
-
Power:
-
5.5kw
-
Cutting thickness (max):
-
50mm
-
Production Capacity:
-
1000 m2
-
Place of Origin:
-
China
-
Brand Name:
-
STONEPLUS
-
Voltage:
-
3Phase 380V 50HZ
-
Dimension(L*W*H):
-
2000*1000*2000mm
-
Weight:
-
1500 kg
-
Model:
-
Stoneplus Granite and marble Cutting Machine
-
Polish convexes pieces-high:
-
200mm
-
Max deep of drilling:
-
300mm
-
Polishing & drilling at 45°:
-
200mm
-
vertical drill & polishing:
-
900mm
-
Table size:
-
2800*1200mm
-
Arm lifting stroke:
-
470mm
-
Rpm of spindle:
-
600-3200mm
-
Spindle lifting stroke:
-
150mm
-
Main motor power:
-
5.5kw
Machine information

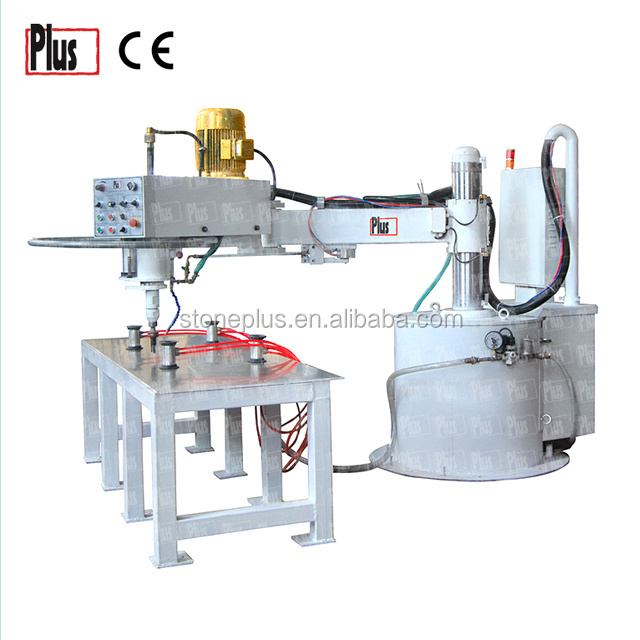

Stoneplus Co.
Product Description
|
Product Name:
|
|
|
Description:
|
It is a multitask machine that able to perform the polishing, drilling, milling & profiling without moving the material to
different locations. The spindle is controlled by inverter. This gives to the tools the optimal rpm for different diamond tools and materials. The stone machine is equipped with a pressure control system for rising & lowering of tools. It has a revolving column that combine with a radial arm of 2160 mm gives a working area of 7m2 in a 300° radius. |
|
Advantage:
|
The machine is a multifunction machine,specially for sink cutting.
|
Technical Parameter
|
Specification
|
|
|
|
Arm rotation degree
|
°
|
300
|
|
Arm lifting stroke
|
mm
|
470
|
|
Spindle lifting stroke
|
mm
|
150
|
|
Rpm of spindle
|
rpm
|
600-3200
|
|
Main motor power
|
kw
|
5.5
|
