Quick Details
-
Lock type:
-
Dead Latch Residential Mortise Lock
-
Material:
-
Steel
-
Usage:
-
aluminum stile swinging door
-
Standard Latch sized:
-
16mm width
-
Latch Feature:
-
Latch bolt can be reversed by Hand
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SECUTOR
-
Backset:
-
31/32", 1-1/8", 1-1/2"
-
Lock type:
-
Dead Latch Residential Mortise Lock
-
Material:
-
Steel
-
Usage:
-
aluminum stile swinging door
-
Standard Latch sized:
-
16mm width
-
Latch Feature:
-
Latch bolt can be reversed by Hand

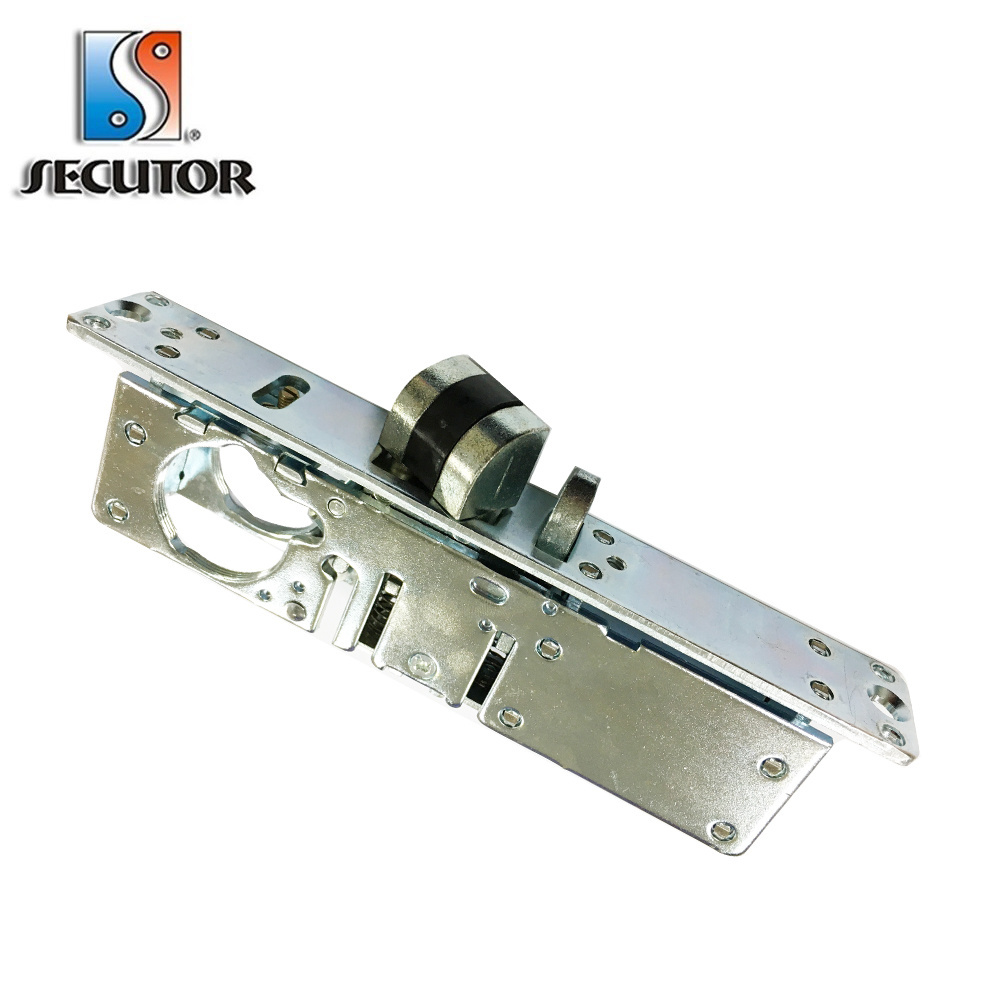

* American Type Latch Deadlatch Lock
* Swinging door hardware for aluminum stile doors
* Backset: 31/32", 1-1/8", 1-1/2"
* Standard latch (16mm width)
* The lock accepts any standard thread mortrise cylinder ( 1-5/32" ) from either or both sides
* Steel case with corrosion-resistant plating
* Case: 1" x 5-13/16" x depth (Depth varies by backset)
* Faceplate: flat, radius, radius with weatherstrip, right bevel or left bevel available
* The latch bolt is designed for use in commercial industrial, and institutional buildings
* L atch bolt, all matel with hardened steel internal pins
* Latch bolt can be reversed by Hand
* The latch bolt cannot be moved after the faceplate be installed onto the mortise lock.
* Latch bolt, 13mm chrome plated with delrin insert for smooth, quiet latching
* Auxiliary bolt, all metal
* For use with lever handles & paddles
* Faceplate and strike for optional
|
Item No. |
Feature |
Backset |
|
|
#002 |
Euro Profile Cylinder Version |
16mm Standard Latch can be reversed by Tool |
31/32", 1-1/8", 1-1/2" |
|
#002A |
16mm Standard Latch can be reversed by Hand |
||
|
#002B |
16mm Standard Latch can Easily be reversed by Tool |
||
|
#002BS |
12.7mm Slimmer Latch can Easily be reversed by Tool |
||
|
#005 |
Mortise Cylinder Version |
16mm Standard Latch can be reversed by Tool |
|
|
#005A |
16mm Standard Latch can be reversed by Hand |
||
|
#005B |
16mm Standard Latch can Easily be reversed by Tool |
||
|
#005BS |
12.7mm Slimmer Latch can Easily be reversed by Tool |
||
Drawing of
American Type Latch Deadlatch Lock
Faceplate and Strike Plate and Dust Box for
American Type Latch Deadlatch Lock
Mortise Cylinder and Latch handle for
American Type Latch Deadlatch Lock
MORTISE CYLINDER LATCH PADDLE HANDLE
Push Pull Paddle for
American Type Latch Deadlatch Lock
* Customer’s logo is available
* Quick response - We will reply your inquiry a.s.a.p.
* After-sales service - To make sure our customers are satisfied with their order
* Provide samples - Provide samples for reference
* Color box packed available
Packaging of
American Type Latch Deadlatch Lock
* 1pc/box, 25pcs/carton
Shipping of
American Type Latch Deadlatch Lock
* By sea / air / courier express. (FOB Taiwan)
* Courier express includes DHL, Fedex, TNT, UPS, EMS, SF, etc.
* Payment by T/T , L/C, Western Union, PayPal or Escrow
* We require 100% payment in advance before delivery
