---Installation
---Supply of spare parts
---24 HOURS hot line service
---Technical Training
---English Manual
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
wanjie
-
Dimensions(L*W*H):
-
7200*1400*1500
-
Weight:
-
2600 KG
-
Certification:
-
CE/ISO9001
-
Type:
-
Reel Type
-
Max Printing Area:
-
300*300mm
-
Screen frame area:
-
450*450mm
-
Max paper width:
-
350mm
-
Printing Speed:
-
4200times/hour
-
Power supply:
-
380 V -Three phase; 50 Hz
-
Product name:
-
silk screen printing machine
-
Color/station:
-
1Color/ 1 Station
-
Keywords:
-
Silk Printing Machine
-
Feature:
-
Simple Operation
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Two colors
-
Voltage:
-
380V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
wanjie
-
Dimensions(L*W*H):
-
7200*1400*1500
-
Weight:
-
2600 KG
-
Certification:
-
CE/ISO9001
-
Type:
-
Reel Type
-
Max Printing Area:
-
300*300mm
-
Screen frame area:
-
450*450mm
-
Max paper width:
-
350mm
-
Printing Speed:
-
4200times/hour
-
Power supply:
-
380 V -Three phase; 50 Hz
-
Product name:
-
silk screen printing machine
-
Color/station:
-
1Color/ 1 Station
-
Keywords:
-
Silk Printing Machine
-
Feature:
-
Simple Operation

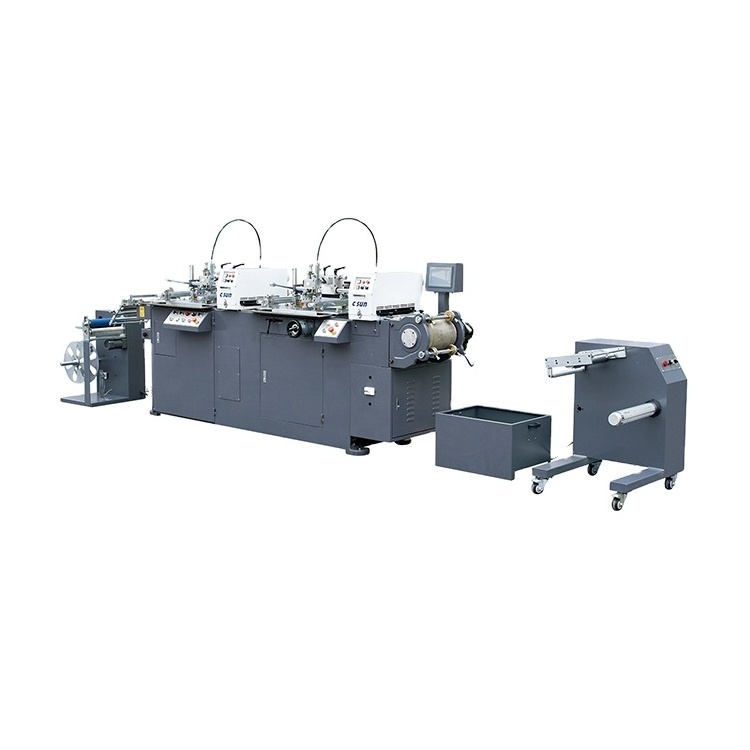

Reel Type Silk Screen Printing Machine
Features:
---Auto printing makr tracing system makes the machine can do multi overlaping.The machine is computer controlled, simple in operattion,precise in printing, so it's able to improve the printing quality
---Flexible setup of printing speed,counting printing number, and automatic shutdown as per set number.
Standard Functions:
---Automatic paper feeding,printing,CNC extension, drying and rewinding
Options:
1.UV drying system
2. Sheeter
3.Rewinder
Applicable materials :
Sticker paper, adhesive tapes, PVC,PET, ribbions, aluminum foils, soft sircuit boards, mobile telephone keypad, and other packaging materials.
Mechnical Parameters:
|
Items
|
Specifications
|
|
Paper Width
|
320mm
|
|
Screen Fame area
|
450*450mm
|
|
Max.Printing area
|
300*300mm
|
|
Max speed
|
4200 times/hour
|
|
Main Power
|
2.5 KW
|
|
Overall Diameter (L*W*H)
|
2600*950*1450mm
|
|
Weight
|
2200 KGS
|
Hebei Wanjie Machinery Technology Co.,Ltd funded in 1999, is located in northern China printing machinery production base-Yutian,Hebei.
We have 180 employees and 4000 square meters building area.
We have more than 20 years experiance on making label machinery.
Our CE standard products have offset, letterpress, flexo label printing machine as well as die cutting,slitting ,inspection, rewinding machines.
1.Q:How about the after service?
A: We have a strong team, special for after service, we can arrange engineers to do service for you
2.Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
- Q: Where is your factory located? How can I visit?
A: Our factry is located in Tangshan City, near to the Beijing airpot, you can fly to Beijing directly, we can arrange to pick you up.
- Q: How does your factory do the quality control?
A:Quality is prrority, we always attach gerat importance to quality controlling from the beginning
- Q:Why choose Wanjie Machinery?
A: We are one of leader in this filed in China. Our quality products and service have enabled use to expend our market from China to more than 30 countries.
