Can seal & cut the various fabrics including the non woven polyester, etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HONGJIN
-
Power:
-
1500-2500W
-
Overall Dimensions:
-
L1200*W600*H1200MM
-
Warranty of core components:
-
1 year
-
Product Name:
-
Ultrasonic Lace Making Machines
-
COLOUR:
-
White, blue or as your requirement
-
Weight:
-
65kg
-
Votage:
-
100-220V
-
ODM or OEM:
-
Accepted
-
Frequency:
-
20KHZ
-
Output:
-
2500W Max
-
Function:
-
Sealing, edge cutting, perforation, etc.
-
Certification:
-
CE
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
30mm
-
Feed Mechanism:
-
Manual
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HONGJIN
-
Power:
-
1500-2500W
-
Overall Dimensions:
-
L1200*W600*H1200MM
-
Warranty of core components:
-
1 year
-
Product Name:
-
Ultrasonic Lace Making Machines
-
COLOUR:
-
White, blue or as your requirement
-
Weight:
-
65kg
-
Votage:
-
100-220V
-
ODM or OEM:
-
Accepted
-
Frequency:
-
20KHZ
-
Output:
-
2500W Max
-
Function:
-
Sealing, edge cutting, perforation, etc.
-
Certification:
-
CE

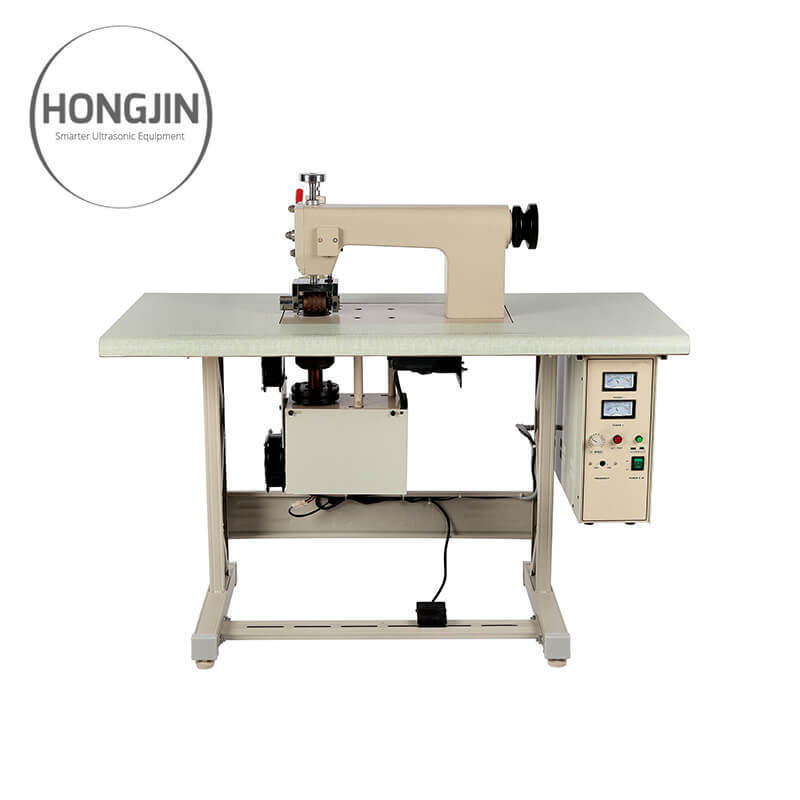

Ultrasonic Lace Making Machines
Warmly welcome to SHANGHAI HONGJIN ULTRASONIC ELECTRONIC EQUIPMENT FACTORY
Product Overview
Ultrasonic Lace Sewing Machine is an ultrasonic machine designed for sewing /sealing /cutting /pressing /embossing /forming various fabrics. It can also make holes, flowers or any shapes you need. It is widely used in various fabric products, including curtains, non woven bags, mattresses, mats, surgical clothing, face masks, hats, bed sheets, hotel disposable tablecloths, gift bags, boutique bags, shopping bags, advertising bags, etc.
Brief introduction
FEATURES AT A GLANCE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
PRODUCT SPECIFICATIONS
|
Model No
|
HJ-60G/P
|
HJ-100G/P
|
HJ-200G/P
|
HJ-300G/P
|
|
Frequency
|
20KHZ
|
18/20KHZ
|
18/20KHZ
|
18/20KHZ
|
|
Power
|
2500W
|
2500W
|
2500W
|
2500W
|
|
Speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|
Roller Width
|
0-60mm
|
0-100mm
|
0-200mm
|
0-300mm
|
|
Roller Diameter
|
Φ50-Φ60mm
|
Φ50-Φ60mm
|
Φ50-Φ80mm
|
Φ50-Φ80mm
|
|
Weight
|
75kg
|
105kg
|
120kg
|
120kg
|
|
Dimension
|
1200*600*1200mm
|
1200*600*1200mm
|
1260*600*1400mm
|
1260*600*1400mm
|
Products Description
MULTI-FUNCTIONS
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing & Welding: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Cutting & Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
WIDELY APPLICATIONS
Lace clothing, face masks, medical gowns, ribbon, trim, filter, lacing and quilting, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags, PVC products and so on.
UPDATING SERVICE
CHARACTERISTICS
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely.
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), which meets the welding requirements of different materials and thickness.
3. The performance of the machine can reach the international level with automatic frequency tracking system and ultrasonic soft-starting technology.
5. Four times faster than common sewing machines, minimal operator training required.
4. Various options for roller patterns; other roller designs also are available according to customer requirements.
Successful Project/Sample
SALES AND SERVICE NETWORK
FAQ
Q1：
Can your machine's voltage suitable in our country?
A1：
Absolutely no problem. We can make the Ultrasonic Lace Sewing Machine not only as 220V 50Hz single phase, but also 110V/120V single phase. The 380V 3 phases can be customized as well. So don't worry about it.
Q2：
How to ship the machines?
A2：
Multi choices. LCL and FCL by sea; By Express (DHL,TNT, UPS, Fedex etc); By air.
Q3: How long can I get the goods?
A3:
We usually delivery the goods in 7-15 working days.
Q4: What is the guarantee policy?
A4:
We usually promise guarantee as 1 year for non-human damage factor.
Q5:
What should do if I meet some troubles when using?
A5:
You can solve them by reading the English manual book we have supplied you. Of course, we can also make the video call or take an video of showing how to solve the problems. If necessary, we can dispatch our engineers to your company.
Q6:
How can I pay the money?
A6: Fastest way: Using your CREDIT CARD to pay via Alibaba Trade Assurance online order or via Paypal )
Normal way: T/T(Telegraphic Transfer ) 40% as prepayment, after confirming the machines before shipment, the balance of 60% should be effected . ( Western Union , L/C , Alipay, etc. )
Normal way: T/T(Telegraphic Transfer ) 40% as prepayment, after confirming the machines before shipment, the balance of 60% should be effected . ( Western Union , L/C , Alipay, etc. )
Q7:
What is your MOQ?
A7: MOQ: 1 set.
Q8: Any Protection?
A8: We use the plywood case to pack the ultrasonic machine so that it can be safely shipped. We hope you will receive a good machine after long shipping.
Q9: How can I contact to you?
A9:
You can send inquiry to me. Besides, you can also contact me via email, WhatsApp, Skype, Wechat, QQ and so on. My contact info has shown in the below of the company information.
