- Product Details
- {{item.text}}
Quick Details
-
Connection:
-
Plug In
-
Brand Name:
-
Japter
-
Model Number:
-
adapter-172
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
210g
-
Size:
-
108*45*30mm
-
External dimension:
-
5.5MM
-
Internal dimension:
-
2.5mm
-
AC specification:
-
Three plug 3PIN C6 2PIN C8
-
Efficiency:
-
89%min
-
Safety standards:
-
CE FCC ROSH IEC MSDS
-
Warranty:
-
1 year warranty
-
Power:
-
65w
-
Certification:
-
ce
Quick Details
-
Type:
-
Power Supply Adapter, laptop adapter
-
Usage:
-
LAPTOP
-
Output Type:
-
DC
-
Connection:
-
Plug In
-
Brand Name:
-
Japter
-
Model Number:
-
adapter-172
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
210g
-
Size:
-
108*45*30mm
-
External dimension:
-
5.5MM
-
Internal dimension:
-
2.5mm
-
AC specification:
-
Three plug 3PIN C6 2PIN C8
-
Efficiency:
-
89%min
-
Safety standards:
-
CE FCC ROSH IEC MSDS
-
Warranty:
-
1 year warranty
-
Power:
-
65w
-
Certification:
-
ce
Product Description
Product Description
Details Images
Details Images
|
Rang of application
|

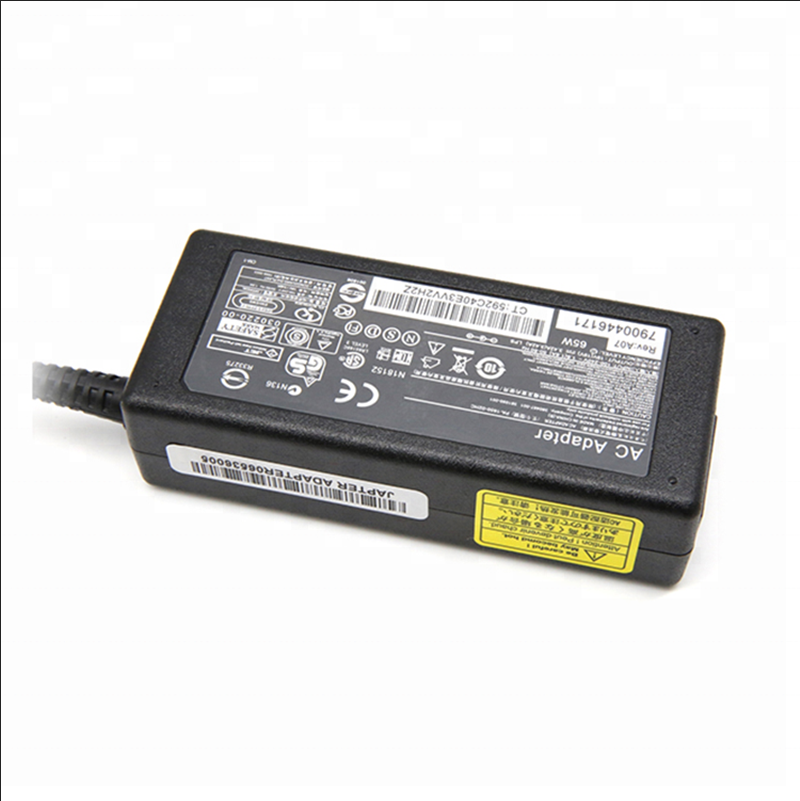

laptop ADAPTER
|
|||||||||||||||
|
Input specification
|
Input voltage
|
100-240V ( worldwide use)
|
||||||||||||||
|
Input frequency
|
50-60Hz
|
|||||||||||||||
|
Input surge
|
1.2-1.5A
|
|||||||||||||||
|
Output specification
|
Output voltage
|
19V
|
||||||||||||||
|
Output current
|
3.42A
|
|||||||||||||||
|
Output power
|
65W
|
|||||||||||||||
|
Protection function
|
Overload protection
|
Beyond the rated power10%-15%, automatic recovery
|
||||||||||||||
|
Over-voltage protection
|
10%-15%Out of rated voltage
|
|||||||||||||||
|
Short Circuit
|
No damage for short circuit,automatic recovery
|
|||||||||||||||
|
Environmental
|
Operating temperature
|
30°C-55°C
|
||||||||||||||
|
Storage temperature
|
(-20 °C-55°C)
|
|||||||||||||||
|
AC specification
|
Three plug 3PIN C6 2PIN C8
|
Device type
|
Desktop adapter
|
|||||||||||||
|
structure
|
weight
|
210g
|
Ripple
|
<=100MV
|
||||||||||||
|
color
|
black
|
Efficiency
|
89%
|
|||||||||||||
|
Size
|
108*45*30mm
|
Safety standards
|
CE FCC ROSH IEC MSDS
|
|||||||||||||
|
External dimension
|
5.5mm
|
Service
|
OEM ODM OBM
|
|||||||||||||
|
Internal dimension
|
2.5mm
|
Warranty
|
1 year warranty
|
|||||||||||||
