Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
jewelry polishing grinding machine
-
Keyword:
-
polishing machine
-
MOQ:
-
1set
-
Color:
-
Customer's Requirement
Quick Details
-
Voltage:
-
220V/50HZ
-
Rated Voltage:
-
220V
-
Rated Input Power:
-
2.2KW
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
jewelry polishing grinding machine
-
Keyword:
-
polishing machine
-
MOQ:
-
1set
-
Color:
-
Customer's Requirement
Welcome to our company website.
We are a manufacturer of high quality DISC polishing machine. The motor adopts Taiwan original motor , very small gap 0.035MM.Dry and wet .In the operation process ,the machine shows excellent quality at any time,No need to worry about the after-sale, and the price is Cost-effective. Welcome to inquiry.
|
Model
|
Volume(L)
|
Machine size(mm)
|
Power(kw)
|
Machine weight
|
Rotary speed
|
|
DY-W20L
|
20
|
720*800*1450
|
0.75
|
140
|
0-450
|
|
DY-W20L/2
|
20*2
|
1180*8001450
|
0.75*2
|
235
|
0-450
|
|
DY-W20L/3
|
20*3
|
1700*800*1450
|
0.75*3
|
330
|
0-450
|
|
DY-W38L
|
38
|
900*820*1450
|
2.2
|
220
|
0-400
|
|
DY-W38L/2
|
38*2
|
1500*820*1450
|
2.2*2
|
370
|
0-400
|
|
DY-W38L/3
|
38*3
|
2150*820*1450
|
2.2*3
|
530
|
0-400
|
|
DY-W50L
|
50
|
1450*2000*2350
|
2.2
|
650
|
0-380
|
Specifications:

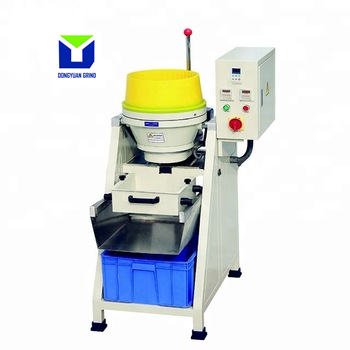

DY-W Disc finishing machine series :
Donyuan jewelry tools jewelry polishing grinding machine
jewelry polishing grinding machine,Centrifugal disk finishing machine,Gemstone Polishing Machine
The equipment is used for wet-grinding and dry- grinding, it includes grinding disc, rotating disc,abrasive-resistance ring, driving system and electric- control system. When the rotating disc rotates,the abrasive material and workpieces in the grinding disc will move upward along the barrel shell for the reason of centrifugal force action. Then fall back the center of the rotating disc from the high position by their weight of workpieces and abrasive material. Repeat the above movement to make the grinding media spiraling movement, and realize high efficiency grinding effect. It is suitable for workpiece surface processing of various gold and silver jewelry, electronic parts, clocks and watches,glasses parts etc.on deburring, chamfering, mirror -finish polishing, high gloss precious polishing.
Features
:
1.Unique compact gap adjustment structure design, suitable for wet grinding and dry grinding;
2.Using thick PU lining/wheel wear and long service life;
3.Using high wear -resistant ceramic/tungsten alloy/manganese steel washer structure,wear-resistant; .
4.Operating speed can be adjusted continuously, with regular work and reverse rotation;
5.Configure automatic circulating water system.
DongYuan Grinding Machinery Co., Ltd, located in Dongguan city of Guangdong province, is one professional manufacturer which specialized in developing and producing various grinding machines and grinding consumables. We have decades of experience in metal surface treatment technology, and maintain long-term good relations of cooperation with large well-known enterprises,of which our company has become one of the best suppliers.
We have unique technical development ability, and we keep developing and launching various high-performance grinding machines continuously. We mainly produce various 3D vibration grinding machines, high-speed grinding and polishing machines, high-speed dewatering dryers, hexagonal and octagonal drum grinders; magnetic production lines,magnetic grinding machines, magnetic sorting machines, plane grinding machines,3D scanning machines, drying lines etc; We develop and produce automatic vibration grinding machines and grinding lines, and develop and sell various abrasives and polishing agents.
Our sales network covers all over China, and Southeast Asia such as Thailand, India, Vietnam,Malaysia etc. Our products are widely used in Digital, mobile phone accessories, bicycles,Aliuminum die -castings, handtools, Zinc die-castings, furniture hardwares, apparel hardware accessories, case and package hardware fittings, electronic hardwares, various ornaments, jewelrys, powder metallurgy resins etc. Our products are also used for chamfering, deburring and polishing of stainless steel, iron, copper, zinc, aluminum, magnesium alloy material processed by pressing, casting and molding.
Q:Are you manufacturer?
A: Yes,we have our own factory,welcome to visit.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our machines are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
Q: How do your after-sale service work if the product got damaged?
A: Within warranty 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:What is your payment method?
A:50% Deposit, T/T or Alibaba trade assurance after order confirmed as deposit,the balance must be paid before delivery.
