Quick Details
-
Brand Name:
-
Kaiconn
-
Model Number:
-
CN45
-
Product Name:
-
Smart Cabinet Door Lock
-
Application:
-
communication equipment room cabinet
-
Material:
-
Zinc Alloy+PC
-
Size:
-
200*45*30mm
-
Weight:
-
1-1.2kg
-
Color:
-
Black
-
Power supply:
-
Passive NFC RF energy harvesting
-
communication method:
-
NFC for smart devices
-
APP:
-
IOS/Android
-
Warranty:
-
1 Year
Quick Details
-
Door Type:
-
Steel door, Aluminum door
-
Network:
-
wifi, bluetooth, SDK
-
Place of Origin:
-
China
-
Brand Name:
-
Kaiconn
-
Model Number:
-
CN45
-
Product Name:
-
Smart Cabinet Door Lock
-
Application:
-
communication equipment room cabinet
-
Material:
-
Zinc Alloy+PC
-
Size:
-
200*45*30mm
-
Weight:
-
1-1.2kg
-
Color:
-
Black
-
Power supply:
-
Passive NFC RF energy harvesting
-
communication method:
-
NFC for smart devices
-
APP:
-
IOS/Android
-
Warranty:
-
1 Year
Product Description
|

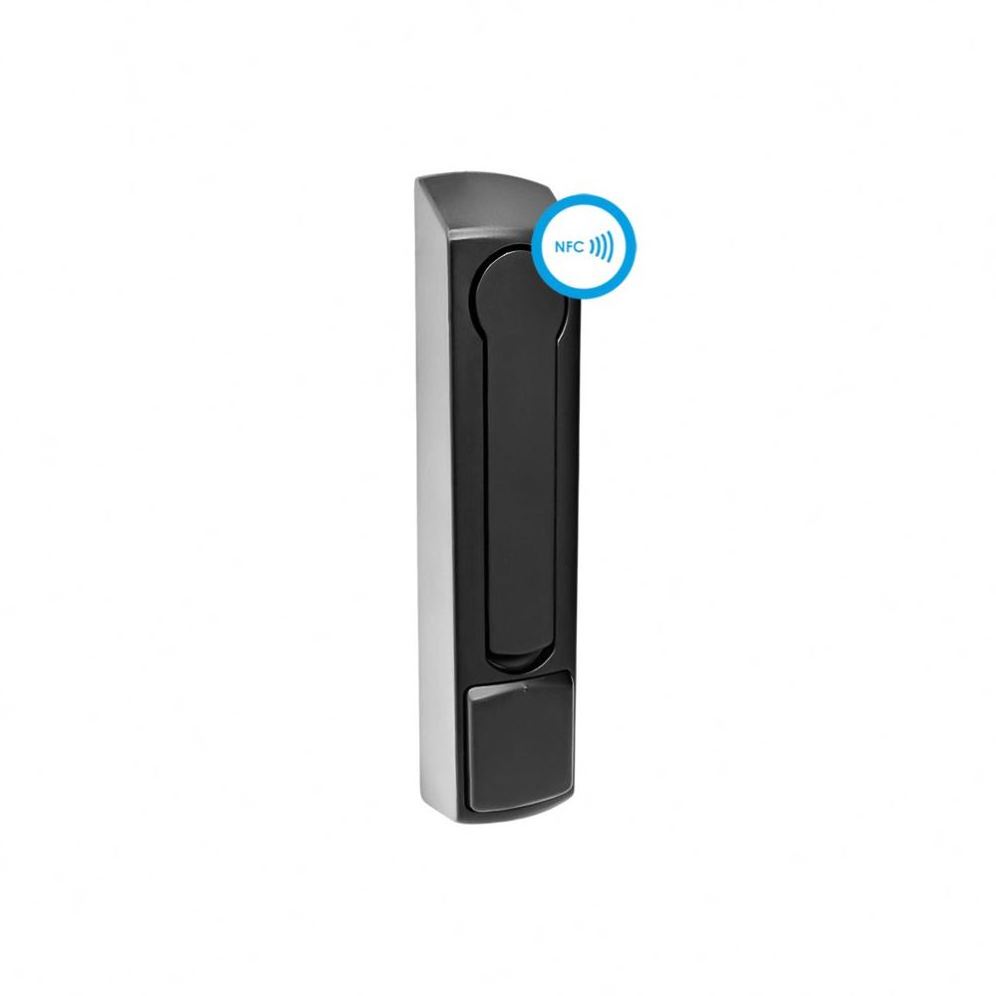

Passive NFC Smart Cabinet Lock
|
|
|
|
Appearance Dimensions:
Lock Body: 45*33.5*207mm |
Net Weight:
Approximately 450g |
|
|
Power Supply:
DC 12V
Mobile NFC Energy harvesting
|
Communication Method:
NFC RS485, DO Interface |
|
|
Operating Frequency:
13.56MHz
|
Data Encryption Method:
AES256/SM4 Encryption (Optional) |
|
|
Unlocking Method:
NFC (Android/iOS/Harmony) Mobile Environmental Monitoring System (485) Smart key |
Operating Distance:
Touch-to-Unlock
|
|
|
Working Mode:
Single Open, Single Close |
Typical Unlocking Time:
<=5 seconds (Passive) <=1 second (Active) |
|
|
Status Detection:
Lock Beam Opening and Closing Detection |
Tensile Strength:
1000N
|
|
|
Protection Level:
IP65 (Locked State)
|
Corrosion Resistance:
Neutral Salt Spray 48H
|
|
|
Impact Resistance Level:
1Kg 1.0m
|
Drop Protection Level:
1.5m
|
|
|
Vibration Protection Capability:
55Hz for 30
minutes |
Electromagnetic Compatibility:
Class B
|
|
|
S
tatic Protection Level:
8000V Contact
Discharge |
Anti-Strong Magnetic Field:
1T
|
|
|
Flame Retardant Level:
UL94 V-0
|
Operating Temperature and Humidity:
-30°C~60°C, 85%
|
|
|
Storage Temperature and Humidity:
-40°C~80°C, 80%
|
|
|
|
Additional Options
|
|
|
|
Reset Key:
Supports modifying the device authorization
|
Reset Device ID:
Supports modifying the device ID
|
|
|
Unlocking Logs:
Local storage of unlocking logs
|
|
|
