Quick Details
-
Application:
-
tunnel electric coal mucker
-
Load capacity:
-
60CBM/H
-
Bucket capacity:
-
0.3CBM
-
Motor power:
-
2*13kw
-
Certification:
-
CE ISO
-
Weight:
-
4300kg
-
spare parts:
-
support
-
sample order:
-
support
-
Factory visit:
-
support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal
-
Type:
-
Z-30
-
Application:
-
tunnel electric coal mucker
-
Load capacity:
-
60CBM/H
-
Bucket capacity:
-
0.3CBM
-
Motor power:
-
2*13kw
-
Certification:
-
CE ISO
-
Weight:
-
4300kg
-
spare parts:
-
support
-
sample order:
-
support
-
Factory visit:
-
support
Introduction of Sales Underground Mining Mucker Machine Tunnel Rock Mucking Loading Machine
Z Series Mining Mucker Machines are designed as light,compact,flexible,easy operated and stable working equipment for underground mining,suitable for normal rocks,stones,grits,iron mine,gold mine,granite mine,and other metal or nonmetal mines. zmwm02
Maximum size of the loadable rocks can be 500mm diameter.And they gain highest efficiency by loading 100-400mm diameter rocks.
Z Series Mining Mucker Machines are suitable for level tunnels(8 degree maximum)for various underground mines.
Z Series Mining Mucker Machines are designed as electric or compressed air driven, single bucketed and automatic walking machines by loading at front and unloading at back.
Main Parameter of Sales Underground Mining Mucker Machine Tunnel Rock Mucking Loading Machine
|
Specifications |
Unit |
Z-17W |
Z-17AW |
Z-20CW |
Z-30W |
|
Bucket size |
cbm |
0.17 |
0.17 |
0.2 |
0.30 |
|
Productivity |
cbm/h |
25-30 |
25-30 |
40 |
72 |
|
Loading width |
mm |
1700 |
1700 |
1950 |
2200-2500 Adjustable |
|
Discharge height H2 |
mm |
1010 |
1010 |
1250 |
1300 |
|
Discharge reach S |
mm |
300 |
300 |
350 |
350 |
|
Max work height H1 |
mm |
1750 |
1900 |
1940 |
2250 |
|
Length |
mm |
2175 |
2175 |
2184 |
2525 |
|
Width |
mm |
1070 |
1070 |
1070 |
1200 |
|
Height |
mm |
1200 |
1200 |
1200 |
1443 |
|
Electric motor type |
JI2-8 |
JI2-8 |
JI2-8 |
JI2-8 |
|
|
Electric motor power |
KW |
10.5*2 |
10.5*2 |
10.5*2 |
13*2 |
|
Operating mass |
Ton |
3.4/3.4 |
3.4/3.4 |
3.4/3.5 |
4.3/4.5 |

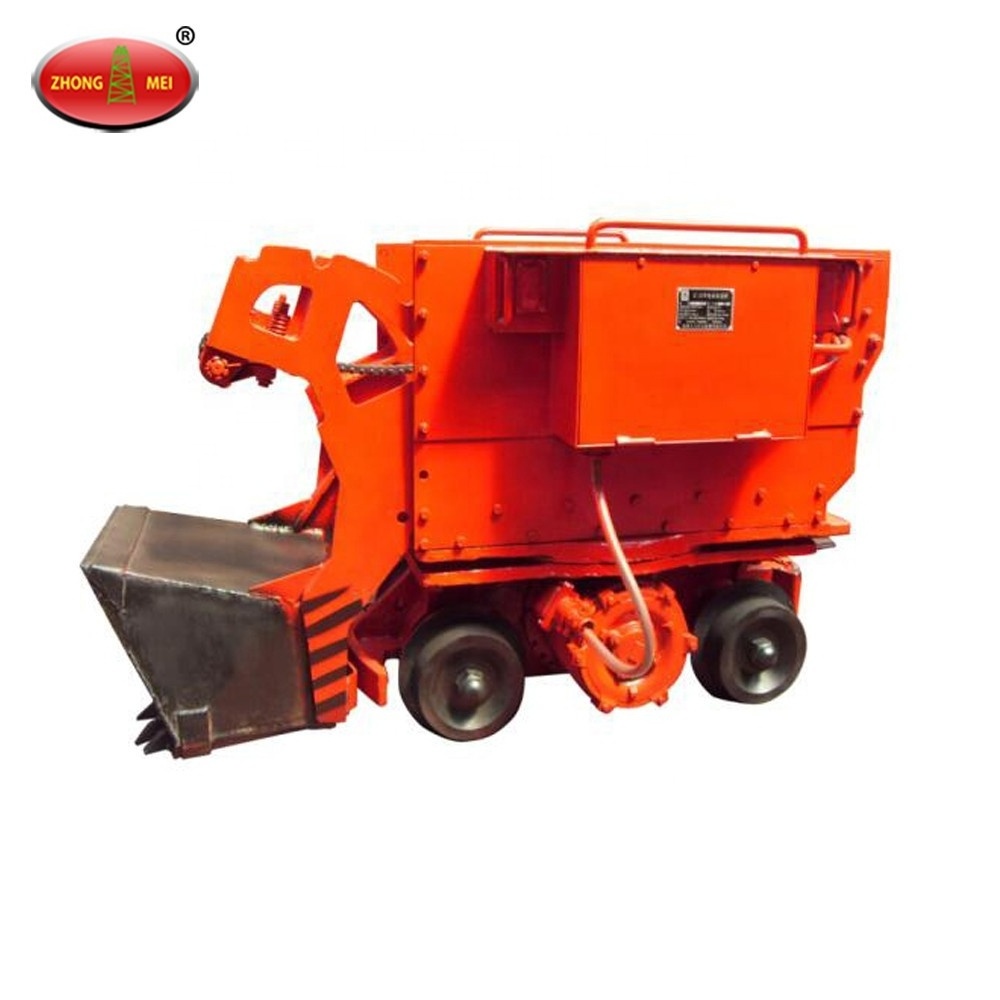

Figure Images of Sales Underground Mining Mucker Machine Tunnel Rock Mucking Loading Machine
