Quick Details
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PS20
-
Max. Working Pressure:
-
500bar
-
IP level:
-
IP65
-
Name:
-
Diaphragm / Piston pressure switch
-
Accuracy:
-
3% of adjusted value
-
Pressure Range 1:
-
≤12 bar (Diaphragm type)
-
Pressure Range 2:
-
>12 bar (Piston Type)
-
Process connector:
-
G1/4, G1/2, 1/2NPT, 1/4NPT(Customer design)
-
Weight:
-
0.1kg
-
Material:
-
steel / copper
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
≤ AC 250V , 0.5A
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PS20
-
Max. Working Pressure:
-
500bar
-
IP level:
-
IP65
-
Name:
-
Diaphragm / Piston pressure switch
-
Accuracy:
-
3% of adjusted value
-
Pressure Range 1:
-
≤12 bar (Diaphragm type)
-
Pressure Range 2:
-
>12 bar (Piston Type)
-
Process connector:
-
G1/4, G1/2, 1/2NPT, 1/4NPT(Customer design)
-
Weight:
-
0.1kg
-
Material:
-
steel / copper
Product Description

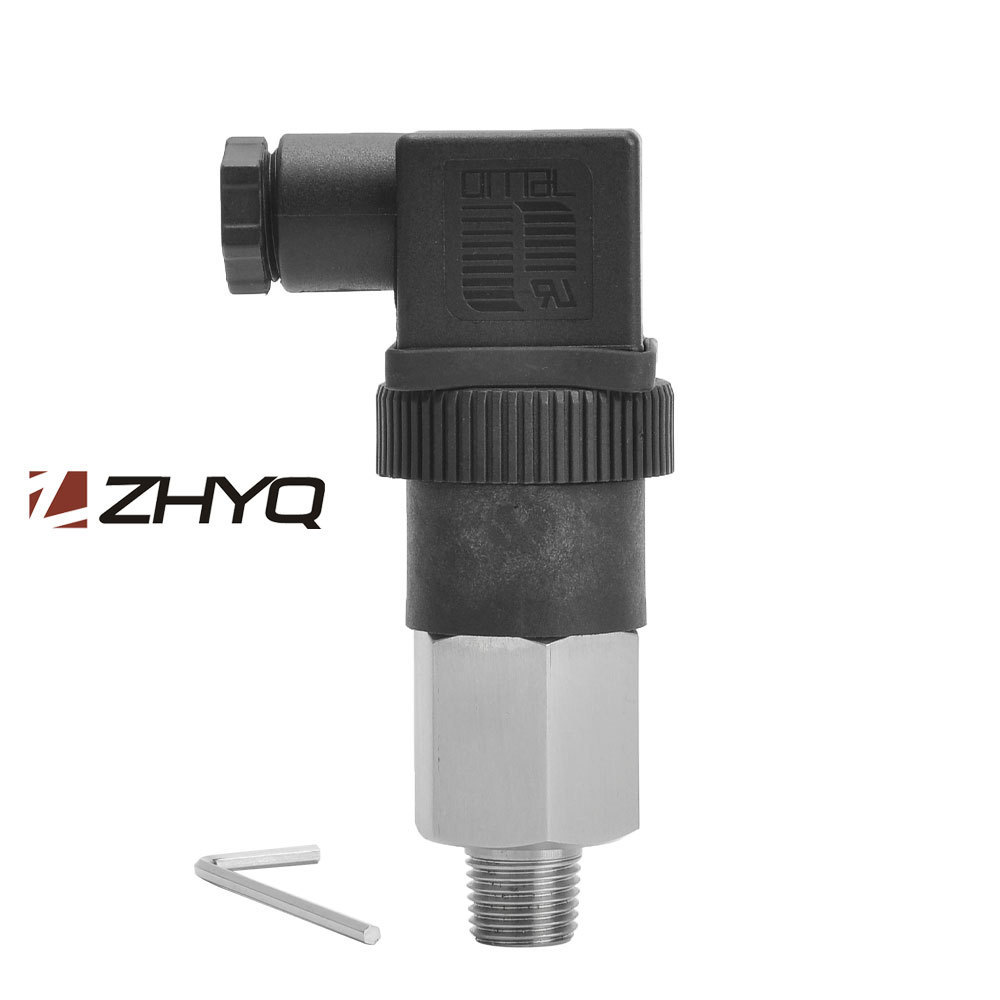

Mechanical Diaphragm / Piston Pressure Switch
PS20 is mechanical pressure switch , the working principle and structure is built-in piston connected with precision springs, when pressure changes, the corresponding changes in the spring scale, when the pressure reached set value, can trigger preset mechanical structure and signal switch . Diaphragm and piston type pressure switches featuring the standard design are available off-the-shelf as break contacts, make contactsor changeover contacts, An adjustment screw makes it easy to adjust the switching point on-site.
Gold-plated contacts are also available as an option for small switching currents.
Specification
|
Range:
|
≤12 bar (Diaphragm type)
>12 bar (Piston Type) |
|
Accuracy:
|
3% of adjusted value
|
|
Hysteresis
|
10…20% of adjusted value
|
|
Repeatability
|
5% of adjusted value
|
|
Working temperature
|
-20~85℃
|
|
Protection grade
|
IP65
|
|
Output
|
Power rating output
≤ DC 42V , 1A ≤ DC 115V , 0.15A ≤ AC 42V , 3A ≤ AC 125V , 3A ≤ AC 250V , 0.5A |
|
Process connector:
|
G1/4, G1/2, 1/2NPT, 1/4NPT(Customer design)
|
|
Electric connector:
|
Hirschman(DIN), other type optional
|
|
Material
|
Diaphragm type: NBR
Piston type : steal with NBR-seal Process connection : Galvanized steel Housing shell : Engineering plastics |
Features
◆ Compact structure , can be used for the most diverse requirements.
◆ DIN connector design , easy to Wiring and open inside to adjust the range .
◆ Widely measurement range , and high overload pressure .
◆ High repeatedly.
◆ have Gold-plated and large capacity NC/ NO contact .
◆ NC/NO or changeover contact for positive and negative gauge pressure
◆ DIN connector design , easy to Wiring and open inside to adjust the range .
◆ Widely measurement range , and high overload pressure .
◆ High repeatedly.
◆ have Gold-plated and large capacity NC/ NO contact .
◆ NC/NO or changeover contact for positive and negative gauge pressure
Application
◆ can be used universally in machine and plant construction
◆ water
◆ oil
◆ air
Dimension
Adjust the pressure switch vale steps
Step 1：
With screwdriver loosen fixed nut and removeDIN female plug, please don't rotate the DINconnector, to avoid broken internal wiring
Step 2：
With reference to above, use a screwdriver toadjust pressure switch value , clockwise adjusthigher , anticlockwise adjust lower
