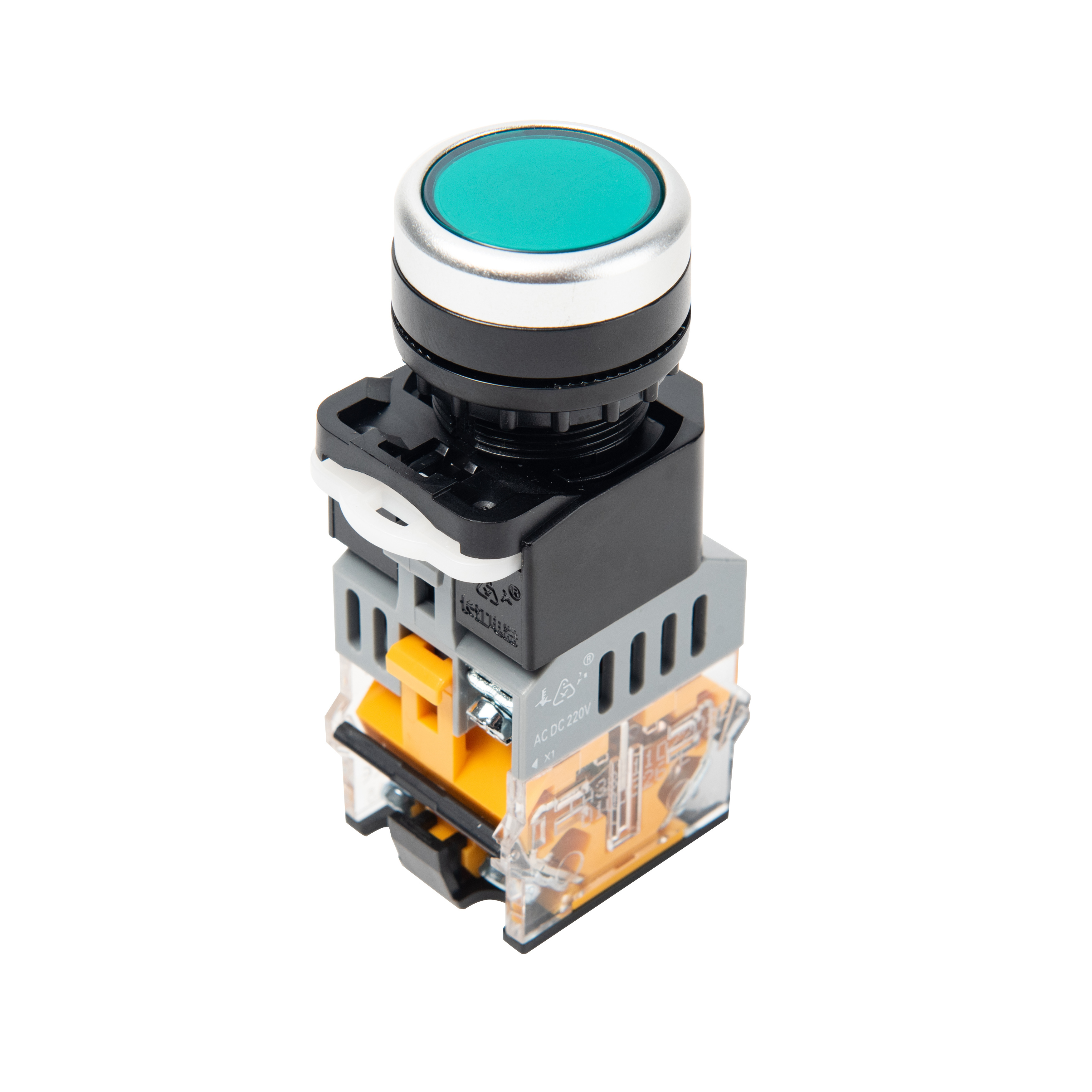

LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch
LA38 series 22mm illuminated electrical light push button switch

LA38 series 22mm illuminated electrical light push button switch

FOB Reference Price: Get Latest Price
≥10 Pieces
US $3.2
≥100 Pieces
US $3
≥500 Pieces
US $2.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
Changjiang electric
Model Number:
LA38-**D/203
Product name:
LA38 series 22mm illuminated electrical light push button switch
Mounting hole:
22mm
Material:
flame-retardant plastic
Operation type:
momentary or locked
Contact configuration:
1NO/1NC/2NO/2NC/1NO1NC...
LED color:
Red, green, yellow, white and blue
safety cover:
can be matched with waterproof cover QA-FS1, up to IP67
Certificate:
CCC CE ROSH
Button color:
Red Green Black White
Application:
Industrial Control
Certification:
CE

Quick Details

Protection Level:
IP54/IP65
Max. Current:
AC-15:Ue:AC220V/Ie:5.5A
Max. Voltage:
500V
Place of Origin:
Jiangsu, China
Brand Name:
Changjiang electric
Model Number:
LA38-**D/203
Product name:
LA38 series 22mm illuminated electrical light push button switch
Mounting hole:
22mm
Material:
flame-retardant plastic
Operation type:
momentary or locked
Contact configuration:
1NO/1NC/2NO/2NC/1NO1NC...
LED color:
Red, green, yellow, white and blue
safety cover:
can be matched with waterproof cover QA-FS1, up to IP67
Certificate:
CCC CE ROSH
Button color:
Red Green Black White
Application:
Industrial Control
Certification:
CE
Product Overview
LA38 series push button switch
LA38 Series Button Switch is used for remote control in electromagnetic starters,contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Details Images
Product Parameter
Type specification
LA38-**D/203
(**means contact,10:1NO, 01:1NC, 11:1NO+1NC, 20: 2NO, 02: 2NC,6 pairs of contacts at most )
Product Name
push button switch
Products Standard
GB/T 14048.5
Operation Condition
Altitude height
Environment temperature
Storage
temperature
Relative humidity
Pollution class
Install type
≤2000m
-25℃~+55℃
-40℃~+70℃
≤90%
3
Main technical index
Common parameter
Rated insulated Voltage
500V
Rated shock withstand voltage
4000V
Insulation resistance
≥50MΩ
Front panel protection degree
IP54,IP65 customizable
power frequency withstand voltage
1.89KV/5S
Button parameters
Resistive current
10A

Contact Resistance
≤50mΩ

Rated working Voltage /Current
AC-15
DC-13
380V/4A
220V/5.5A
110V/1A
220V/0.45A
Electrical life
500,000 times
Mechanical life
1000,000 times
Lamp parameters
Rated working Voltage/Current
AC DC(V)
AC(V)
6~220
220~380
≤15±3mA
≤15±3mA
Life of signal lamps
≥30000h
Outline Drawing
Installation Drawing
Successful Application
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd has become a leading manufacturer of low-voltage electrical appliances and lighting of construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of Jiangyin Changjiang Electric Appliance covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.
Product Packaging
Different box size
Professional packaging
Related Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.

Q: What is your terms of payment ?
A: Payment ≤ 3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
