Quick Details
-
Dimensions(L*W*H):
-
93*72*52cm
-
Weight:
-
100 KG
-
Ink Color:
-
CMYK+W+V(DTF crystal label) or W+CMYK(T-shirt)
-
Media Height:
-
0mm-120mm
-
RIP software:
-
Maintop (standard) /Photoprint (Optional)
-
Print head:
-
XP600 * 2
-
Guide Rail:
-
THK mute guide rail
-
Operating system:
-
Win 7/Win10
-
Support picture format:
-
JPG, TIFF,PDF,TIFF etc
-
Key words:
-
DTF UV Printer
-
Print resolution:
-
720x1800 dpi
-
Cerification:
-
CE MSDS ROHS
-
Voltage:
-
AC 220V, 50/60HZ
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Print Dimension:
-
300*400mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Locor
-
Dimensions(L*W*H):
-
93*72*52cm
-
Weight:
-
100 KG
-
Ink Color:
-
CMYK+W+V(DTF crystal label) or W+CMYK(T-shirt)
-
Media Height:
-
0mm-120mm
-
RIP software:
-
Maintop (standard) /Photoprint (Optional)
-
Print head:
-
XP600 * 2
-
Guide Rail:
-
THK mute guide rail
-
Operating system:
-
Win 7/Win10
-
Support picture format:
-
JPG, TIFF,PDF,TIFF etc
-
Key words:
-
DTF UV Printer
-
Print resolution:
-
720x1800 dpi
-
Cerification:
-
CE MSDS ROHS
-
Voltage:
-
AC 220V, 50/60HZ
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Product Description

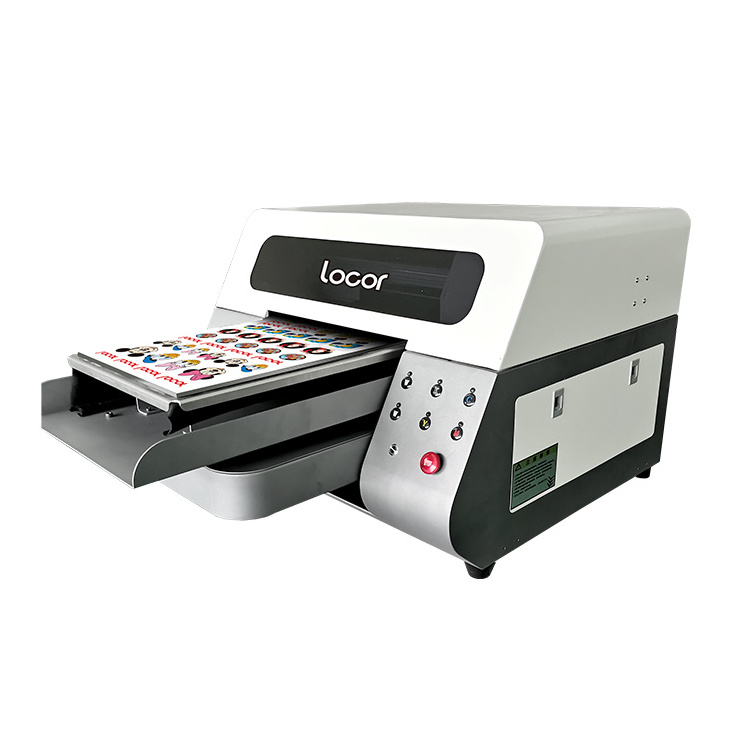

Locor uv led printer flatbed A3 printing machine for aluminum metal Crystal 3d T-shirt DTG
A3 size gift box/leather uv dtf AB film printer 2 pcs XP600 heads DTG T-shirt printing
Mimage A3 size uv flatbed printer is a multifuctional machine.
1. Use uv ink, it is suitalbe for different materials printing,such as flat,wood,ceramic,glass,metal,acrylic. bent and cylindrical objects and output a good 3D texture,high color fastness and scratch resistance printing effect, CMYK+White+Varnish.
2. Use pigment ink, it can also print on t shirts, clothes directly. A3 desktop t-shirt printer with two pcs EP XP600 print heads, 6 colors (CMYK+W) , this machine can print any color pictures on all colors of various garments,like cotton, linen, polyester, nylon, man-made fibers.
Detailed Specification of Mimage A3 Size UV Flatbed Printer:
|
Product Model
|
A3 UV Flatbed Printer
|
|
||
|
Print Control
|
|
|
||
|
Printer Head
|
XP600*2
|
|
||
|
Ink Type and Ink Color
|
UV ink
|
CMYK+W+V
|
||
|
|
Pigment ink
|
CMYK+W
|
||
|
Ink Bottle Volume
|
500ml bottle for ink supply
|
|
||
|
Ink Supply System
|
Positive pressure ink supply system
|
|
||
|
Printing Precision
|
360*720 dpi / 360*1080 dpi / 720*720 dpi
|
|
||
|
Printing speed
|
4 pass 360*720dpi : 3 m²/h
|
|
||
|
|
6 pass 360*1080dpi : 2 m²/h
|
|
||
|
|
8 pass 720*720 dpi : 1 m²/h
|
|
||
|
RIP Software
|
Maintop / Photoprint
|
|
||
|
Color Control
|
International standard ICC color control
|
|
||
|
File Format
|
TIFF, JPEG, JPG, PNG,TIFF etc
|
|
||
|
PC Requirement
|
i5 / i7 , Discrete graphics
|
|
||
|
Operating System
|
Win 7 /Win 10
|
|
||
|
Media System
|
|
|
||
|
Material Handling
|
Vacuuming Media Suction Platform
|
|
||
|
Max Media Thickness
|
120 mm
|
|
||
|
Maximum Print size
|
300*400mm/11.8*15.7 inches
|
|
||
|
Printable Media
|
DTF AB film, acrylic, aluminous model board, ceramic tile, foam board, sheet metal, glass, cardboard, leather, phone case and
other flat media, cloth,textile |
|
||
|
Operation Environment
|
|
|
||
|
Temperature
|
Temperature: 20℃-35℃
|
|
||
|
Humidity
|
35%-65%RH
|
|
||
|
Power Requirement
|
|
|
||
|
Power Supply
|
Single Phase, AC 220V ±10% , 50/60Hz
|
|
||
|
Power
|
350W
|
|
||
|
Size and Weight
|
|
|
||
|
Machine Size(L*W*H)
|
930*720*520mm
|
|
||
|
Package Size(L*W*H)
|
1040*900*780mm
|
|
||
Our Service
Guaranteed Service Support:
1 Year Warranty for printer, not include print head, damper, cable and cap, as they are consumables.
3 Years Warranty for boards whole life online after sales service, professional engineers team for online technical support and solutions
More than 18 years rich printer experience Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.
