Quick Details
-
Brand Name:
-
XinLi
-
Product name:
-
X ray Ceramic Tube
-
Function:
-
x-ray generator
-
Power supply:
-
AC220V ± 10%
-
Radiation anlge:
-
40+5 °
-
foucus size:
-
2.0X2.0
-
Warranty:
-
12 Months
-
Max diameter:
-
132mm
-
Weight:
-
3.2kg
-
Certificate:
-
ISO
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Liaoning, China
-
Model Number:
-
XG-2505
-
Brand Name:
-
XinLi
-
Product name:
-
X ray Ceramic Tube
-
Function:
-
x-ray generator
-
Power supply:
-
AC220V ± 10%
-
Radiation anlge:
-
40+5 °
-
foucus size:
-
2.0X2.0
-
Warranty:
-
12 Months
-
Max diameter:
-
132mm
-
Weight:
-
3.2kg
-
Certificate:
-
ISO

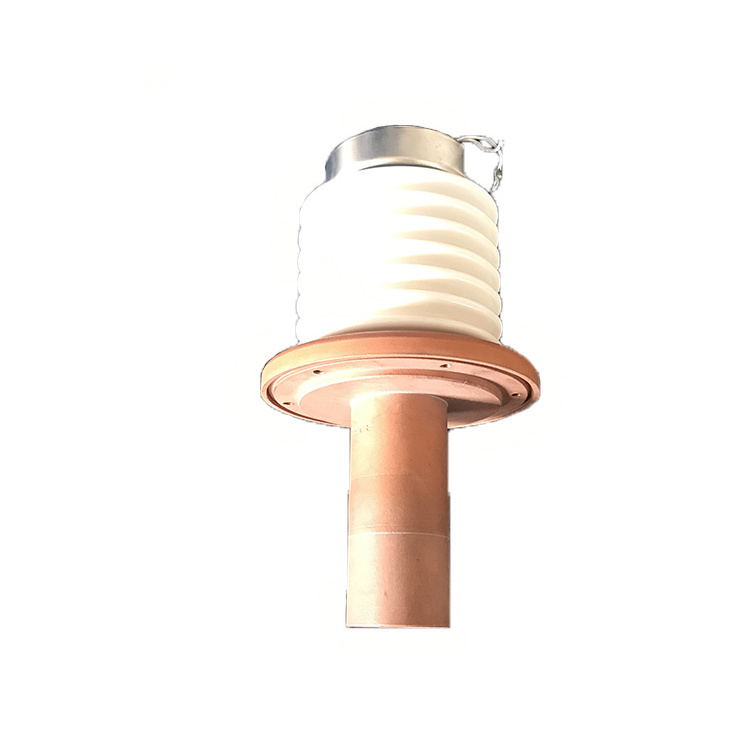

XG-2505 X ray Ceramic Tube
performance :
| No. | type | tube voltage(KVp) |
tube current
(mA) |
focus spot (mm) |
filament
valtage(V) |
filament current(A) |
radiation angle | Suitable for type |
| 1 | XG-1605 | 160 | 5 | 1.5×1.5 | 4~4.5 | 4 | 40°+5° | XXG-1605 |
| 2 | XG-1605P | 160 | 5 | 1.0×2.0 | 4~4.5 | 4 | 25°×360° | XXGH-1605 |
| 3 | XG-1605Z | 160 | 5 | 1.0×2.0 | 4~4.5 | 4 | 30° × 360° | XXGHZ-1605 |
| 4 | XG-2005 | 200 | 5 | 2.0×2.0 | 5.8~6.2 | 4 | 40°+5° | XXG-2005 |
| 5 | XG-2005P | 200 | 5 | 1.0×2.4 | 5.8~6.2 | 4 | 25°×360° | XXGH-2005 |
| 6 | XG-2005Z | 200 | 5 | 1.0×2.5 | 5.8~6.2 | 4 | 30°×360° | XXGHZ-2005 |
| 7 | XG-2505 | 250 | 5 | 2.0×2.0 | 5.8~6.2 | 4 | 40°+5° | XXG-2505 |
| 8 | XG-2505P | 250 | 5 | 1.0×2.4 | 5.8~6.2 | 4 | 25°×360° | XXGH-2505 |
| 9 | XG-2505Z | 250 | 5 | 1.0×2.5 | 5.8~6.2 | 4 | 30°×360° | XXGHZ-2505 |
| 10 | XG-3005 | 300 | 5 | 2.5×2.5 | 5.8~6.2 | 4 | 40°+5° | XXG-3005 |
| 11 | XG-3005P | 300 | 5 | 1.0×3.4 | 5.8~6.2 | 4 | 25°×360° | XXGH-3005 |
| 12 | XG-3005Z | 300 | 5 | 1.0×3.5 | 5.8~6.2 | 4 | 30°×360° | XXGHZ-3005 |
| 13 | XG-3505 | 350 | 5 | 3.0×3.0 | 6~7 | 4 | 40°+5° | XXG-3505 |
| 14 | XG-3505P | 350 | 5 | 1.5×3.4 | 6~7 | 4 | 25°×360° | XXGH-3505 |
| 15 | XG-3505Z | 350 | 5 | 1.5×3.5 | 6~7 | 4 | 30°×360° | XXGHZ-3505 |
Feature
1. Anode Grounded
2. Tungsten Filament
3. H igh V acuum
4. Beryllium Window
5. Tungsten Target
6. Air-forced Cooling
7. Small Focal Size
Ceramic X-ray Tubes are used to the following x-ray machines:
l Directional X-ray Machines:
XXG-1605
XXG-2005
XXG-2505
XXG-3005
l Panoramic X-ray Machines:
XXGH-2505 (Flat Target)
XXGH-3005 (Flat Target)
XXGz-2505 (Cone Target)
XXGz-3005 (Cone Target)
