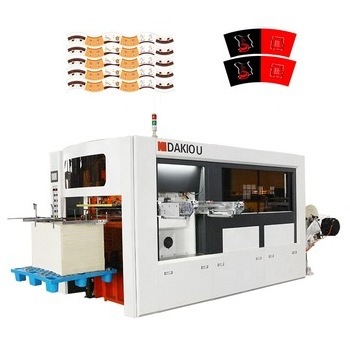

Heavy Duty Professional High Speed Auto Die Cutting Machine

Heavy Duty Professional High Speed Auto Die Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $36000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Name:: Die Cutting Machine

Application:: Plastic Film

Max Paper Size:: 950*550mm

Speed:: Fast

Material:: Foundry Iron

MOQ:: 1

Overall Dimension:: 4100*2000*1850mm

Quick Details

Type:: Die-cutting Machine

Place of Origin:: Zhejiang, China

Product name:: Manual Die Cutting Machine

Name:: Die Cutting Machine

Application:: Plastic Film

Max Paper Size:: 950*550mm

Speed:: Fast

Material:: Foundry Iron

MOQ:: 1

Overall Dimension:: 4100*2000*1850mm

Heavy Duty Professional Hydraulic High Speed Auto Die Cutting Machine

Product Show

Product Parameters

PY-950 is an ideal and professional machine in die-cutting, creasing , embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.

Technical Specification

Type:	PY-950
Cut Precision:	± 0.10mm
Production capacity:	90-140 times/min
Max Paper Convey Width:	850mm
Suitable Material:	100-800g/m2 coated paper, white cardboard
Total Power:	11KW
Total Weight:	6500KGS
Maximum cutting size:	950 x540mm / 950 x640mm
Maximum Pressure:	250T
Overall Dimension:	4200 x 2100 x 1850 mm
Working Air Source:	Air pressure 0.5-0.7Mpa (Need to buy compressor)
