Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
7300X2500X2960
-
Cargo Tank Dimension:
-
4500X2300X1200
-
Product name:
-
Dumper Truck
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Place of Origin:
-
Hubei, China
-
Dimensions (L x W x H) (mm):
-
7300X2500X2960
-
Cargo Tank Dimension:
-
4500X2300X1200
-
Product name:
-
Dumper Truck
4x2 Dongfeng Brand 10 tons to 15 tons Dump Tipper Truck with 180hp Engine
Generally called a truck, it refers to a car mainly used to transport goods, and sometimes refers to a car that can tow other vehicles, belonging to the category of commercial vehicles. Generally, according to the weight of the car, it can be divided into two types: heavy and light. Most trucks are powered by diesel engines, but some light trucks use gasoline, LPG or natural gas.

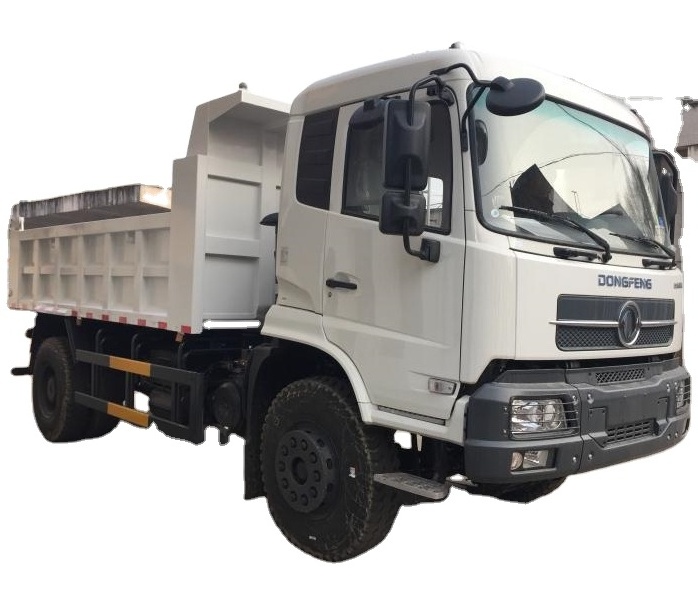

4x2 Dongfeng Brand 10 tons to 15 tons Dump Tipper Truck with 180hp Engine Image
Dongfeng 10 tons Tipper Truck Specifications
|
ITEM |
UNIT |
PARAMETER |
||
|
Vehicle |
|
Dongfeng tipper truck |
||
|
Overall dimensions |
mm
|
7300×2500×2960 |
||
|
Bucket dimension |
4500x2300x800 front lifting |
|||
|
GVW |
kg
|
16000 |
||
|
Curb weight |
6000 |
|||
|
loading weight |
10000 |
|||
|
Wheel base |
mm
|
4200 |
||
|
F/R track base |
2022/1830 |
|||
|
Suspension |
1450/1320 |
|||
|
Approach/departure angle |
° |
16/18 |
||
|
Max speed |
km/h |
100 |
||
|
Engine
|
Manufacturer |
YC6J180-33 |
||
|
Maximum power |
132 kw (180hp) at 2500 rpm |
|||
|
Emission level |
Eu 3 |
|||
|
Maximum torque |
650 Nm at 1200-1700 rpm |
|||
|
Number of cylinders |
4 |
|||
|
Clutch
|
Plate's diameter |
¢395mm |
||
|
operating system |
Hydraulic control with air booster, pushing |
|||
|
Axle
|
Front |
Elliot type, I beam section |
6 tons |
|
|
Rear |
Single reduction , ratio 5.286 |
13 tons |
||
|
Tires |
11R22.5 |
|||
|
Suspension
|
Front |
8- Leaf spring |
||
|
Rear |
(9+8)-leaf spring |
|||
|
Battery
|
Voltage (V) |
24 |
||
|
Battery capacity (A.h) |
140X2 |
|||
|
Fuel Tank
|
Type |
Steel fuel tank |
||
|
Capacity |
200lit |
|||
Tipper truck workshop
Tipper truck dump truck transportation
Tipper dump truck export cases
Enterprise Profile
Major Products
Export cases
Freightage
For more videos and pictures, feel free to contact Larry by 24 hours telephone number(whatsapp and wechat) +86 15071226018
