make magic wall art wall into interactive by finger.
fast responds
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
P3
-
Touch way:
-
Hand touch,Ball touch,Long distance interactive
-
Touch area:
-
96*5 meters
-
Multi touch:
-
30 points
-
Calibration:
-
5s auto calibration software
-
Touch projection screen:
-
175 inch to 660 inch
-
Technology:
-
Laser Image Calibration Technology(LICT)
-
Positional Accuracy:
-
±2 Pixel
-
Latency:
-
Less than 60ms
-
Certificate:
-
CE FCC
-
OS Requirement:
-
Wins 7, Wins 8, Wins 10, Android
Quick Details
-
Occasion:
-
indoor commercial amusement park, shopping mall, kindergarten, educational play area, kindergarten, daycare, home kids zone, educational
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gloview
-
Model Number:
-
P3
-
Touch way:
-
Hand touch,Ball touch,Long distance interactive
-
Touch area:
-
96*5 meters
-
Multi touch:
-
30 points
-
Calibration:
-
5s auto calibration software
-
Touch projection screen:
-
175 inch to 660 inch
-
Technology:
-
Laser Image Calibration Technology(LICT)
-
Positional Accuracy:
-
±2 Pixel
-
Latency:
-
Less than 60ms
-
Certificate:
-
CE FCC
-
OS Requirement:
-
Wins 7, Wins 8, Wins 10, Android
laser shooting pistol for wall interactive projection wall 30 people 60fps interactive wall shooting games
Product Description
Touch Kit Introduction
Only two small parts laser module and camera module to make any screen touching use finger.
Laser module can be fixed on screen surface(projection screen,LED screen,LCD Splicing screen). It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the screen surface, 1-2mm above the screen surface. When the finger or any non-transparent object touch this virtual surface, the light will be reflected and detected by the camera module. Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Our Advantages
1:Large touch screen
36*3 meters finger writing touch 2mm precision touch;
96*5 meters palm touch 1cm precision touch.
2:14 years R&D experienced.
3:calibration:
5 seconds auto calibration software
4:low latency
5:Multi touch:30points(TUIO /HID Mouse Protocol）.
6:curve curtain precision touch(remote control laser lr pen)
7:More beautiful (100% rimless)
8:Plenty of gestures recognition
Application scenarios
in kids playground, kids tossing ball on wall, turn wall interactive.
IR gun shooting.
On exhibition,museum field.target shooting

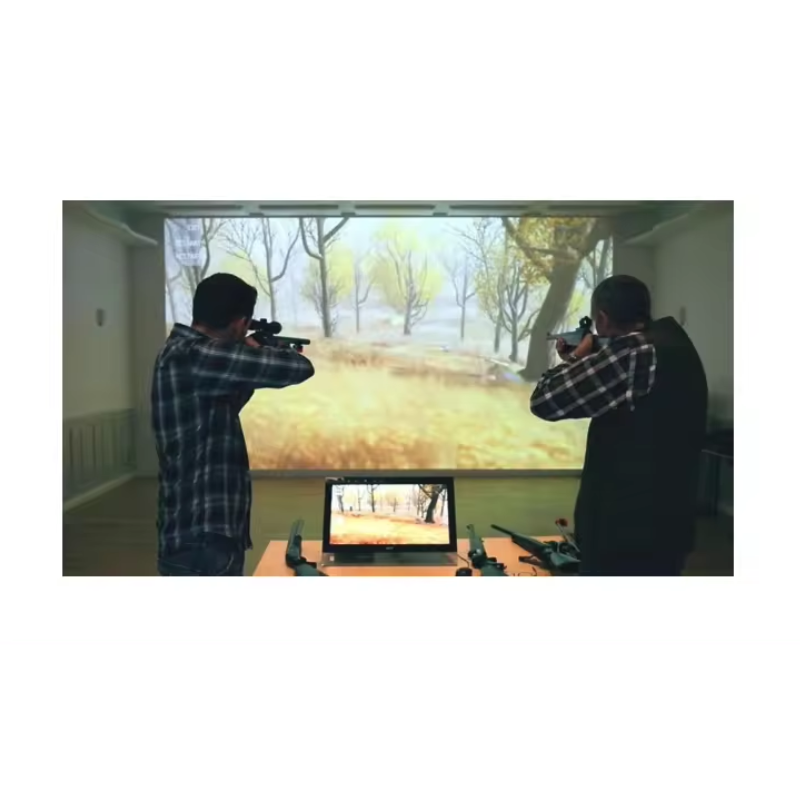

simulator system for policy or some institution training.
simulator system for policy or some institution training.
IR gun shooting.
In kids playground,use toys gun shooing on wall make wall interactive, very funny.
On exhibition, museum field IR torch turns a static wall into a dynamic one, very attractive.
Game Solutions both on wall and on floor
Wall Games software
35 themes on wall interactive games,supports multi screen (more projectors work together)
Floor Games software
70 themes on floor interactive games,supports multi screen (more projectors work together)
Our solutions:
Dimension&performance
|
Model No.
|
Num of Laser sensor
|
Num of Camera
|
Max touching size/fps
|
Max touching length by width
|
Comment
|
|||||
|
JP Series
|
|
|
|
|
|
|||||
|
JP15
|
1
|
1
|
186inch/30fps
|
2.5*4m
|
Standard definition camera
|
|||||
|
JP2
|
1
|
1
|
246inch/30fps
|
3*5.5m
|
Standard definition camera
|
|||||
|
JP3
|
1
|
1
|
344inch/30fps
|
3.5*8m
|
Standard definition camera
|
|||||
|
JP4
|
1
|
1
|
424inch/30fps
|
4*10m
|
Standard definition camera
|
|||||
|
JP5
|
2
|
1
|
573inch/30fps
|
4*14m
|
Standard definition camera
|
|||||
|
T Series
|
|
|
|
|
|
|||||
|
T1
|
1
|
1
|
158inch/60fps
|
2*3.5m
|
Standard definition camera
|
|||||
|
T2
|
1
|
1
|
246inch/60fps
|
3*5.5m
|
Standard definition camera
|
|||||
|
T3
|
1
|
1
|
344inch/60fps
|
3.5*8m
|
Standard definition camera
|
|||||
|
T4
|
1
|
1
|
424inch/60fps
|
4*10m
|
HD camera |
|||||
|
T5
|
2
|
1
|
573inch/60fps
|
4*14m
|
HD camera |
|||||
|
JP Pro Series
|
|
|
|
|
|
|||||
|
JP4 Pro
|
1
|
1
|
512inch/30fps
|
5*12m
|
HD camera
|
|||||
|
JP5 Pro
|
2
|
1
|
660inch/30fps
|
5*16m
|
HD camera
|
|||||
|
T Pro Series
|
|
|
|
|
|
|||||
|
T4 Pro
|
1
|
1
|
512inch/60fps
|
5*12m
|
HD camera
|
|||||
|
T5 Pro
|
2
|
1
|
660inch/60fps
|
5*16m
|
HD camera
|
|||||
|
High Fps Series
|
|
|
|
|
|
|||||
|
TX Series
|
|
|
|
|
|
|||||
|
TX1
|
1
|
1
|
352inch/120fps
|
4*8m
|
HD camera
|
|||||
|
TX2
|
2
|
1
|
498inch/120fps
|
4*12m
|
HD camera
|
|||||
|
TU Series
|
|
|
|
|
|
|||||
|
TU1
|
1
|
1
|
169inch/800fps
|
2.5*3.5m
|
HD camera
|
|||||
|
TU2
|
2
|
1
|
203inch/800fps
|
2.5*4.5m
|
HD camera
|
|||||
Installation Way
Product Parameters
More Cases
Competing comparison
Gloview VS Lidar
