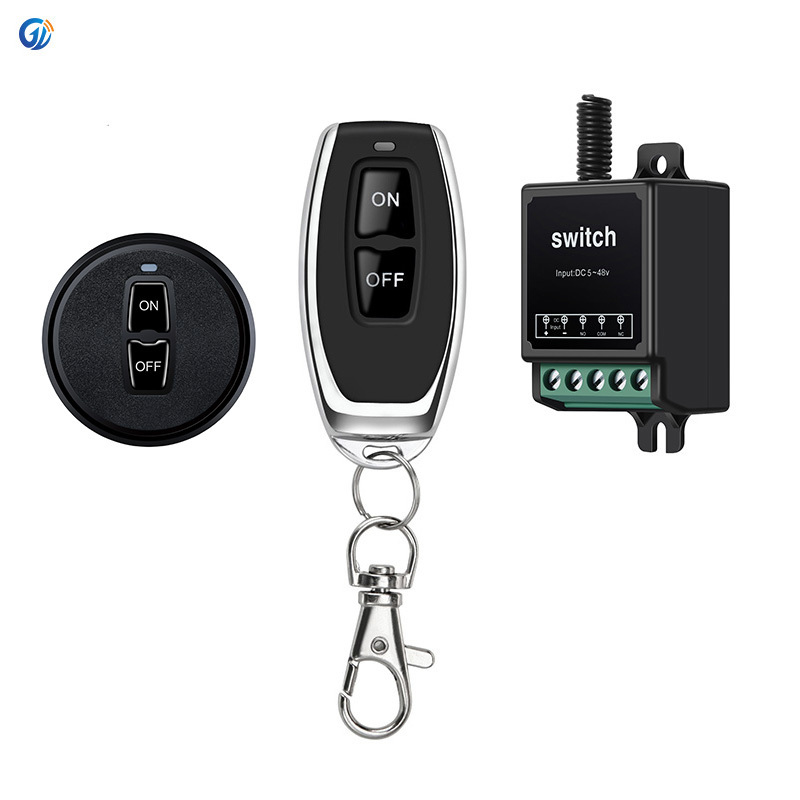

Mini 5v Relay Wireless Rf Receiver on off 433mhz Remote Control 12v Dry Contact Switch Wireless Switch Remote Control Switches

Mini 5v Relay Wireless Rf Receiver on off 433mhz Remote Control 12v Dry Contact Switch Wireless Switch Remote Control Switches

FOB Reference Price: Get Latest Price

≥5 Pieces

US $7.2

≥100 Pieces

US $6.9

≥1000 Pieces

US $5.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GLC

Model Number:: GLC-DC-XTJ01

Operating Temperature:: -20~60

Product Name:: Wireless Remote Control Switch

Material:: PC

Wireless Standard:: 433MHz

Max. Power:: 5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W

Voltage:: DC5V 6V 9V 12V 24V 36V 48V

Keyword:: RF Wireless Switch

Feature:: Door Automation

Application:: Garage Door

Usage:: Lamp Motor

Brand:: GLC

Certification:: CE

Quick Details

Max. Current:: 10A

Max. Voltage:: DC5V 6V 9V 12V 24V 48V

Place of Origin:: Guangdong, China

Brand Name:: GLC

Model Number:: GLC-DC-XTJ01

Operating Temperature:: -20~60

Product Name:: Wireless Remote Control Switch

Material:: PC

Wireless Standard:: 433MHz

Max. Power:: 5V≤50W 6V≤60W 9V≤90W 12V≤120W 24V≤240W 36V≤360W 48V≤480W

Voltage:: DC5V 6V 9V 12V 24V 36V 48V

Keyword:: RF Wireless Switch

Feature:: Door Automation

Application:: Garage Door

Usage:: Lamp Motor

Brand:: GLC

Certification:: CE

Product features:

1 operating voltage： DC 5V 6V 9V 12V 24V 36V 48V
2. Small size: 42 *31* 24 mm .

3.Working mode support: self-locking 、 interlocking 、manual on/off. (Forgetting to bring the remote control can also control on and off)
4. One receiver can pair 32 remote controls without interfering with each other
5. Convenient wiring and no need to remove the shell
6. Various combinations of working mode and remote control distance are provided

6.A variety of matching methods, a variety of remote control distance optional
7 Widely used in household appliances, lamps, garden irrigation, access control, industrial equipment, etc.

Product Paramenters

Key word	remote control switch	Working voltage	DC 5V 6V 9V 12V 24V 36V 48V
Product Size	423124mm	Working frequency	433.932 MHz
Emission current	≤0.01 uA	Remote distance	50m~100m
Remote control size	122961mm	Remote control battery	CR2016 two in series
Current	10A
Working mode	self-lock interlock Inching Manual on/off

voltage	5v	6v	9v	12v	24v	36v	48v
Load power	50W	60W	90W	120W	240W	360W	480W

Details Images

Applicable scope

Installation Instructions

product assortment

Learn Matching Instructions

Introduction to the working mode

Self-locking mode: with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual on/off: no remote control, press the learning button on the receiver, press one on, then one off.

Pairing Method:

Inching mode： controller is powered on，press the learn button 2 times in a row，indicator light is on，then press the ON or OFF button on the remote control panel，the indicator light turns off after flashing 3 times,indicates pairing is complete. self-locking mode： controller is powered on,press the learn button 3 times in a row,indicator light is on,then press the ON or OFF key on the remote control panel,the indicator light flashes 3 times and then goes out，indicates pairing is complete.

Interlocking Mode： controller is powered on,press the learn button 4 times in a row,indicator light is on,press the ON button of the remote control,the indicator light flashes 3 times and then stays on,press the OFF key again,the indicator light flashes 3 times and then goes out，indicates successful pairing.

Clear code ：controller is powered on，press the learn button 8 times in a row,the indicator light flashes first, then goes off,indicates that the clear encoding is successful.

Notice： Each controller can be paired with up to 10 buttons,Each button can only correspond to one state,If you have already matched the code, you need to clear the code first, and then re-code.

Certifications

FAQ

Q1 Are you a factory or a trading company
A1: We are a factory.

Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.

Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.

Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds

Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.

Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected

Q7: What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
