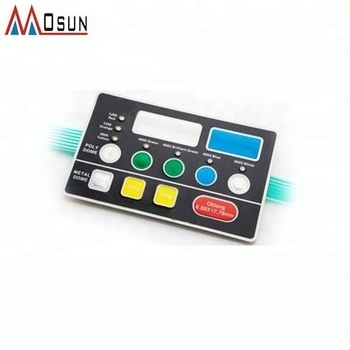

Custom made FPC copper flexible membrane switch

Global top supplier of Membrane keypad here, Shanghai MOSUN is manufacturer located in Shanghai.
W: www.keypadfactory.com ; Order to us: Christina.liu(@)shmosun.cn ; P/whatsapp:+86-18621111958

Low MOQ: 1pc

Within 5 Hours Response :                                         to your technical questions and pricing requests

Rapid prototyping :                                                      3-8 working days finish sample

Technical Team more than 10 years experience :  can recommend matching raw materials and components

Quality Consistency :                                                  ISO 9001: 2008 Certified

Factory Located In Shanghai :                                  40 minutes from Pudong and Hongqiao Airport

Best one-stop service :                              Membrane switch, membrane switch+PCB, membrane switch+Metal Plate

Electrical Specifications

Electronic Characteristic

<35V ( DC )

<100mA

1W

Contact Resistance

40Ω--500Ω (According the trace length and materials)

Insulation Resistance:

100 Megohms initial between adjacent traces

Loop Resistance

100 Ohms max (may be dependent on design)

Substrate Voltage

1500V DC

Mechanical Specifications

Contact Force

15-750gf

Contact Bounce

<10 milliseconds

Contact Closure

flat type 0.1-0.4mm

tactile type 0.4-1.0mm

Tail Folding

R>1,180

Durability:

flat type ≥ 1 million times

tactile type: ≥ 200K times

Environmental

Operating Temperature:

–40 to +70ºC typical (+85ºC construction available)

Storage Temperature:

–40 to +70ºC typical (+85ºC construction available)

Humidity:

+ 40ºC   90 % ~ 95%

Trace Pitch Capabilities

Lines:

0.51mm (.020") - PET

Lines:

0.100mm (.004") Polymide

Spaces:

0.51mm (.020") - PET

Spaces:

0.100mm (.004) Polymide
