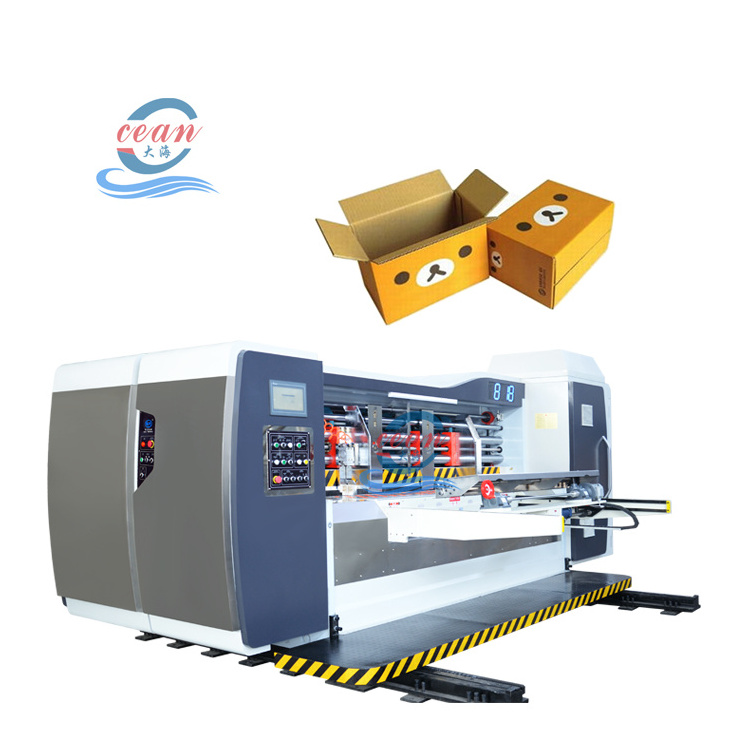

Automatic cardboard slotting machine corrugated carton making machinery

Automatic cardboard slotting machine corrugated carton making machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $16900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OCEAN

Weight:: 1000 KG

Dimension(L*W*H):: 2650*1447 mm

Product name:: Automatic cardboard slotting machine

Function:: High Effieciency

Usage:: Widely Used

Keyword:: Packing Box Machine

After Warranty Service:: Technical Support Online

Suitable for:: Cardboard Corrugated Paper

Packing material:: Corrugated Carton Box

Advantage:: High Stability

Feature:: High Level High Speed

Quick Details

Voltage:: 220 V

Power:: 25 KW

Place of Origin:: Hebei, China

Brand Name:: OCEAN

Weight:: 1000 KG

Dimension(L*W*H):: 2650*1447 mm

Product name:: Automatic cardboard slotting machine

Function:: High Effieciency

Usage:: Widely Used

Keyword:: Packing Box Machine

After Warranty Service:: Technical Support Online

Suitable for:: Cardboard Corrugated Paper

Packing material:: Corrugated Carton Box

Advantage:: High Stability

Feature:: High Level High Speed

Automatic cardboard slotting machine corrugated carton making machinery

Function and characteristic:

1.The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable .Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)

2.Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.

3.The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

4.The engine drive gear is adopted 20CrMnTi alloy steel, carburizing,quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision.

5.Machine transmission parts (shaft, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance. It is suitable for long-term high speed with high torque.

The Machine technique parameter:

Model	2200
Max machine speed	200 pieces/min
Max feeding size (L * W)	2350mmX900mm
Width of printing roller	2200mm
Min feeding size (L * W)	450mmX230mm
Min slotting interval	175mmX50mmX175mmX50mm
Min height of box (H)	100mm

Feeding unit:

Leading edge paper feeding adopt Vacuum adsorption,frequency conversion control air volume,increase paperboard conveying stability and accuracy.Double-row paper feed roller to improve the accuracy of paper feeding.

Slotting unit:

Slotted cutter wheel form:double blade single shaft.Pressure wheel,blade holder traverse move,phase adjustment,reset,etc.All adopt computer control(automatic or manual)electric control,change orders qulickly
