Quick Details
-
Brand Name:
-
LENO
-
Model Number:
-
LNP-1001
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1/2HP-22HP
-
Outlet Size:
-
25mm-133mm
-
Power:
-
0.55KW-22KW
-
Product name:
-
sanitary stainless steel rotary lobe pump
-
Material:
-
SS304/316L
-
Certificate:
-
CE
-
Seal:
-
EPDM/PTFE
-
Flow rate:
-
0-200T
-
Frequency:
-
50 /60 Hz
-
Speed:
-
0-1000RPM
-
Type:
-
Rotor pump
-
Certification:
-
ce
Quick Details
-
Application:
-
Biofuel Industry, Drinking water treatment, Industrial Utilities, wastewater treatment
-
Pressure:
-
8Bar
-
Voltage:
-
220V-480V, 220V/380V/440V
-
Brand Name:
-
LENO
-
Model Number:
-
LNP-1001
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
1/2HP-22HP
-
Outlet Size:
-
25mm-133mm
-
Power:
-
0.55KW-22KW
-
Product name:
-
sanitary stainless steel rotary lobe pump
-
Material:
-
SS304/316L
-
Certificate:
-
CE
-
Seal:
-
EPDM/PTFE
-
Flow rate:
-
0-200T
-
Frequency:
-
50 /60 Hz
-
Speed:
-
0-1000RPM
-
Type:
-
Rotor pump
-
Certification:
-
ce
Lobe Pump
Products Description
|
material
|
SS304 or SS316L
|
|
|
||
|
Capacity
|
0-100T (Customized)
|
|
|
||
|
Pressure
|
0-8bar
|
|
|
||
|
Viscosity
|
1-1000000pas
|
|
|
||
|
rotors type
|
butterfly rotors/Trefoil rotor
|
|
|
||
|
temperature
|
0-200 celsius degree
|
|
|
||
|
relief valve
|
NO
|
|
0-3bar
|
||
|
mechnical seal type
|
Sinlge mechanical seal
|
|
Double flushed mechanical seal
|
||
|
connection type
|
Clamp
|
Union
|
Flange
|
||
|
Inlet outlet direction
|
Left and right or Up and down
|
|
|
||
|
Jacket
|
No
|
|
hotwater
|
||
|
motor type
|
Normal
|
Planetary
|
inverter
|
||
|
Speed
|
0-1000RPM
|
|
|
||
Operation Principle
Rotor pump is also named rotary lobe pump, three-lobe pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a, only housing I is filled with medium. when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transpor-ted continuously.
Rotor pump is also named rotary lobe pump, three-lobe pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a, only housing I is filled with medium. when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transpor-ted continuously.
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
Product Paramenters
|
Technical Parameters
|
|
|
|
|
||||
|
Model
|
Capacity/Per centum rotate (L)
|
Speed(RPM)
|
Flow(L/H)
|
Power(KW)
|
||||
|
LNP-3R
|
3L
|
100-500
|
300-800
|
0.55
|
||||
|
LNP-6R
|
6L
|
100-500
|
650-1600
|
0.75
|
||||
|
LNP-8R
|
8L
|
100-500
|
850-2160
|
1.5
|
||||
|
LNP-12R
|
12L
|
100-500
|
1300-3200
|
2.2
|
||||
|
LNP-20R
|
20L
|
100-500
|
2100-5400
|
3
|
||||
|
LNP-30R
|
30L
|
100-500
|
3200-6400
|
4
|
||||
|
LNP-36R
|
36L
|
100-500
|
3800-7600
|
4
|
||||
|
LNP-52R
|
52L
|
100-500
|
5600-11000
|
5.5
|
||||
|
LNP-66R
|
66L
|
100-500
|
7100-14000
|
7.5
|
||||
|
LNP-78R
|
78L
|
100-500
|
9000-18000
|
7.5
|
||||
|
LNP-100R
|
100L
|
100-500
|
11000-22000
|
11
|
||||
|
LNP-135R
|
135L
|
100-500
|
15000-30000
|
15
|
||||
|
LNP-160R
|
160L
|
100-500
|
17000-34000
|
18.5
|
||||
|
LNP-200R
|
200L
|
100-500
|
21600-43000
|
22
|
||||
|
We can customize the equipment according to customer requirements.
|
|
|
|
|
||||

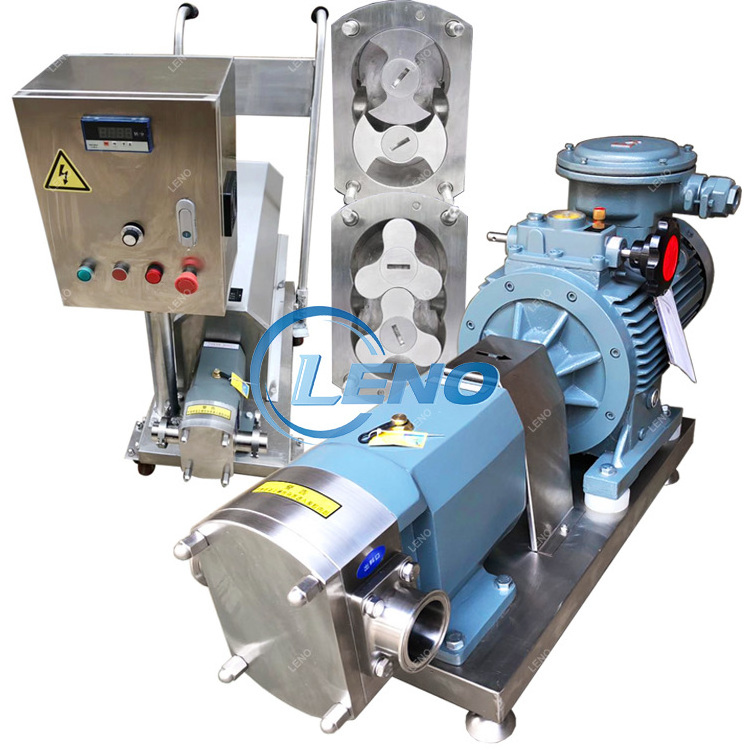

Product Image
