Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
SP Series Waterproof Connector
-
Pin No.:
-
2 / 3 / 4 / 5 / 6 / 7 / 9 / 10 /12 / 14 / 19 / 24 / 26 Pin
-
Contact:
-
Brass with Gold Plated
-
Orientation:
-
Straight / Right Angle
-
Insulator:
-
PPS
-
Mating cycle:
-
≥500times
-
Shell Material:
-
Nylon PA66
-
Temperature Range:
-
-40°C ~ +85°C
-
Termination Style:
-
Screw-joint / Solder Type / Crimp
-
IP Rating:
-
IP68
Quick Details
-
Type:
-
Circular Connector
-
Application:
-
Aviation / Communication / Instrumentation / Engineering Machinery
-
Gender:
-
Male / Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
SP Series Waterproof Connector
-
Pin No.:
-
2 / 3 / 4 / 5 / 6 / 7 / 9 / 10 /12 / 14 / 19 / 24 / 26 Pin
-
Contact:
-
Brass with Gold Plated
-
Orientation:
-
Straight / Right Angle
-
Insulator:
-
PPS
-
Mating cycle:
-
≥500times
-
Shell Material:
-
Nylon PA66
-
Temperature Range:
-
-40°C ~ +85°C
-
Termination Style:
-
Screw-joint / Solder Type / Crimp
-
IP Rating:
-
IP68

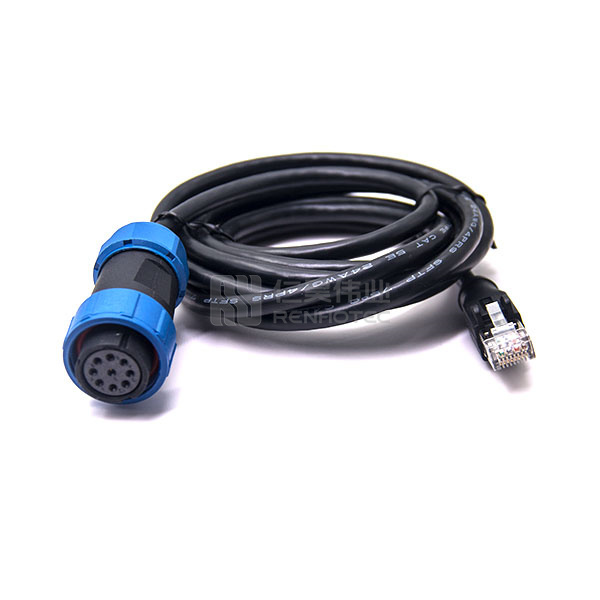

IP68 M12 Waterproof Power Connector SP13 Cable Weipu Flange 7 Pin
1. SP Series of threaded IP68 Connectors are perfect for your application.This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments.
2. When choosing a female connector, this version should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.
3.
With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All models are highly reliable and excellent quality.
| IP Rating | IP68 |
| Coupling | Threaded |
| No.of Contact |
SP11: 2-5 ; SP13: 2-7 SP17: 2-9 ; SP21: 2-14 SP29: 2-26 |
Material and Spec
| Coupling | Screw-joint / Solder Type / Crimp |
| Shell Material | PC / NylonPA66 / fire resistance: V-0 |
| Insert Material | PPS / MAX Temperature 260℃ |
| Contact Material | Brass with Gold Plating |
| Termination |
Solder: SPl3 , SPl7 , SP21 , SP29 Crimp: SPl7, SP21 , SP29 Screw: SP21, SP29 (Ø2.5 , Ø 3 , Ø 3.5mm contact) |
| Cable outer diameter range |
SP11: 4 - 6.5 MM SP13: 4 - 6.5 MM ; 5 - 8 MM SP17: 6 - 10 MM SP21: 4.5 - 7 MM ; 7 - 12 MM SP29 : 13 - 16 MM |
| IP Rating | IP68 |
| Mating Cycle | ≥500times |
| Temperature Range | -40~+85 ℃ |
| I nsulation R esistance | 2000 MΩ |
SP13
SP21
