Application
Overhead lines, sometimes referred to as aerial conductors, are often specified where there are significant distances to cover and where these cables are best positioned far out of reach. The distances to cover, the environmental conditions it will face, and the location are all factors in specifying the appropriate cable. The main classifications of bare conductor are AAC (All aluminum conductor), AAAC (All aluminum Alloy Conductor) or ACSR (aluminum conductor steel reinforced). AAC is most commonly found in urban areas with frequent supports and short spans. It is also used in coastal regions where salt in the air can cause corrosion - the all aluminum wire providing corrosion resistance - and specified for use in the railway industry for OHL electrification. AAAC tend to be specified where greater mechanical resistance is required and where there is a reduced sag characteristic. The ACSR, with its steel reinforcement provides additional strength and where the spans run for larger distances, such as across rivers. The advantages of AAC, AAAC and ACSR come in their lightweight properties. These overhead lines have no specified voltage rating - it will depend on the type of installation - although the higher corona limit of ACSR makes it beneficial when used with high voltage and extra-high voltage transmission. The overhead line wires are manufactured in accordance with various national standards and can be sized appropriately - including GB/T1179 ASTM B231, ASTM B399, IEC 61089, DIN 48201, BS 215, BS 3242, BS EN 50182 and Spanish standard UNE 21.018. etc.
Standards
GB/T1179, IEC61089, ASTM B231, ASTM B399, BS215-1, BS3242, DIN48201, BS EN 50182 etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinfeng
-
Model Number:
-
ACSR mango
-
Application:
-
Overhead used
-
Product name:
-
conductor wire
-
Factory:
-
Xinfeng Factory delivery
-
Rated Voltage:
-
6KV-35KV 110KV-220KV
-
Size:
-
1-1400mm2
-
Temperature range:
-
70℃, 90℃, 120℃
-
Brand:
-
Xinfeng
-
Standard:
-
as your require
-
Cores:
-
1 cores
-
Stock:
-
Please contact us
-
Material:
-
Aluminum
Quick Details
-
Conductor Material:
-
Aluminum
-
Insulation Material:
-
None
-
Number of Conductors:
-
1 core
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinfeng
-
Model Number:
-
ACSR mango
-
Application:
-
Overhead used
-
Product name:
-
conductor wire
-
Factory:
-
Xinfeng Factory delivery
-
Rated Voltage:
-
6KV-35KV 110KV-220KV
-
Size:
-
1-1400mm2
-
Temperature range:
-
70℃, 90℃, 120℃
-
Brand:
-
Xinfeng
-
Standard:
-
as your require
-
Cores:
-
1 cores
-
Stock:
-
Please contact us
-
Material:
-
Aluminum
Products Description

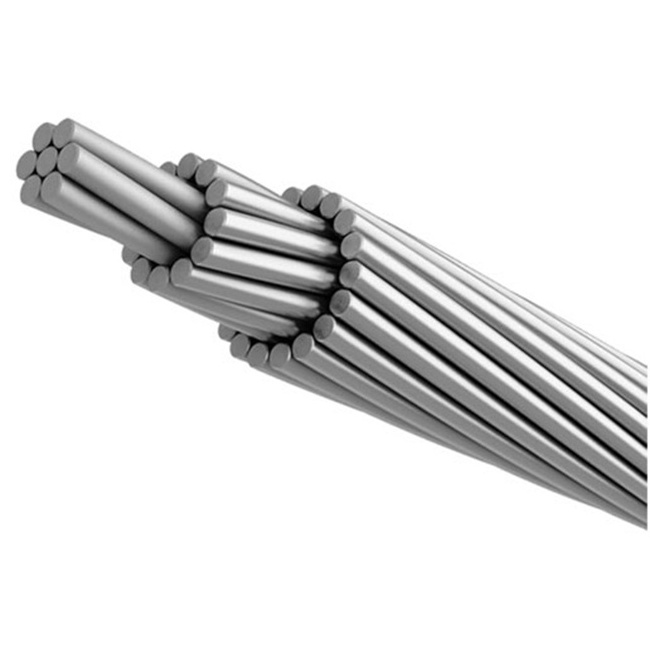

Bare Conductor
|
Type
|
Description
|
|
AAC
|
All Aluminum Conductor
|
|
ACSR
|
Aluminum Conductor Steel Reinforced
|
|
AAAC
|
All aluminum Alloy Conductor
|
|
ACAR
|
Aluminum Conductor Alloy Reinforced
|
|
AACSR
|
All Aluminum Alloy Conductor Steel Reinforced
|
|
ACSR / AW
|
Aluminum Conductor Aluminum Clad Steel Reinforced
|
|
TACSR
|
Thermal Resistant Aluminum-alloy Conductor Steel Reinforced
|
|
ACSS
|
Aluminum Conductor Steel Supported
|
|
ACSS/AW
|
Aluminum Conductor. Aluminum-Clad Steel Supported
|
|
ACSS/TS
|
Aluminum Conductor, Steel Supported. Trapezoidal Shaped
|
|
ACS
|
Aluminum Clad Steel
|
|
CCS
|
Copper Clad Steel
|
|
GSW
|
Galvanized Steel Wire
|
|
BCC
|
Bare copper stranded conductor (Hard Drawn)
|
|
Greased conductor
|
Anti-corrosive stranded conductor
|
