Quick Details
-
Brand Name:
-
YATAI/AISET
-
Model Number:
-
XMT-3000
-
Product name:
-
digital controller temperature
-
Color:
-
Black
-
Size:
-
72*72; 96*96; 96*48; 48*48; 80*160
-
Input signal:
-
Thermocouple:K, E, J; Resistance thermometer sensor: Pt100, Cu50
-
Control mode:
-
On-off, time proportional, auto-tuning PID
-
Power supply:
-
85~264VAC, 50/60Hz
-
Output:
-
RELAY, SSR DRIVE, 0-10mA, 4-20mA
-
Display:
-
Double line Display
-
Style:
-
Luxury
-
Elektrisches Detail:
-
Hersteller Standard
Quick Details
-
Warranty:
-
3 years
-
Theory:
-
Other
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YATAI/AISET
-
Model Number:
-
XMT-3000
-
Product name:
-
digital controller temperature
-
Color:
-
Black
-
Size:
-
72*72; 96*96; 96*48; 48*48; 80*160
-
Input signal:
-
Thermocouple:K, E, J; Resistance thermometer sensor: Pt100, Cu50
-
Control mode:
-
On-off, time proportional, auto-tuning PID
-
Power supply:
-
85~264VAC, 50/60Hz
-
Output:
-
RELAY, SSR DRIVE, 0-10mA, 4-20mA
-
Display:
-
Double line Display
-
Style:
-
Luxury
-
Elektrisches Detail:
-
Hersteller Standard
Products Description
|
Input signal
|
Thermocouple:K,E,J
Thermal resistance:Pt100,Cu50 |
|
Measurement error
|
≤+0.5% F.S±1dig
|
|
Control type
|
Bit type, time proportion, self-tuning PID
|
|
Range of the P.I.D parameters for user's selecting
|
Proportional range P=0-300
Integration time I=0-999s
Differential time D=0-999s
|
|
Data retention time
|
10 Years
|
|
control output
|
Contact type: 3A/ 250VAC (Resistive load) Contact lifez100000 time Level type (drive SSR orcontrol logic circuit)12VDC/30mA
|
|
Alarm output(The maximun number of channels is two)
|
Contact capacity 3A/250VAC (for resistive load)
|
|
Bit control switching difference selection range
|
Ar=0^ 100%(A type of control) Ar=0~100C
|
|
Power consumption
|
≤4VA
|
|
power supply
|
85-264VAC, 50/60Hz;
|
|
Anti-interference ability
|
≥ 3class (IEC-61000-4)
|
|
Usage environment
|
Temperature 0-50 ° C, relative humidity ≤ 85%, no corrosion, no conductive dust
|
General Description

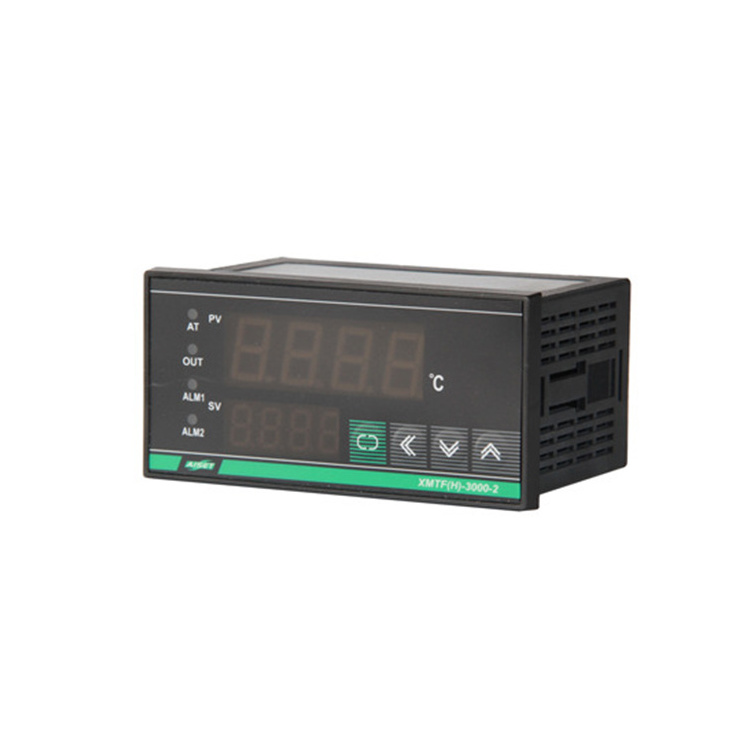

XMT-3000 series intelligent digital display controller is an intelligent digital display controller with auto-tuning functions,
which developed by oversea latest technology. The series controller single chip as the core, adopts SMT surface paste mounting, switching power supply, PID parameter-adaptive fuzzy control algorithm, Sensor nonlinear high precision transform, electromagnetic compatibility design, system self-checking, and etc advanced technology. Not only technical features but also manufacturer process are comparable with international new-fashioned controller, it completely displace imported brand-new temperature controller.
which developed by oversea latest technology. The series controller single chip as the core, adopts SMT surface paste mounting, switching power supply, PID parameter-adaptive fuzzy control algorithm, Sensor nonlinear high precision transform, electromagnetic compatibility design, system self-checking, and etc advanced technology. Not only technical features but also manufacturer process are comparable with international new-fashioned controller, it completely displace imported brand-new temperature controller.
Features
1. The insert depth is 70mm and the size of the panel frame meets the international criterion of IEC
2. Adopting the method of welding the terminals circuit board immediately, so that the instrument wiring is reliable
3. Adopting SMT technique, switch power supply, PID parameter-adaptive fuzzy control algorithm, integrated electromagnetic compatibility design with the combination of hardware and software, system self-checking, self-diagnosis, and others advancedtechnology
2. Adopting the method of welding the terminals circuit board immediately, so that the instrument wiring is reliable
3. Adopting SMT technique, switch power supply, PID parameter-adaptive fuzzy control algorithm, integrated electromagnetic compatibility design with the combination of hardware and software, system self-checking, self-diagnosis, and others advancedtechnology
