Quick Details
-
Brand Name:
-
YJ
-
Certification:
-
CE, ISO9001
Quick Details
-
Port Size:
-
1/2" to 4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CE1F
-
Brand Name:
-
YJ
-
Certification:
-
CE, ISO9001

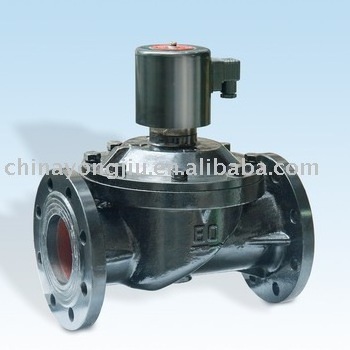

The solenoid valve has main technical specifications as below:
|
Model |
CE1S |
CE1F |
|||||||||
|
Normal diameter (mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
Medium Pressure (MPa) |
0-0.8 |
0-0.4 |
0-0.16 |
||||||||
|
Medium temperature () |
-10-100 |
||||||||||
|
Suitable medium |
Water, natural gas, air, oil (below 50cSt) |
||||||||||
|
Power voltage (V) |
AC220 +10% -15% DC24V |
||||||||||
|
Explosion marking |
ExmIIBT3/T 4 |
||||||||||
|
Leakage volume (ml/min) |
0 |
||||||||||
|
Insulating class |
C |
||||||||||
|
Protection rate |
IP54 |
||||||||||
