Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
original
-
Supplier Type:
-
RM520N-GL
-
part number:
-
RM520N-GL
-
Brand:
-
original
-
Modes:
-
NSA and SA
-
Speed:
-
Max. downlink 2.4Gbps / 900Mbps uplink
-
Supply Voltage:
-
support
-
Supply voltage range:
-
3.1V~4.4V, 3.7V Type
-
Operation temperature:
-
-40℃ to +85℃
-
Size:
-
52.0mm*30.0mm*2.3mm
-
Package:
-
M.2
-
Interface:
-
USB 3.1 / PCIe 3.0 high speed interface
Quick Details
-
Chipset:
-
RM520N-GL
-
Application:
-
wifi router
-
Model Number:
-
RM520N-GL
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
original
-
Supplier Type:
-
RM520N-GL
-
part number:
-
RM520N-GL
-
Brand:
-
original
-
Modes:
-
NSA and SA
-
Speed:
-
Max. downlink 2.4Gbps / 900Mbps uplink
-
Supply Voltage:
-
support
-
Supply voltage range:
-
3.1V~4.4V, 3.7V Type
-
Operation temperature:
-
-40℃ to +85℃
-
Size:
-
52.0mm*30.0mm*2.3mm
-
Package:
-
M.2
-
Interface:
-
USB 3.1 / PCIe 3.0 high speed interface
Product Introduction

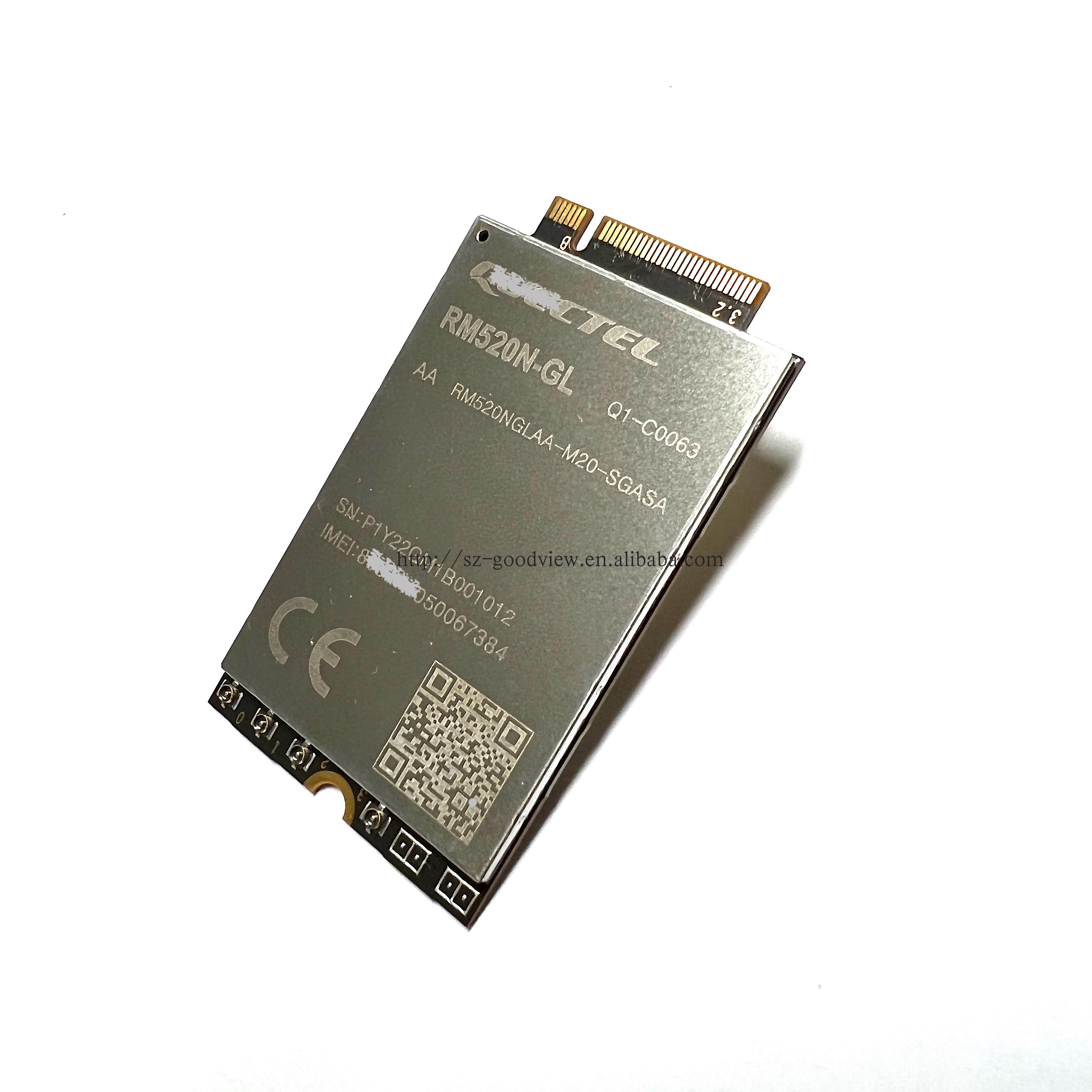

RM520N RM520N-GL RM530 5G 4G 3G LTE-A NR Sub-6GHz global iot module
RM520N is a series of 5G modules optimized specially for IoT/eMBB applications. Adopting the 3GPP Release 16 technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM520N series are compatible with Quectel 5G module RM50xQ series, LTE-A Cat 6 module EM06, Cat 12 modules EM12, EM12xR, EM120K series, and Cat 16 module EM160R-GL, which facilitates customers’ migration from LTE-A to 5G.
RM520N series are industrial-grade for industrial and commercial applications only.
The Global version of RM520N series nearly covers all the mainstream carriers worldwide. The module supports GNSS location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of eMBB and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage
5G/4G/3G multi-mode module with M.2 form factor, optimized for IoT and eMBB applications
Worldwide 5G and LTE-A coverage
Both NSA and SA modes supported Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: DFOTA* and VoLTE (optional)
