Quick Details
-
Warranty:
-
3 Years, 3 Years
-
Type:
-
Hand Wave Sensor Switch
-
Sensing Range:
-
≤5cm is recommended
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Hand Wave Sensor Switch
-
Model:
-
7003.02
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE RoHS ISO9001
-
Customization:
-
Yes
-
Package:
-
Individual with anti-static bag
-
Features:
-
Touch sensitive
-
Theory:
-
Optical sensor
-
Certification:
-
CE RoHS ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LGDD
-
Model Number:
-
7003.02
-
Warranty:
-
3 Years, 3 Years
-
Type:
-
Hand Wave Sensor Switch
-
Sensing Range:
-
≤5cm is recommended
-
Brand:
-
LGDD/OEM/ODM
-
Product name:
-
Hand Wave Sensor Switch
-
Model:
-
7003.02
-
Material:
-
PCB+Plastic Housing
-
Certificate:
-
CE RoHS ISO9001
-
Customization:
-
Yes
-
Package:
-
Individual with anti-static bag
-
Features:
-
Touch sensitive
-
Theory:
-
Optical sensor
-
Certification:
-
CE RoHS ISO9001
Products Description
Description：

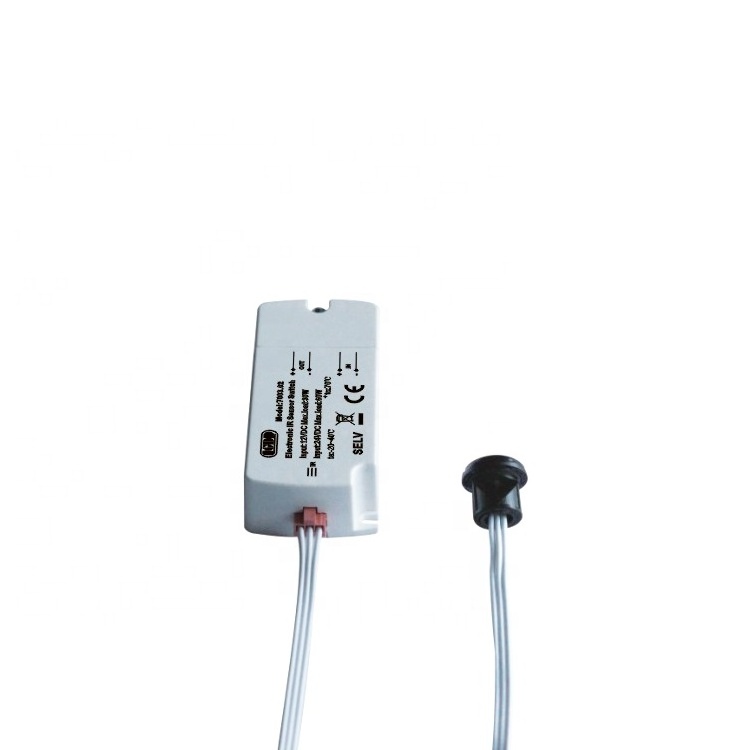

This IR Sensor is designed to turn on or off the light more freely by hand sweep. It is workable with or without obstacle by choice from two different detectors. With 05100.01, the Sensor can be installed behind nonmetallic transparent material, mirrors, glass, etc. With 05100.02, it is ideally to be applied by the side of mirror or exposed outside the cabinet.
Key Feature：
1.Infra-Red hand sweep sensor
2. Switch on and off the light freely by hand wave
3. Application can be used across by glass (With 05100.01)
4. Detection Range: Less than 5cm is recommended
5. 12V/24V Safety low voltage
Performance Parameters：
|
Model
|
Input Voltage
|
Output Voltage
|
Output Current
|
Rated Power
|
Standby Power
|
Dimension
|
|
7003.02
|
100-240V
|
100-240V
|
Max. 1.0A
|
100W (AC 100V)
|
≤0.5W
|
83*35.5*18.5
|
|
|
|
|
|
240W (AC 240V)
|
|
|
Size:83*35.5*18.5mm,can be installed in big cabinets
