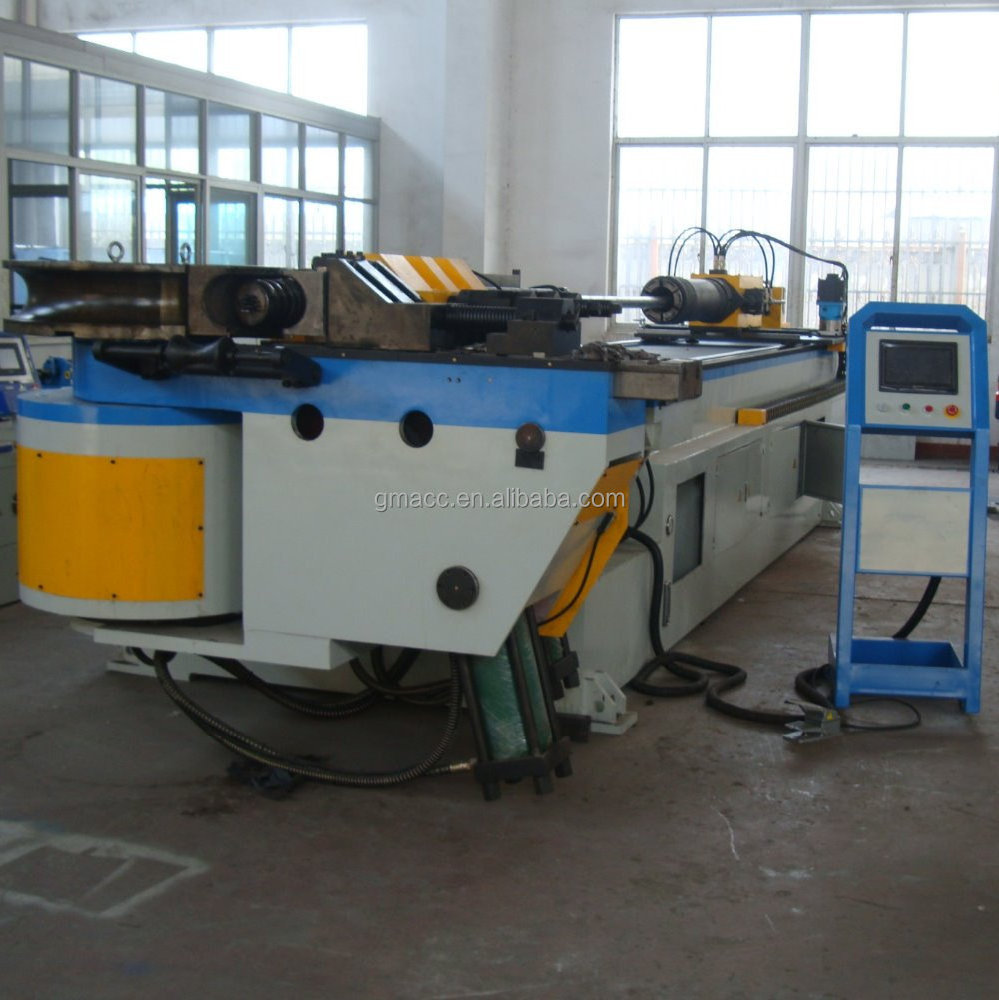

GM-SB-38CNC Full-Auto Numerical Control
Single-Head Bending Machine
Model: SB38×2A×1S
- Ø Machine Characteristics
SB -SB-38 CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
- Ø Main Technical Parameter
|
Name |
Unit |
Parameter |
|
Max. Bending Capacity |
mm |
38*2 |
|
Bending Radius Range |
mm |
20-200 |
|
Max. Bending Angle |
° |
190° |
|
Bending Speed |
°/sec |
60 |
|
Turning Speed |
°/sec |
200 |
|
Feeding Speed |
mm/sec |
1000 |
|
Bending Precision |
° |
±0.10 |
|
Turning Precision |
° |
±0.10 |
|
Feeding Precision |
mm |
±0.10 |
|
Turning Servomotor Power |
kW |
0.4 |
|
Feeding Servomotor Power |
kW |
1 |
|
Though Effective Distance |
mm |
2 2 00 |
|
System Motor Power |
kW |
4 |
|
Max. Pressure |
Mpa |
1 6 |
|
Oil Pump Delivery Volume |
L |
1 4 |
|
L*W*H (Packaging Dimension) |
mm |
3500*700*1300 |
|
Weight |
T |
2.0 |
- Ø
- Ø Configuration of Hydraulic and Electronic Control System
|
Name |
Manufacturer |
|
Hydraulic Motor |
Germany Siemens ( Imported ) or Wuxi Taihu |
|
Hydraulic Pump |
Taiwan Hydromax ( Imported ) |
|
Hydraulic Valve |
Japan Yuken ( Imported ) |
|
Oil way Board |
Taiwan Shanghong ( Imported ) |
|
Cylinder |
Shanghai Jingsheng |
|
Oil tube |
Suzhou Kejia |
|
Touch screen |
Taiwan W einview ( Imported ) |
|
PLC |
Japan Mitsubishi ( Imported ) |
|
Servo Motor |
Japan Mitsubishi ( Imported ) |
|
Angle controller |
Japan Nemicon ( Imported ) |
|
Switch power |
Wenzhou Changjiang |
|
Contactor |
German SCHNEIDER ( Imported ) |
|
Other Electric Parts |
German SCHNEIDER,Omron , Taiwan SHILIN ( Imported ) |
