Model
|

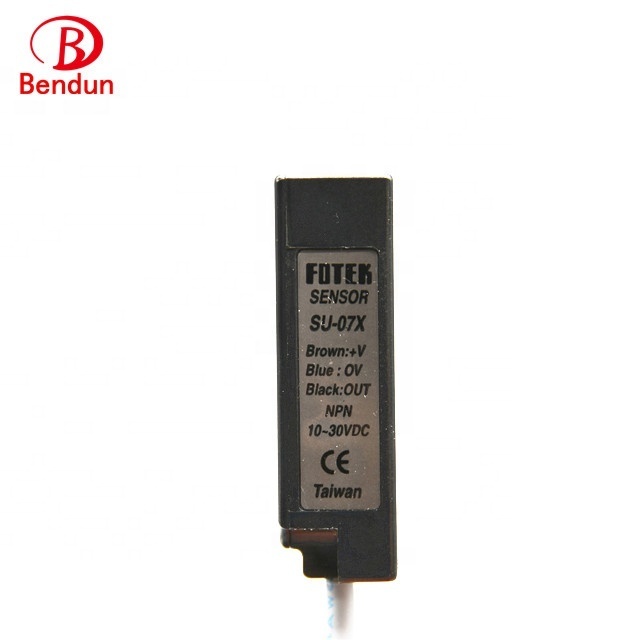

SU-07X
|
SU-07XP
|
|
Output method
|
NPN
|
PNP
|
|
Operating voltage
|
10-30 VDC;Ripple < 20% of peak to peak
|
|
Current consumption
|
30 mA max.
|
|
Output current
|
150 mA max.
|
|
Protection circuit
|
Short Circuit & Polarity Reversed Protection
|
|
Emitter
|
Infrared Led
|
|
Min.sensible object
|
1.0 ∮
|
|
Response frequence
|
5 K Hz
|
|
Illumination
|
Lamplight <5000 LUX ; Sunlight < 10,000 LUX
|
|
Connection method
|
4 φ/ 3 ￠ X 2m
|
|
Housing material
|
Intensive ABS
|
|
Operating temp/hum
|
-20℃~+ 70℃ ; 35%~85% RH
|
|
Protection
|
IP-65
|
