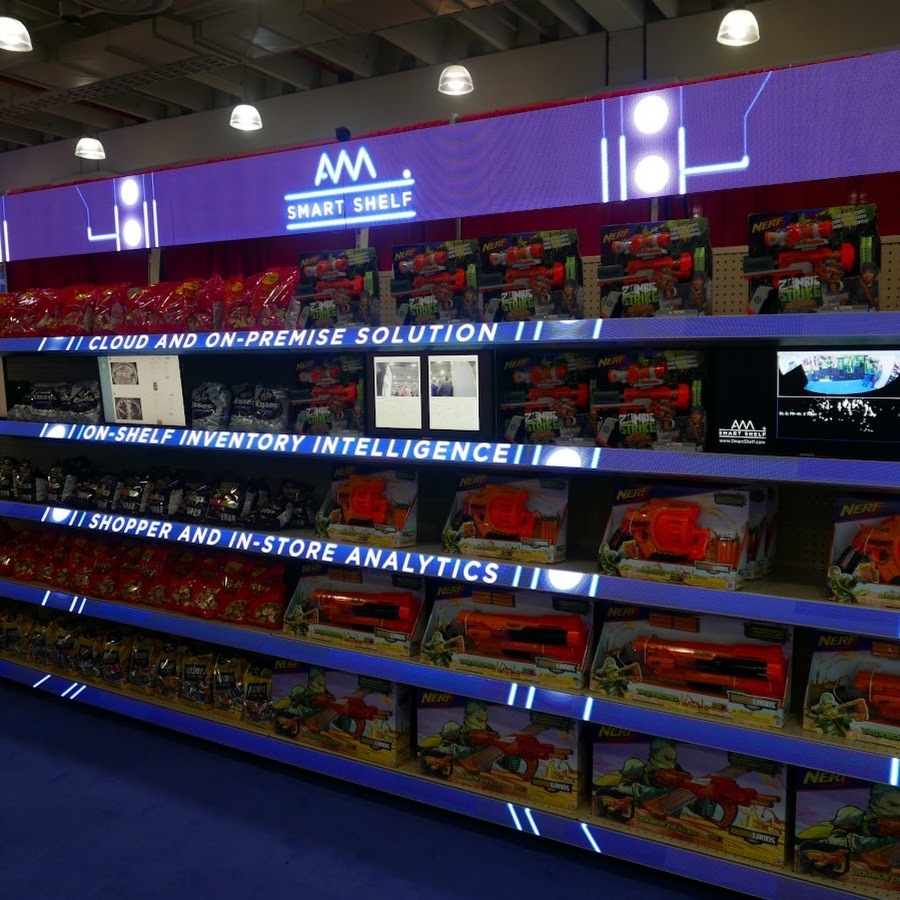

iDisplay ishelf is designed for indoor applications, such as supermarkets, store shelves, shopping malls, entertainment venues, showcases, bars, art exhibitions, exhibitions, booths, etc.
It is a better way to present your brand and product by giving visitors a very splendid ads attractions.
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full Color
-
Panel Size:
-
300*60MM/900*60MM/1200*60MM, 300*60MM/900*60MM/1200*60MM
-
Place of Origin:
-
shenzhen
-
Model Number:
-
ishelf
-
Brightness:
-
800-1000CD/m2, 800-1000CD/m2, 600-800 cd/m²
-
pixel density:
-
284,444 dot/m², 444,444dot/ m², 640,000dot/ m², 284,444 dot/m², 444,444dot/ m², 640,000dot/ m²
-
Lifespan (hours):
-
100000 Hours, 100000 Hours
-
IP Rating:
-
IP54/IP43, IP54/IP43
-
HS Code:
-
8528591090
-
Resolution:
-
4096*2160
-
View Angle（H/V）:
-
160°/160°, 160°/160°
-
Product name:
-
ishelf
-
Size:
-
300/600/900x60mm
-
Display Scale:
-
16.7M
-
Pixel Density:
-
284,444dot/m²
-
Scanning Mode:
-
32s
-
IP Rating ( front/back):
-
IP54/IP43
-
Gray Scale:
-
14bit
-
Operation Power:
-
AC100~240 50/60HZ
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
iDisplay
-
Color:
-
Full Color
-
Panel Size:
-
300*60MM/900*60MM/1200*60MM, 300*60MM/900*60MM/1200*60MM
-
Place of Origin:
-
shenzhen
-
Model Number:
-
ishelf
-
Brightness:
-
800-1000CD/m2, 800-1000CD/m2, 600-800 cd/m²
-
pixel density:
-
284,444 dot/m², 444,444dot/ m², 640,000dot/ m², 284,444 dot/m², 444,444dot/ m², 640,000dot/ m²
-
Lifespan (hours):
-
100000 Hours, 100000 Hours
-
IP Rating:
-
IP54/IP43, IP54/IP43
-
HS Code:
-
8528591090
-
Resolution:
-
4096*2160
-
View Angle（H/V）:
-
160°/160°, 160°/160°
-
Product name:
-
ishelf
-
Size:
-
300/600/900x60mm
-
Display Scale:
-
16.7M
-
Pixel Density:
-
284,444dot/m²
-
Scanning Mode:
-
32s
-
IP Rating ( front/back):
-
IP54/IP43
-
Gray Scale:
-
14bit
-
Operation Power:
-
AC100~240 50/60HZ
Product Paramenters
|
Product Name
|
ishelf
|
|
Pixel Pitch
|
1.875mm-GOB technology
|
|
LED Configuration
|
SMD1010
|
|
Pixel Density
|
284,444 dot/m²
|
|
Module size
|
300x60 mm
|
|
Module Resolution
|
160x32 dot
|
|
Display Size
|
300/600/900x60mm
|
|
Cabinet Size
|
W305/W605/W905xH65x24mmD
|
|
Cabinet Resolution
|
160x32/320x32/480x32dot
|
|
IP Rating ( front/back)
|
IP54/IP43
|
|
Scanning Mode
|
32s
|
|
Brightness
|
600-800 cd/m²
|
|
Viewing Angle
|
120°
|
|
View Distance
|
＞1.8m
|
|
Gray Scale
|
14bit
|
|
Display Scale
|
16.7M
|
|
Max.Power Consumption
|
550W/m²
|
|
Ave.Power Consumption
|
180W/m²
|
|
Refresh Frequency
|
≥1920HZ
|
|
Environmental
|
Indoor
|
|
Brightness Adjustment
|
0 - 100 levels adjustable
|
|
Operation Power
|
AC100~240 50/60HZ
|
Products Description
About ishelf
Supermarket
Store
Mall
Various Dimensions
Pixel pitch:
1.875mm/1.25mm/1.5mm
Module size: 300x60mm
Display size:
Module size: 300x60mm
Display size:
300x60mm, 900x60mm
,
1200x60mm
or customized size Aluminum profile.
Independent power supply.
Independent power supply.
2 Kinds of Group Control Way
Support independent control or group control.
Group control remotely via 4G, WiFi, or USB.
Gob Technology
Glue on board LED packing, is one of the recognized LED packing to tend. GOB can be waterproof、anti-collision、anti-static、dust-proof, which prevents LED damage and reduce maintenance costs.
Easy installation and Cascading
For installation
1. Enough buckles on each iShelf
2. Magnet as an option for installation
For power and data cascading
1.
RG45 cabling
2. Built-in receiving card
3. Power fees are separate, 1pcs 300w
