Quick Details
-
Brand Name:
-
HYCOM
-
Use:
-
FTTH
-
Warranty Time:
-
12 months
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Fiber Type:
-
Single Fiber Single Mode
-
Warranty:
-
1 Year
-
Power supply:
-
5V1A
-
Material:
-
Metal
-
Dimensions:
-
128mm*79mm*26mm
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Color:
-
Blue
Quick Details
-
Type:
-
FTTH Optical Receiver, Active
-
Model Number:
-
OR32B2
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HYCOM
-
Use:
-
FTTH
-
Warranty Time:
-
12 months
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
Fiber Type:
-
Single Fiber Single Mode
-
Warranty:
-
1 Year
-
Power supply:
-
5V1A
-
Material:
-
Metal
-
Dimensions:
-
128mm*79mm*26mm
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Color:
-
Blue

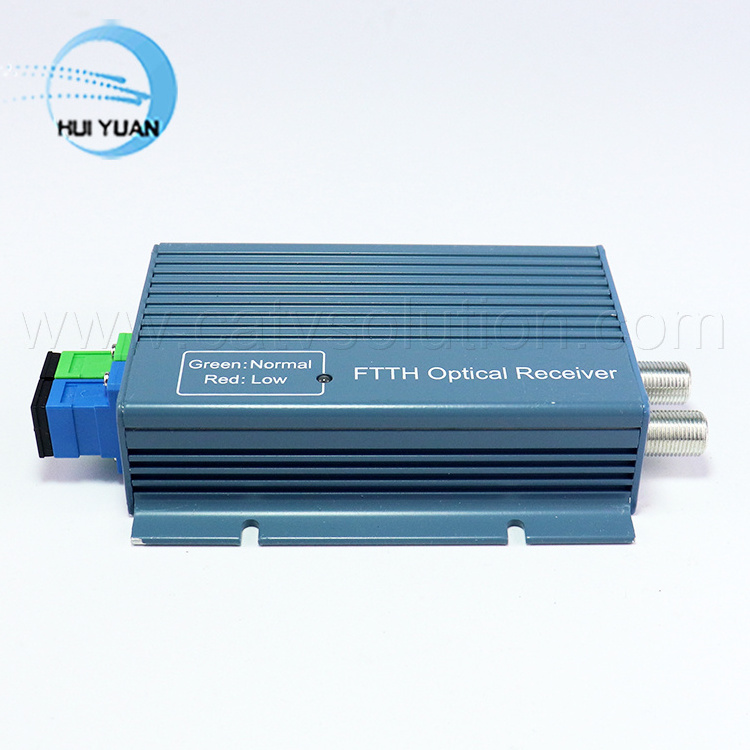

OR32B optical receiver is home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fibre
to the home) network fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photo detectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can increase WDM and achieve triple play.
High quality aluminum profile shell with good heat dissipation.
RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception at a minimum, and the -10dBm
reception of an analog signal at a minimum.
With light input AGC (AGC range can be customized according to user).
Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the power
supply. The overall power consumption is less than 1W, with a light detection circuit.
Multi-stage lightning protection devices (TVS transient suppression diodes), and lightning protection systems are tight to
ensure safe operation of the equipment.
Built-in WDM can realize single-fiber home (1490/1310/1550nm) tri-network convergence applications.
Built-in optical isolator, input to achieve 1490/1310nm isolation.
The output gain is manually adjustable (0~18dB) and the output level is >80dBuV.
SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
It can realize the power supply mode of output feed.
Can realize single or dual output
|
Input optical power
|
0dBm~-10dBm(Analog signal）
|
Carrier to Noise Ratio (Note)
|
≥51dB
|
|
||||
|
|
&0dBm~-18dBm(Digital signal）
|
AGC Control range
|
0dBm~-9dBm
|
|
||||
|
optical reflection loss
|
＞45 dB
|
CTB(note)
|
≥65dB
|
|
||||
|
Optical connector form
|
FC/APC or SC/APC or FC/PC or SC/PC
|
CSO(note)
|
≥62dB
|
|
||||
|
Frequency Range
|
45~1006MHz
|
Host voltage
|
DC5V
|
|
||||
|
In-band flatness
|
±1dB@45~1006MHz
|
Adapter voltage
|
AC90V ~145V&AC145V ~ 265V or custom
|
|
||||
|
RF output reflection
|
≥16dB@ 47~550MH ; ≥14dB@1006MHz
|
Infeed voltage
|
DC5V
|
|
||||
|
Gain adjustment range
|
0-18dB
|
Operating temperature
|
-20℃ ~+55℃
|
|
||||
|
Output level
|
（78~80）dBuV(AGC:@-9~+0dBm，Pin=0dBm)
|
power
|
<1W
|
|
||||
|
Output port number
|
1or 2
|
Product net size
|
129×79×26mm
|
|
||||
|
RF output impedance
|
75Ω
|
Product net weight
|
0.17kg
|
|
||||
|
Note: Test conditions: 59 PAL-D analog television channel signals at 550 MHz frequency range, in the range of 550 MHz to 862 MHz, under specified link loss conditions. The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0 dBm, measuring C/N, CTB, CSO. |
|
|
|
|
||||
Dimens ion
