Quick Details
-
Ejector Stroke(mm):
-
550 mm
-
Ejector Force(kN):
-
1600 kN
-
Theoretical Shot Volume(cm³):
-
2000 cm³
-
Injection Rate (g/s):
-
110 g/s
-
Injection Weight (g):
-
486 g
-
Screw diameter (mm):
-
55 mm
-
Weight (KG):
-
5.6
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
180 mm
-
Model Number:
-
BST-80
-
Brand Name:
-
U Tech
-
Power (kW):
-
18 kW
-
Key words:
-
Extrusion Blow Moulding
-
Raw material:
-
PP PE PVC ABS EVA
-
Bottle Volume:
-
0.1-30L
-
Extrusion Motor:
-
7.5kw
-
Screw drive power:
-
18.5KW
-
Color:
-
Customer Choice
-
Capacity:
-
100-200 Pcs
-
Working Stations:
-
Double
-
Spare parts:
-
support by free
-
Certification:
-
CE
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
480mm
-
Distance between Tie Bars(Height)(mm):
-
480mm
-
Plasticizing Capacity(g/s):
-
212
-
Ejector Stroke(mm):
-
550 mm
-
Ejector Force(kN):
-
1600 kN
-
Theoretical Shot Volume(cm³):
-
2000 cm³
-
Injection Rate (g/s):
-
110 g/s
-
Injection Weight (g):
-
486 g
-
Screw diameter (mm):
-
55 mm
-
Weight (KG):
-
5.6
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
180 mm
-
Model Number:
-
BST-80
-
Brand Name:
-
U Tech
-
Power (kW):
-
18 kW
-
Key words:
-
Extrusion Blow Moulding
-
Raw material:
-
PP PE PVC ABS EVA
-
Bottle Volume:
-
0.1-30L
-
Extrusion Motor:
-
7.5kw
-
Screw drive power:
-
18.5KW
-
Color:
-
Customer Choice
-
Capacity:
-
100-200 Pcs
-
Working Stations:
-
Double
-
Spare parts:
-
support by free
-
Certification:
-
CE
Product Intruduction

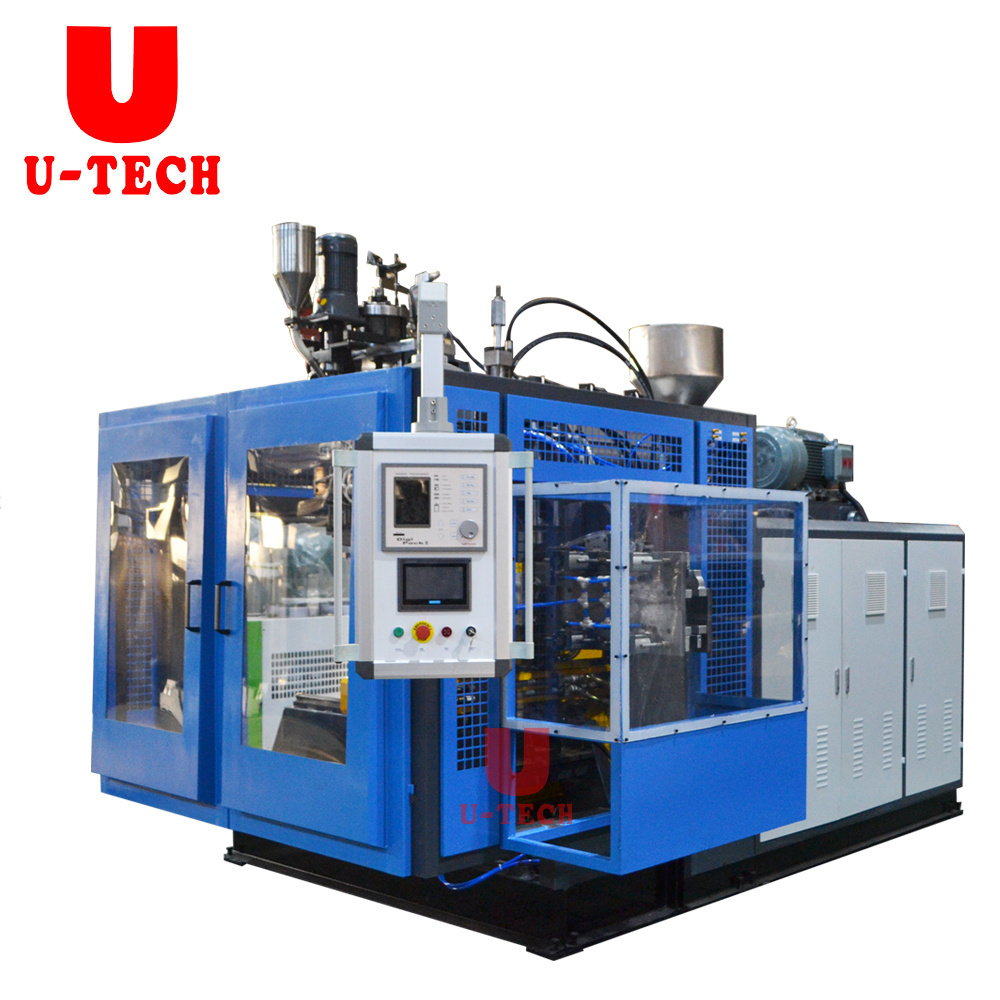

The BST-80 full automatic extrusion blow molding machine is specialized for the hdpe jerry can and drum volume.The machine with high efficient plasticizing screw and heating zones. The machine equips with LCD touch screen and Mitsubishi PLC system, very easy and high level operation. The blowing pin is designed to be at bottom with multi function.
Features:
1) Electrical control system: The machine works under the PLC control(made by the Mitsubishi Co. of Japan) via a man-and-machine interface(displayed in Chinese version or in English version).The machine is equipped with a modularized temperature controller and operated through a touch-type coloure screen.All the production data can be set up,modified,searched and monitored and the machine trouble diagnosis can be completed both on the touch-type screen.The electric elements work on the non-contact working principle,thus being durable in service life.
2) Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
3) Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.
4) Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.
5) Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.
6) Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.
2) Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
3) Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.
4) Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.
5) Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.
6) Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.
Machine Details
Product Paramenters
|
Model
|
Unit
|
BST-80
|
|
Max. Product Volume
|
(L)
|
30L
|
|
Dry cycle
|
(pc/h)
|
60
|
|
Screw Diameter
|
(mm)
|
80
|
|
Screw L/D ratio
|
(L/D)
|
25
|
|
Screw drive power
|
(KW)
|
37
|
|
Screw heating capacity
|
(KW)
|
18
|
|
No. of heating zone
|
(ZONE)
|
4~6
|
|
Max. Output of HDPE
|
(Kg/hr)
|
100-140
|
|
Oil pump drive power
|
(KW)
|
18.5(22)
|
|
Clamping force
|
(KN)
|
240
|
|
Platen distance
|
(mm)
|
270-820
|
|
Mold moving stroke
|
(mm)
|
390
|
|
Max. Size of Mold(W*H)
|
(mm)
|
600x750
|
|
Max. Die diameter
|
(mm)
|
250
|
|
Die heat capacity
|
(KW)
|
9.6
|
|
No. of heating zone
|
(ZONE)
|
4~6
|
|
Central distance of Double head
|
(mm)
|
/
|
|
MOOG Parison controller power
|
(KW)
|
4
|
|
Average Power Consumption
|
(KW)
|
40
|
|
Blowing pressure
|
(Mpa)
|
0.7
|
|
Air volume
|
(M3/MIN)
|
0.8
|
|
Cooling water pressure
|
(Mpa)
|
0.3~0.5
|
|
Water consumption
|
(L/MIN)
|
50
|
|
Size of machine ( L*W*H)
|
(m)
|
5.20*2.90*4.60
|
|
Weight of machine
|
(TON)
|
13.5
|
Preforms
Why Choose Us
Certificate
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
