Quick Details
-
Brand Name:
-
KOVI
-
Product name:
-
fabric pleating machine
-
Brand:
-
KOVI
-
Usage:
-
Pleating cloth
-
Voltage:
-
220v 50hz Single Phase
-
Power:
-
1.1kw
-
Model type:
-
KVZY217/KVZY-217D/KVZY-416/KVZY-516/KVZY-516D
-
Weight:
-
800kg
-
Dimension:
-
1900*1000*1300mm
-
Speed:
-
10-150beats/min
-
Key word:
-
curtain pleating machine
Quick Details
-
Weight (KG):
-
800
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KOVI
-
Product name:
-
fabric pleating machine
-
Brand:
-
KOVI
-
Usage:
-
Pleating cloth
-
Voltage:
-
220v 50hz Single Phase
-
Power:
-
1.1kw
-
Model type:
-
KVZY217/KVZY-217D/KVZY-416/KVZY-516/KVZY-516D
-
Weight:
-
800kg
-
Dimension:
-
1900*1000*1300mm
-
Speed:
-
10-150beats/min
-
Key word:
-
curtain pleating machine
Product Description
multi-functional pleating machine for fabric skirt pleat 217 fabric pleating machine computer control
Fabric pleating machine features:
1.
This machine can be used for pleated skirts, the pleating of clothes, suitable for the garment production industry.
2.
The machine adjustment is more convenient, the change pattern is more flexible, the function is more powerful, the maximum width of the pleat: 1700mm ,pleat speed: 20-150 times/min.
3.
It is simple to operate, save manpower, long service life, can play a variety of folds, is a very popular machine.
|
multi-functional pleating machine for fabric skirt pleat 217 fabric pleating machine computer control
|
|
|
|
|||
|
Product name
|
fabric pleating machine
|
|
|
|||
|
Brand
|
KOVI
|
|
|
|||
|
Model
|
ZY-217/217D
|
ZY-416
|
ZY-516/516D
|
|||
|
Working width
|
1700mm
|
1600mm
|
1600mm
|
|||
|
Speed
|
20-100beats/min
|
20-150beats/min
|
10-60beats/min
|
|||
|
Heating power
|
10kw
|
8kw
|
7kw
|
|||
|
Weight
|
1300kg
|
800kg
|
900kg
|
|||
|
Dimension
|
3200*1650*1750mm
|
1900*1000*1300mm
|
2400*1450*1550mm
|
|||
|
If you want to know more product information,you can CONTACT ME:+86 15093496498
|
|
|
|
|||
Detail display

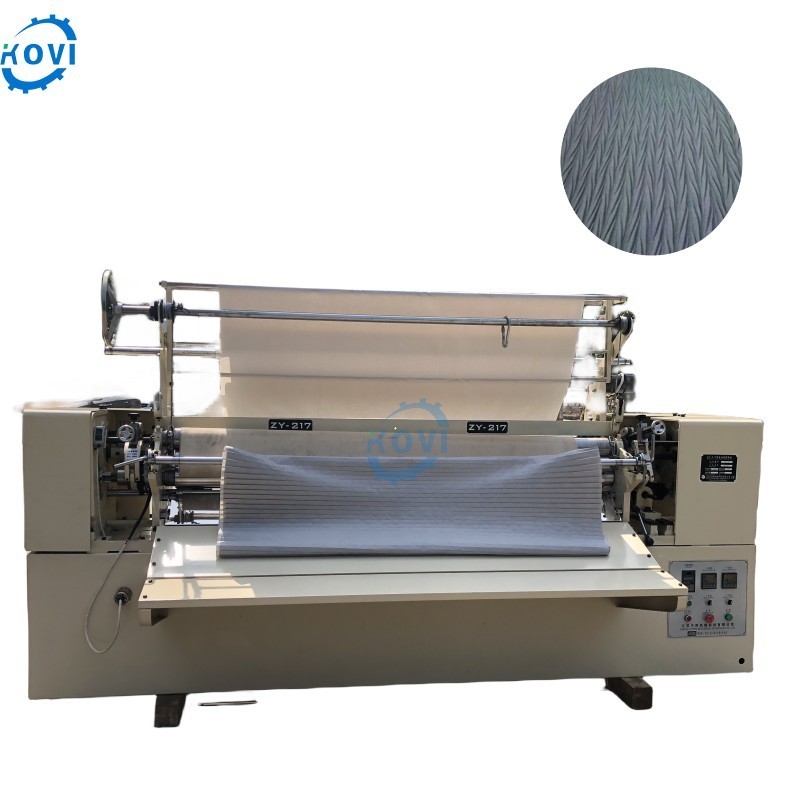

Mode type:KVZY-217/217D
This machine has a multi-functional pleating process, can make more than 20 folds, and the 217D with a computer control screen,can be adjusted by computer.
With infrared positioning function, it is more convenient to adjust the machine than the previous mechanical version, and the pattern change is more flexible and more powerful.
Model type:KVZY-416
This pleating machine is suitable for toothpick pleating type.
Model type:KVZY516/516D
The machine has a fan-shaped display table to spread out the fabric, and the 516D has a computer control screen that can be adjusted by the computer.
finished product effect display diagram
