Quick Details
-
Type:
-
Flared flange clamp
-
Application:
-
Construction machinery
-
Packing:
-
Pallets
-
Price Term:
-
FOB
-
MOQ:
-
500 Piece
-
Color:
-
galvanized
-
Material:
-
Carbon steel
-
Size:
-
Customized Size
-
Standard or Nonstandard:
-
Standad
Quick Details
-
Standard:
-
ISO, ASME, SAE J518
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Swintool
-
Type:
-
Flared flange clamp
-
Application:
-
Construction machinery
-
Packing:
-
Pallets
-
Price Term:
-
FOB
-
MOQ:
-
500 Piece
-
Color:
-
galvanized
-
Material:
-
Carbon steel
-
Size:
-
Customized Size
-
Standard or Nonstandard:
-
Standad
|
Product Name:
|
Flare Flange Clamp
|
|
Product Usage:
|
Widely used in industrial fields
|
|
Material:
|
Carbon Steel C45, Stainless Steel 304, 316, Or 316l
|
|
MOQ：
|
500PCS
|
|
Place of Origin
|
China
|
|
Province:
|
Zhejiang
|
|
Brand:
|
Swintool
|

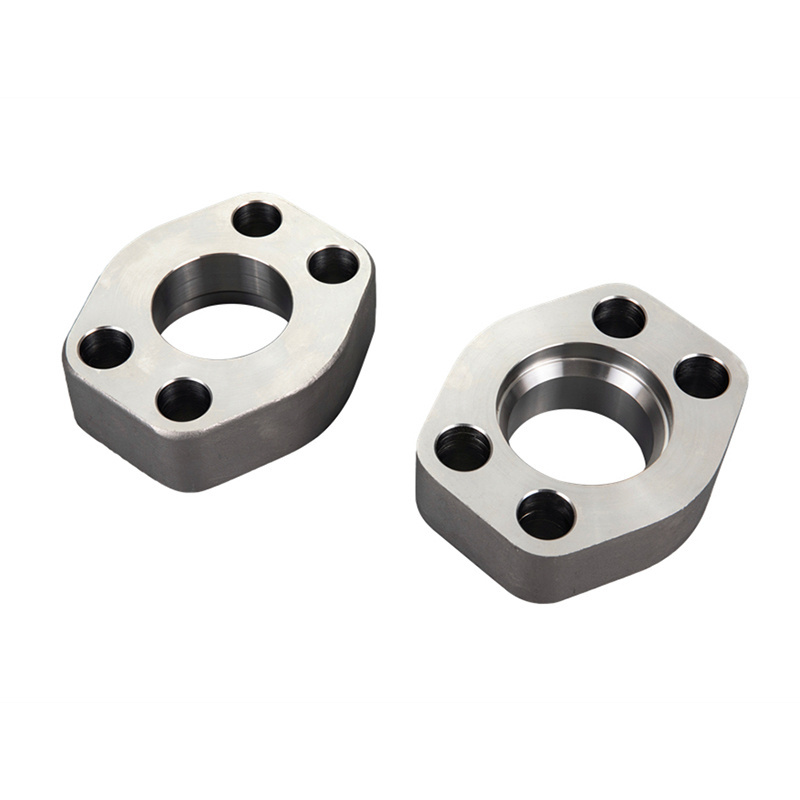

Flared flange clamp
All flare flange clamps of 4-bolt dimensions is the same to SAE J518 / ISO 6162 standards, the differences is connection way: Flare flange system is used for the deburred tube end is flared to 37°, An insert, soft sealed by an O-Ring, is located into each pipe end. By tightening the flanges together, a soft sealed, high pressure tube connection is made.
Material of Flare flange clamps and couplings:
Carbon steel C45; Stainless steel 304, 316 or 316L.
All carbon steel flare flange clamp connection system shall be plated or coated with a suitable material that passes a 72-h salt spray test in accordance with ASTM B117 (ISO 9227).
This flare flange connection is used in high and medium pressure applications, you will found in these industries such as shipbuilding and Offshore, Metals & Mining, Construction machinery. Flare flange system is also suitable for hydraulic, lubrication, hydro carbon, high pressure air, high pressure water cleaning lines etc piping systems.
The difference between SAE flare flange and Split flange clamp system: SAE flange clamps and split flange halves is used for tightening the flanged head with different types of tube connectors and hose fittings, or flange plugs connection; flare flange clamps is used for rigid seamless steel tubing without welding. The same sealing connection is O-ring flat face connection; the same SAE flange port dimensions; the same ISO 6162 and SAE J518 standards.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or againt the B/L copy.
If you have another question, pls feel free to contact us.
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q.I cannot find the products I want on your site. Are you able to help me to locate it?
A.We are not able to put every product we can do on this site. Telling us your requirement, we can send you the right products information and related products.
