Quick Details
-
Keyword:
-
Prefab Modern Homes
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Size:
-
20FT/40FT Customized
-
Structure:
-
Steel Luxury Container House
-
Usage:
-
Family House
-
Door:
-
Steel Door
-
Window:
-
Aluminum Window
-
Floor:
-
MGO Board
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongtai
-

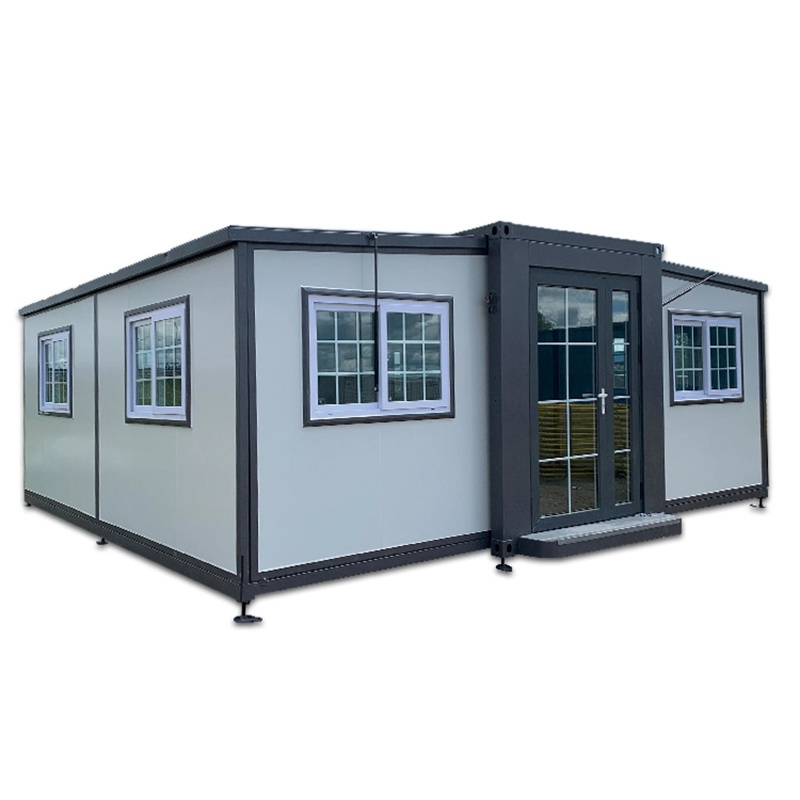

Product name:
-
Prefab House Home
-
Keyword:
-
Prefab Modern Homes
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Size:
-
20FT/40FT Customized
-
Structure:
-
Steel Luxury Container House
-
Usage:
-
Family House
-
Door:
-
Steel Door
-
Window:
-
Aluminum Window
-
Floor:
-
MGO Board
Product Description
Product details
|
High-end box configuration table
|
|
|
|
|||
|
Name
|
Branch name
|
illustrate
|
|
|||
|
standard container
|
outside dimensions
|
Length x width x height (mm): 6055 x 2990 x 2896
|
|
|||
|
|
Internal dimensions
|
Length x width x height（mm）：5845×2780×2510
|
|
|||
|
|
roof form
|
Flat roof with organized internal drainage
|
|
|||
|
|
layers
|
≤3 layers
|
|
|||
|
Design Parameters
|
Structural design period
|
15years
|
|
|||
|
|
ground live load
|
2.0KN/㎡
|
|
|||
|
|
roof live load
|
0.5KN/㎡
|
|
|||
|
|
wind load
|
0.6KN/㎡
|
|
|||
|
|
Seismic Fortification Intensity
|
8 degrees
|
|
|||
|
Structure
|
roof main beam
|
Galvanized cold-rolled section steel, t=2.5mm, galvanized 80g/㎡, material Q235B, specification: 170mm
|
|
|||
|
|
roof beam
|
Cold-formed thin-walled C-shaped steel, t=1.4mm, galvanized 50g/㎡, material Q235B, specification: C85mm×40(2)mm×10(2)mm
|
|
|||
|
|
ground main beam
|
Galvanized cold-rolled section steel, t=3.0mm, galvanized 80g/㎡, material Q235B, specification: 160mm
|
|
|||
|
|
ground secondary beam
|
Cold-formed thin-wall reinforced "Ji"-shaped steel, t=1.2mm, galvanized content 80g/㎡, material Q235B, specification: 105mm
|
|
|||
|
|
prism
|
Galvanized cold-rolled section steel, t=3.0mm, galvanized 80g/㎡, material Q235B, specification: 210mm×150mm
|
|
|||
|
|
paint
|
Graphene powder electrostatic spraying 80-100μm
|
|
|||
|
Roof
|
roof panel
|
0.35mm thick galvanized color steel plate, 360° bite, white gray color
|
|
|||
|
|
Insulation cotton
|
75mm thick glass wool felt with aluminum foil on one side, bulk density 14kg/m³, combustion performance is Class A non-combustible
|
|
|||
|
|
ceiling board
|
0.30mm thick color steel plate, V831 type
|
|
|||
|
Ground
|
decorative surface
|
1.6mm thick PVC floor glue
|
|
|||
|
|
Substrate
|
18mm cement board
|
|
|||
|
|
Bottom insulation
|
Optional (75mm thick glass wool felt with aluminum foil on one side, PE moisture-proof film, 0.25mm galvanized bottom skin)
|
|
|||
|
Wall
|
Thickness
|
75mm thick color steel glass silk sponge sandwich panel，Internal and external color steel plates 0.4mm thick
|
|
|||
|
|
Style
|
Orange peel pattern on the outside and flat plate on the inside, S-shaped interface without cold bridge
|
|
|||
|
|
Insulation
|
75mm thick glass wool, capacity≥55kg/m³,combustion performance is Class A non-combustible
|
|
|||
|
Door
|
Specification（mm）
|
Width×Height=840×2035
|
|
|||
|
|
Marterial
|
Steel door
|
|
|||
|
Window
|
Specification（mm）
|
Width×Height=1120×1100
|
|
|||
|
|
Frame material
|
Plastic steel,80series
|
|
|||
|
|
Supporting
|
Anti-theft fence,screen window
|
|
|||
|
|
Glass
|
4mm+8A+4mm insulating glass
|
|
|||
|
Electricity
|
Voltage
|
220V～250V
|
|
|||
|
|
Wire
|
The total power line of the household is 6 square meters, and the air conditioner socket line is 4 square meters. Ordinary socket
line 2.5 square, lighting switch line 1.5 square |
|
|||
|
|
Breaker
|
High section miniature circuit breaker
|
|
|||
|
|
Lamp
|
Double LED single tube fluorescent lamp,40w
|
|
|||
|
|
Socket
|
3 five-hole sockets 10A,1 three-hole conditioner socket 16A,1 single switch 10A
|
|
|||
