Quick Details
-
Lamp Luminous Flux(lm):
-
890
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
surled
-
Model Number:
-
Power Track
-
Feature 1:
-
LED Power track light rail
-
Feature 2:
-
led lighting installation system
-
Feature 3:
-
PC + Copper
-
Color:
-
Black , white , grey
-
Certification:
-
CE ROHS
-
Load current:
-
25A for TRACK01
-
Connector:
-
TRACK02 with 1m AGW#22 cable 4A
-
Power join:
-
TRACK03 with 2m VDE cable 8A
-
Warranty:
-
2 years
-
Length for TRACK01:
-
1M, 2m, 2.5m, 3m
Quick Details
-
Lamp Body Material:
-
Aluminum
-
LED Light Source:
-
smd
-
Input Voltage(V):
-
12V
-
Lamp Luminous Flux(lm):
-
890
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
surled
-
Model Number:
-
Power Track
-
Feature 1:
-
LED Power track light rail
-
Feature 2:
-
led lighting installation system
-
Feature 3:
-
PC + Copper
-
Color:
-
Black , white , grey
-
Certification:
-
CE ROHS
-
Load current:
-
25A for TRACK01
-
Connector:
-
TRACK02 with 1m AGW#22 cable 4A
-
Power join:
-
TRACK03 with 2m VDE cable 8A
-
Warranty:
-
2 years
-
Length for TRACK01:
-
1M, 2m, 2.5m, 3m
LED DC Power Track light rail Products 12V 24V
Power Track
There are 2 colors available for the shop fitting market shelf lighting power rail connectors.
Other color can be customized.

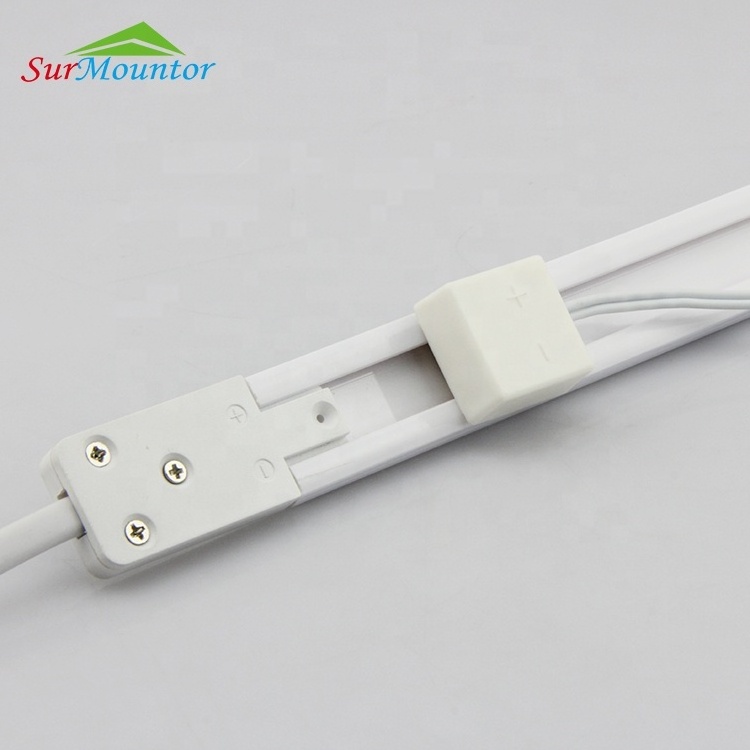

Part 1 : Mini Track TRACK01 -- LED DC Power Track light rail Products 12V 24V
1. Track includes two brass rods which are positive (+) and minus (-), 12v~ 24v
2. High adhesive tape attached on the back the track.
3. Rotate the small connector to attach it to the track. Quick power connector.
4. Good power input system suitable for glass showcase, metal shelf in the supermarket, cabinet and furniture.
5. One meter track can supply power to 50pcs connectors (LED strips).
Part 2 : Connectors with cable TRACK02 - LED DC Power Track light rail Products 12V 24V
> 1 , TRACK002 with 1 meter AGW# 22 cable, 4A,
> 2, TRACK002 with 1 meter VDE ( AGW# 18 ) cable, 8A,
Part 3 : Power connector TRACK003 -- LED DC Power Track light rail Products 12V 24V
TRACK003 power connector with 2 meters VDE cable, 8A
LED DC Power Track light rail Products 12V 24V-- Installation
LED DC Power Track light rail Products 12V 24V -- Application
LED DC Power Track light rail Products 12V 24V
TRACK001 : 130pcs per carton, 1m , 2m , 3m, custom length available.
TRACK002 : 500pcs per carton, 25.22KG.
TRACK003 : 250pcs per carton, 20KG
