Quick Details
-
Model Number:
-
W series
-
Name:
-
dry block well temperature calibrator well temperature calibrator
-
Key word 1:
-
dry block calibrator
-
Key word 2:
-
dry block
-
Key word 3:
-
temperature dry block
-
Key word 4:
-
dry block heater
Quick Details
-
Warranty:
-
1
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
W series
-
Name:
-
dry block well temperature calibrator well temperature calibrator
-
Key word 1:
-
dry block calibrator
-
Key word 2:
-
dry block
-
Key word 3:
-
temperature dry block
-
Key word 4:
-
dry block heater
Description dry block well temperature calibrator well temperature calibrator
The design principle of the dry well temperature calibration furnace is easy to carry, easy to use, easy and fast temperature calibration, widely used in machinery, chemicals, food, medicine and other industries.
F eatures dry block well temperature calibrator well temperature calibrator
1.Various types of insertion tubes can meet the test and calibration of different size and quantity sensors.
2.Can adjust the heating rate according to customer needs.
Specification dry block well temperature calibrator well temperature calibrator
|
Model |
W-150 |
W400 |
W600 |
W1000 |
W1200 |
|
Temperature range |
-20~150℃ |
50~400℃ |
50~600℃ |
300~1000℃ |
50~1200℃ |
|
Heating source |
Semiconductor refrigeration |
electric heating |
electric heating |
electric heating |
electric heating |
|
Accuracy |
0.2% |
0.2% |
0.2% |
0.2% |
0.2% |
|
Stability |
±0.04℃ |
±0.1℃ |
±0.1℃ |
±0.1℃ |
±0.1℃ |
|
Horizontal temperature field |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
≤±0.1℃ |
|
C onfiguration |
4 holes6, 8, 10mm, 12mm Others oem |
3 holes 8, 10, 12mm, o r 4 holes 2 6, 2 8mm Others oem |
4 holes, 6, 8, 10, 12mm Others oem |
||
|
Well depth |
160mm |
160mm |
160mm |
160mm |
160mm |
|
Power |
400w |
300w |
300w |
600w |
600w |
|
Power supply |
220v50hz |
220v50hz |
220v50hz |
220v50hz |
220v50hz |
|
SIZE |
385*185*325mm |
385*165*325mm |
385*165*325mm |
385*185*325mm |
385*185*325mm |
|
weight |
12KG |
6KG |
6KG |
11KG |
11KG |

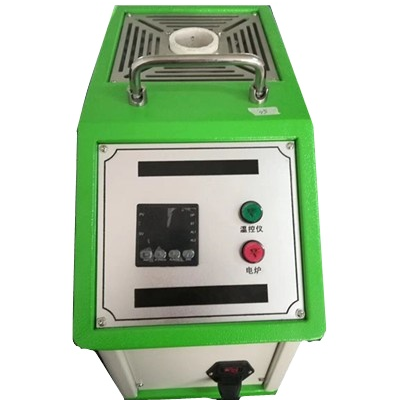

Detailed Images dry block well temperature calibrator well temperature calibrator
