Zirconia/ZrO2/ Zirconium oxide
is famous of its extremely density, extraodinary mechanical strength, wear and abrasive resistance, high toughness and low thermal conductivity and thermal expansion coefficient. We offer a selection of different grade material for producing zirconia ceramic tube, the typical one include yittria partial stabilized, magnesia stabilized zirconia. We are capable of producing variety of zirconia ceramic rod from small size to large size.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Zirconia Ceramic Tube
-
MOQ:
-
1
-
Density:
-
6 g/cm3
-
Hardness (HRA):
-
88-90
-
Compressive strength:
-
2500Mpa
-
Color:
-
White
Quick Details
-
Material:
-
Zirconia Ceramic
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
meetcera
-
Product name:
-
Zirconia Ceramic Tube
-
MOQ:
-
1
-
Density:
-
6 g/cm3
-
Hardness (HRA):
-
88-90
-
Compressive strength:
-
2500Mpa
-
Color:
-
White
Product Overview

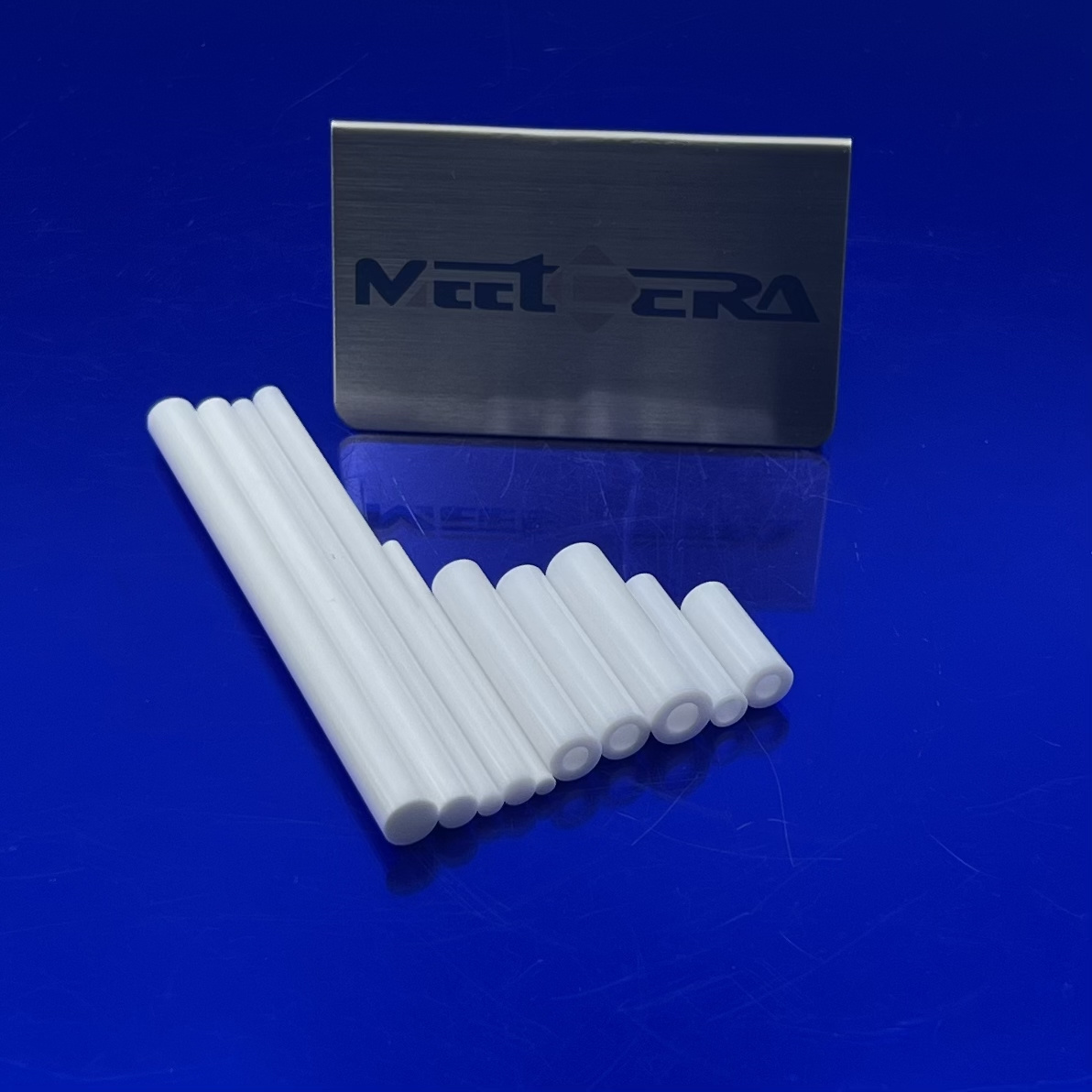

zirconia ceramic tube
Physical Properties
|
Zirconia Ceramic Properties
|
|
|
||
|
Item
|
Unit
|
Typical Values
|
||
|
Physical Properties
|
|
|
||
|
Colour
|
|
White
|
||
|
Density
|
g/cm³
|
>6
|
||
|
Zirconia Content
|
%
|
94.80%
|
||
|
Gas Permeability
|
|
0
|
||
|
Water Absorption
|
%
|
0%
|
||
|
Crystal Size
|
µm
|
0.5
|
||
|
Mechanical Properties
|
|
|
||
|
Rockwell Hardness(45N)
|
R45N
|
90
|
||
|
Vickers Strength(Load 500g)
|
Gpa(Kg/mm²)
|
11.5(1175)
|
||
|
Flexural Strength(20℃)
|
Mpa
|
1200
|
||
|
Compressive Strength(20℃)
|
Mpa
|
2100
|
||
|
Modulus of Elasticity(20℃)
|
Gpa
|
>200
|
||
|
Poisson's Ratio(20℃)
|
|
0.22-0.23
|
||
|
Fracture Toughness(20℃)
|
Mpam½
|
8
|
||
|
Thermal Properties
|
|
|
||
|
Thermal Conductivity(20℃-400℃)
|
W/ (m.K)
|
2.5
|
||
|
Thermal Expansion Coefficient
|
106 / ℃
|
10
|
||
|
Thermal Resistance
|
△T℃
|
250
|
||
Properties:
1. High Thermal Expansion
2. Excellent Thermal Insulation; low thermal conductivity
3. High resistance to crack propagation,high fracture toughness
4. Ability to conduct oxygen ions
5. Low thermal conductivity
2. Excellent Thermal Insulation; low thermal conductivity
3. High resistance to crack propagation,high fracture toughness
4. Ability to conduct oxygen ions
5. Low thermal conductivity
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
7) OEM, ODM and OBM are welcomed
Ceramic material composition:
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
· Silicon Carbide · Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
