Quick Details
-
Description:
-
520nm 1W laser TO-can, 520nm green laser diode
-
Type:
-
Laser Diode
-
Place of Origin:
-
Chongqing, China
-
Application:
-
Medcial or Testing Equipment
-
Cross Reference:
-
OCT-520-1000-TO5-02
-
Max. Forward Voltage:
-
5.3V
-
Max. Forward Current:
-
2A
-
Package / Case:
-
TO package
-
Center wavelength:
-
520nm
-
Output power:
-
1W
-
Threshold Current:
-
230mA
-
Operating Voltage:
-
4.6V
-
Perpendicular:
-
46
-
Parallel:
-
11
-
Slope Efficiency:
-
0.7W/A
-
Forward Current:
-
1.2A
Quick Details
-
Model Number:
-
OTC-520-XXXX-XX-X
-
Brand Name:
-
Senset
-
Mounting Type:
-
TO-can
-
Description:
-
520nm 1W laser TO-can, 520nm green laser diode
-
Type:
-
Laser Diode
-
Place of Origin:
-
Chongqing, China
-
Application:
-
Medcial or Testing Equipment
-
Cross Reference:
-
OCT-520-1000-TO5-02
-
Max. Forward Voltage:
-
5.3V
-
Max. Forward Current:
-
2A
-
Package / Case:
-
TO package
-
Center wavelength:
-
520nm
-
Output power:
-
1W
-
Threshold Current:
-
230mA
-
Operating Voltage:
-
4.6V
-
Perpendicular:
-
46
-
Parallel:
-
11
-
Slope Efficiency:
-
0.7W/A
-
Forward Current:
-
1.2A
Product Description
Product Detail

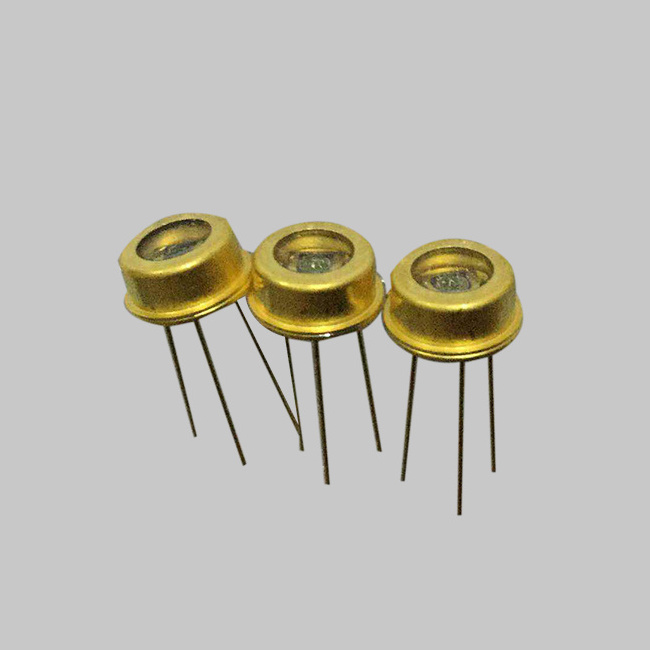

The 520nm laser 1W is in TO-5 package, which can be used for medical or testing equipment.
Optical&Electrical Characteristics
| Item | Symbol | Test Condition | Min | Typ | Max | Unit | |
| Optical Output Power | Po | lf=1.6A | 0.7 | 1.0 | - | W | |
| Dominant Wavelength*2 | λd | lf=1.6A | 515 | 520 | 525 | nm | |
| Threshold Current | Ith | CW Operation | 150 | 230 | 350 | mA | |
| Slope Efficiency | CW Operation | 0.5 | 0.7 | 1.2 | W/A | ||
| Operating Voltage | Vop | lf=1.6A | 4.0 | 4.6 | 5.3 | V | |
| Beam Divergence*3 | Parallel | θ// | lf=1.6A | 5 | 11 | 25 | |
| Perpendicular | θ⊥ | lf=1.6A | 35 | 46 | 55 | ||
| Beam Pointing Accuracy | Perpendicular | Δθ⊥ | lf=1.6A | 5.0 | 5.0 | ||
