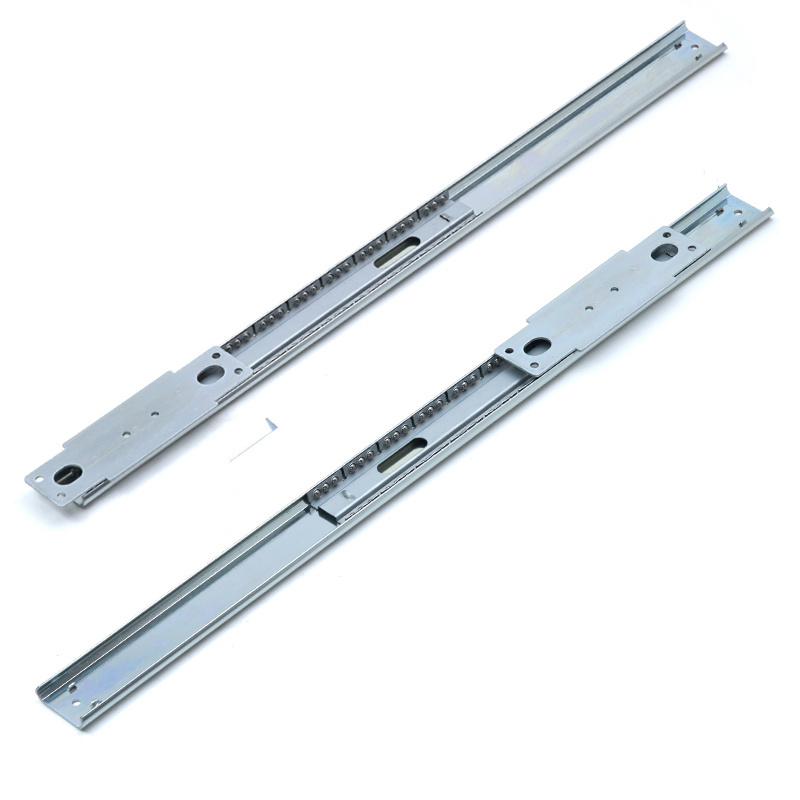

35mm Flipper Door Hardware Linear Motion Drawer Runners Non Hinging Pocket Door Drawer Slide Rail

35mm Flipper Door Hardware Linear Motion Drawer Runners Non Hinging Pocket Door Drawer Slide Rail

FOB Reference Price: Get Latest Price

≥50 Pieces

US $0.29

≥1500 Pieces

US $0.2

≥10000 Pieces

US $0.15

≥30000 Pieces

US $0.11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Cold Rolled Steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-35003

Usage:: TV or entertainment cabinet doors

PRODUCT NAME:: 35mm Linear Motion Slider Non Hinging Pocket Door Slide Rails

CLOSE lENGTH RANGE:: 250 -700mm

EXTENSION TRAVEL:: Single Extension

DRAWER SLIDE INSTALLATION CLEARANCE:: 12.7mm (Side Mount clearance )

DRAWER SLIDE CROSS-SECTION WIDTH:: 35mm

FINISH:: Clear Zinc Plated

SPECIAL FEATURES:: Side-mount/Flat-mount/Vertical-mount

DWAWER SLIDE MATERIAL THICKNESS:: 1.5 x 1.5 mm

LOADING RATE:: 15kgs / 33lbs

CYCLE TESTING:: 50000

Quick Details

Application:: Kitchen, Home Office, Bedroom, Hotel, Hospital, School, Appliances (APPLIANCE SOLUTIONS, Architectural & Design, Automotive, MEDICAL & HEALTHCARE, Woodworking & Cabinetry, entertainment cabinet doors, TV cabinet doors, home cabinet doors, entertainment media centers and armoires, business office furniture, home office furniture

Design Style:: Modern

Type:: Side-mount/Flat-mount/Vertical-mount

Material:: Cold Rolled Steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-35003

Usage:: TV or entertainment cabinet doors

PRODUCT NAME:: 35mm Linear Motion Slider Non Hinging Pocket Door Slide Rails

CLOSE lENGTH RANGE:: 250 -700mm

EXTENSION TRAVEL:: Single Extension

DRAWER SLIDE INSTALLATION CLEARANCE:: 12.7mm (Side Mount clearance )

DRAWER SLIDE CROSS-SECTION WIDTH:: 35mm

FINISH:: Clear Zinc Plated

SPECIAL FEATURES:: Side-mount/Flat-mount/Vertical-mount

DWAWER SLIDE MATERIAL THICKNESS:: 1.5 x 1.5 mm

LOADING RATE:: 15kgs / 33lbs

CYCLE TESTING:: 50000

Specification

35mm Profile Single Extension Flipper Pocket Door SLider Rieles - Flipper Door Hardware Linear Motion Slider Non Hinging Pocket Door Slides

Best suited for TV or entertainment cabinet doors and other home cabinet doors

* Mounting Type: Side-mount/Flat-mount/Vertical-mount
* Load Capacity: 33 lbs.

* Level of Travel: Single-Extension
* Method of Disconnect: Non -Disconnect
* Available Finish: Clear Zinc , Black Zinc, and White Electrocoat
* Available Lengths: 250mm 700mm (Custom-Made)

Available For Custom-Made :

1. Pocket & Bayonet Mounting Drawer Slider 2. Interlock Telescopic Slide Rieles 3. Soft Close Correderas Telescopicas 4. Self Closing Furniture Sliders 5. Push-to-Open Correderas Telescopicas

Product Name	35mm Flipper Door Hardware Linear Motion Slider Non Hinging Pocket Door Slides
Item No.	WLT-35003
Extension	Single Extension
Drawer Slide Section Steel Thickness	1.5 x 1.5 mm
Load Rate	15kgs / 33 lbs
Finish	Clear Zinc, Black Electric Dipping as an option
Features	Side-mount/Flat-mount/Vertical-mount (Produced by high-precision imported roll forming machines)
Application	TV or entertainment cabinet doors. business and home office furniture, as well as entertainment/media centers and armoires

Packing ＆ Shipping

Factory Direct Supply Pocket Door Cabinet Hardware 35mm Tv Cabinet Single Extension Pocket Door Slide Rail

As usually, one sets drawer runner will be packed in a PE bag, 20 pairs a carton packing.

-Make sure the quality of goods and packaging is good enough- Confirm the quantity is the same as order required
- Approve the stacking method is safe and proper.
- Take photos for emty container, 20% cargo loaded , 50% cargo loaded , 80% cargo loaded & fully loaded.
