Quick Details
-
Brand Name:
-
ELESTAR
-
Model Number:
-
AUTOMH
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.5-1HP
-
Cable Length:
-
1.5 meters with no plug, customized
-
Outlet Size:
-
1"*1"
-
Theory:
-
Centrifugal Pump
-
Pump body:
-
Stainless Steel
-
Impeller:
-
Brass/Techno-polymer(P.P.O)/Stainless steel
-
Mechanical Seal:
-
Carbon/Ceramic/Stainless steel
-
Motor Housing:
-
Aluminum
-
Shaft:
-
Stainless Steel
-
Insulation:
-
Class B/Class F
-
Protection:
-
IP44/IP54
-
S.head:
-
9m
-
HS code:
-
8413190000
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, Raw Water Intake, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
220V-240V
-
Brand Name:
-
ELESTAR
-
Model Number:
-
AUTOMH
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.5-1HP
-
Cable Length:
-
1.5 meters with no plug, customized
-
Outlet Size:
-
1"*1"
-
Theory:
-
Centrifugal Pump
-
Pump body:
-
Stainless Steel
-
Impeller:
-
Brass/Techno-polymer(P.P.O)/Stainless steel
-
Mechanical Seal:
-
Carbon/Ceramic/Stainless steel
-
Motor Housing:
-
Aluminum
-
Shaft:
-
Stainless Steel
-
Insulation:
-
Class B/Class F
-
Protection:
-
IP44/IP54
-
S.head:
-
9m
-
HS code:
-
8413190000

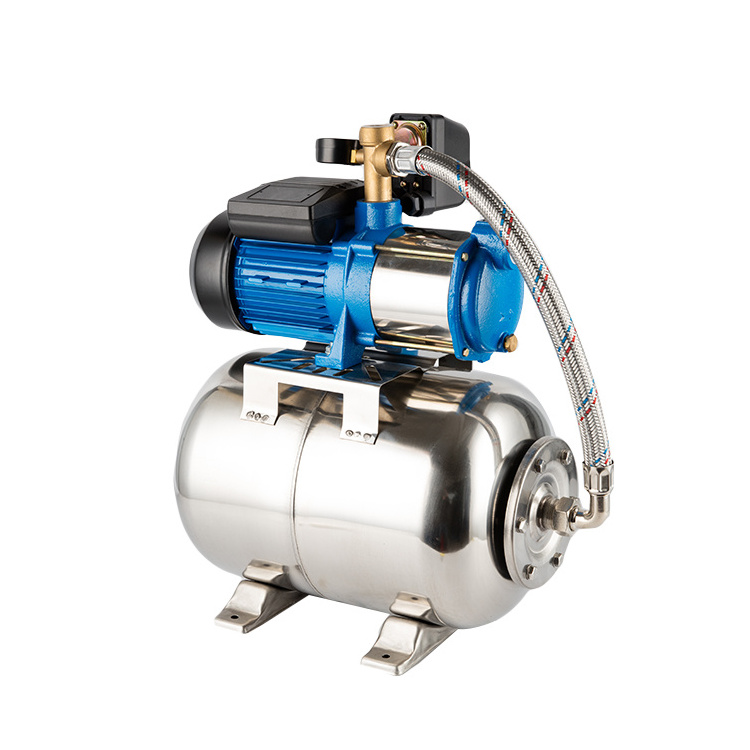

AUTOMH Series Multi Stage Surface Pump Automatic Boosting System Water Circulation Pump
The automatic booster systems consist of a JET water pump, peripheral pump of centrifugal pump, with a pressure tank, an airtight pressure switch, a pressure gauge and connecting flexible pipe.Make the pump automatic, thus to apply more convenient.
The pressure tank equipped with a non-toxic rubber membrane, has been pre-filled with air pressure of approx 0.12MPa before leaving the workshop.
These systems give suitable mains water pressure as required by modern domestic applications and industrial applications, and will ensure enough water supply all user outlets. Most of the pumps included in our range of products can actually be used to form automatic booster systems.
Accessory
Tank: 24L
Flexible hose: 1 ” *1 ”
Pressure switch: SK-6
Pressure gauge: 7bar(100PSI)
Brass Connector: 5way
Cable: 1.5 meters
